IAS10EFM1:1RHA.500B.500 Insert-A-Shaft Mini E-Series Gearbox  NEW!


Attributes | Quote | Downloads | Suggestions | Related IAS10EFM1:1RHA.500B.500

4301-0102

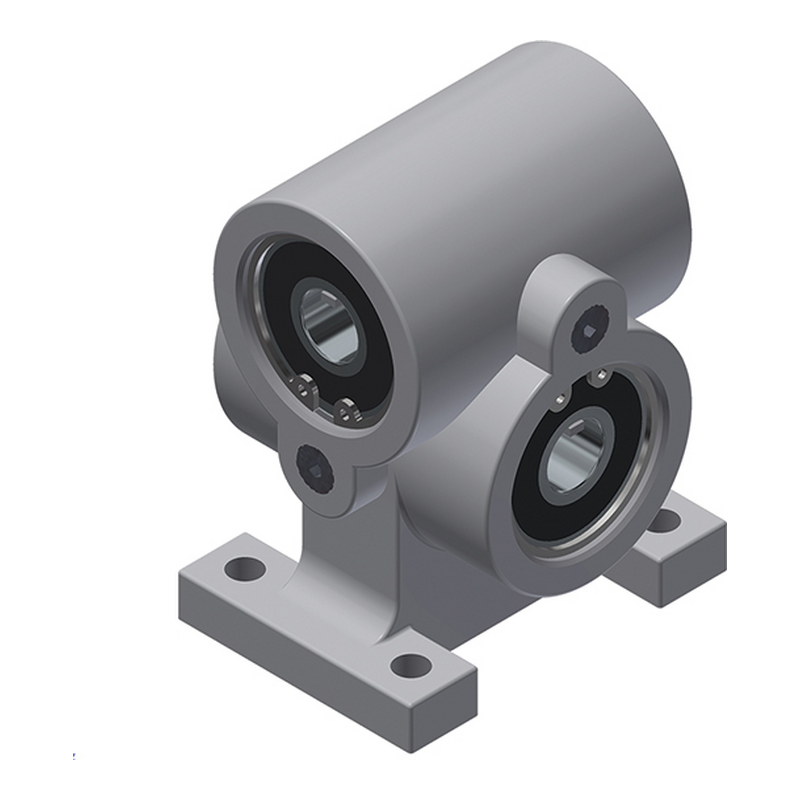

Insert-A-Shaft® E-Series 10 Mini Right Angle Gearbox, 1:1 Ratio, Foot Mount, Right Hand Rotation, 'A' Bore .500 in. x 'B' Bore .500 in.



Attributes


Ratio 1:1
Rotation Right Hand
'A' Bore (in.) .500
'B' Bore (in.) .500
Max RPM 1800
Max Hand Torque 132 in. lb.
Bore Center Dist., in. 1.0
Mounting Type Foot
Mounting .266" Dia. Thru (4)
Key Size 1/8 x 1/16

Add to Quote

You must be logged in to add this product to a quote.

Get A Quick Quote

Downloads


Dimension View (1.67MB JPG)
Dimension Drawing (389KB PDF)
STEP CAD File (643KB STP)

May We Also Suggest...

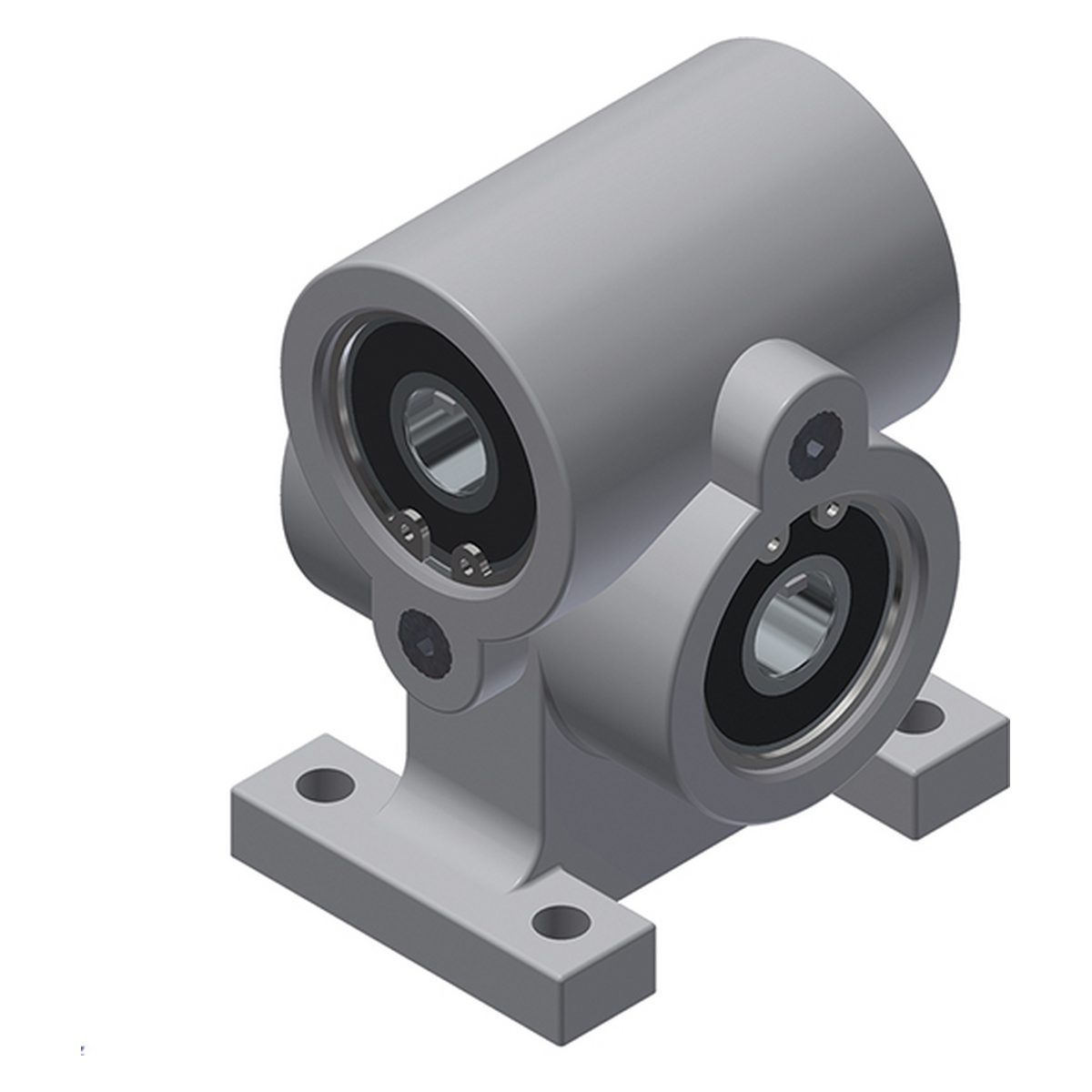

IAS10EFM1:1LHA.500B.500
IAS10EFM1:1LHA.500B.500
in Insert-A-Shaft Series 10 Mini
in Gearboxes, Right Angle
Product Number Product Name Ratio Rotation 'A' Bore (in.) 'B' Bore (in.)
4301-0100 IAS10EFM1:1RHA.625B.625 1:1 Right Hand .625 .625
4301-0101 IAS10EFM1:1LHA.625B.625 1:1 Left Hand .625 .625
4301-0103 IAS10EFM1:1LHA.500B.500 1:1 Left Hand .500 .500
4301-0104 IAS10EFM1:1RHA.500B.625 1:1 Right Hand .500 .625
4301-0105 IAS10EFM1:1LHA.500B.625 1:1 Left Hand .500 .625
