PSA044RSB
Attributes |
Quote
| Options
| Related

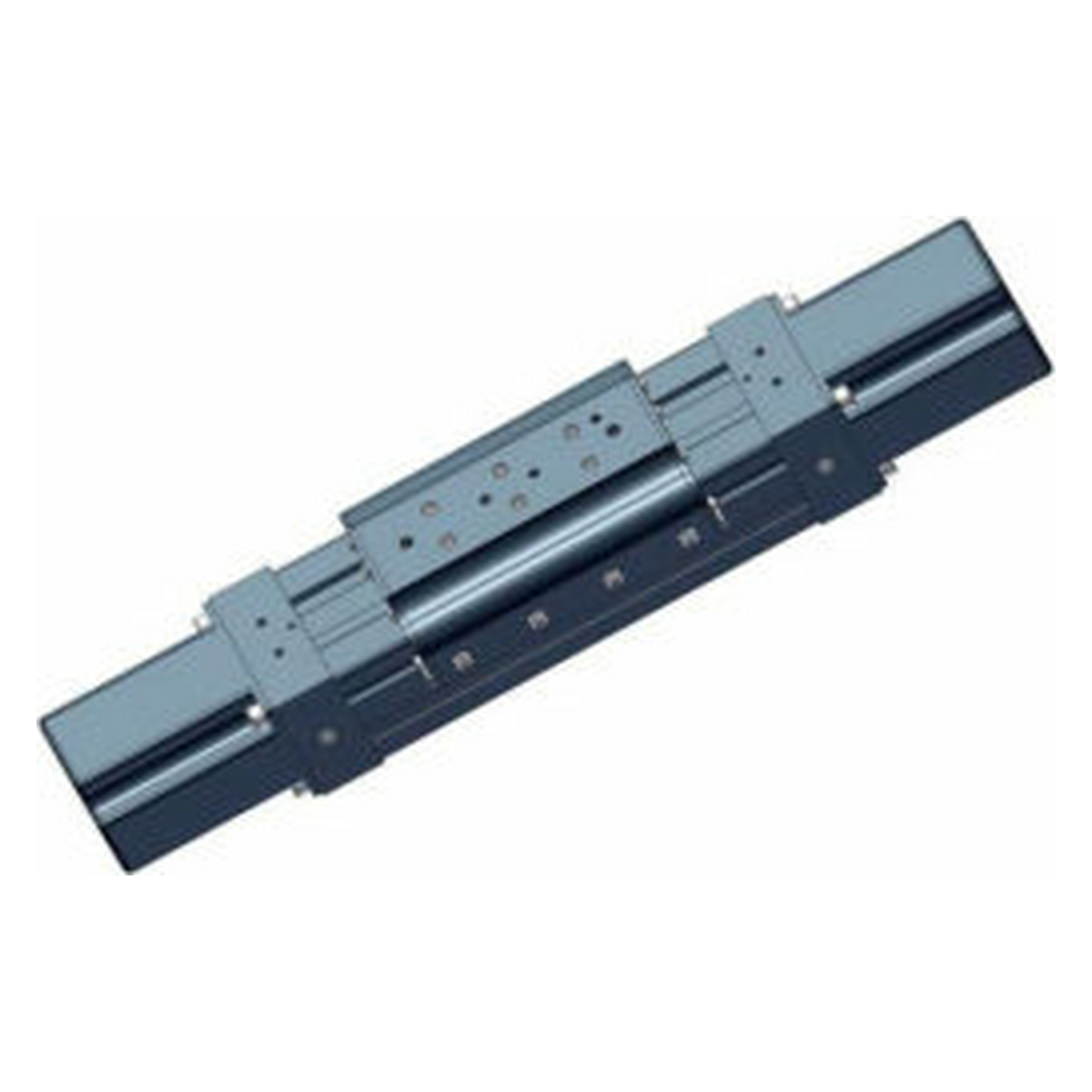

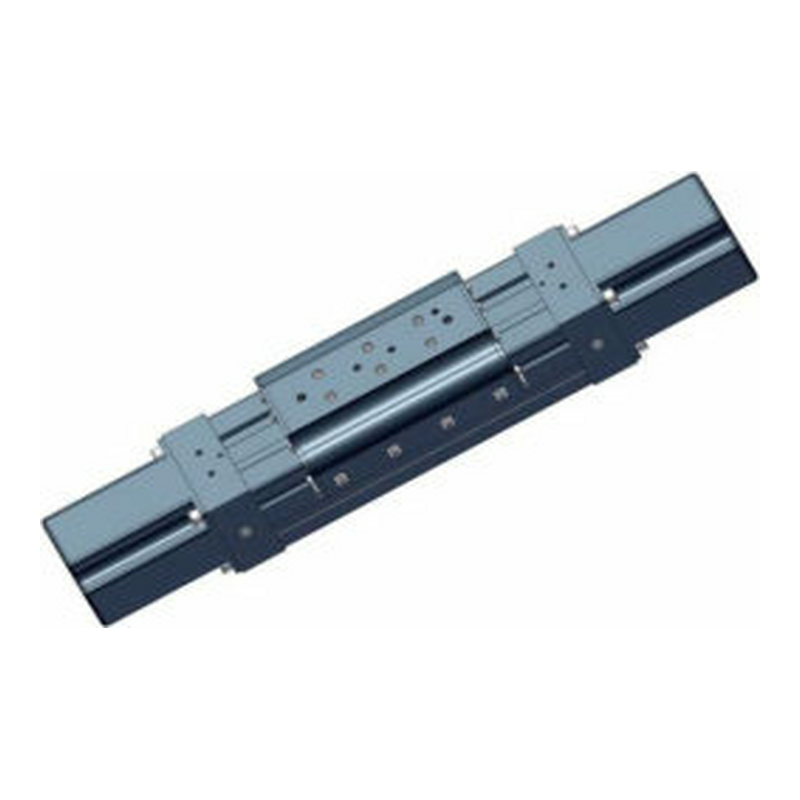

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.75 in. (44mm) bore.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- Foot mounts
- Nylatron® GS guide bearings - ideal for improved load bearing capability
Attributes
| Bore, in. |
1.75 |
| Option(s) |
Switches N.C. |
| Force@100 PSI, lbs. |
240 |
| Eff. Area, in.2 |
2.40 |
| Max. Stroke Length*, in. |
158 |
| Load, lbs. |
180 |
| Ms Radial Load, in. lbs. |
275 |
| M Long. Load, in. lbs. |
500 |
| Mv Axial Load, in. lbs. |
200 |
| Approx. Weight |
Base 9 lbs. + .55 lbs./in./Stk |
Add to Quote
You must be logged in to add this product to a quote.
Options
Consult with our qualified personnel about your application. W.C. Branham manufactures pneU-SA® cylinders since 1994.
| Product Number |
Product Name |
Bore, in. |
Option(s) |
Force@100 PSI, lbs. |
Eff. Area, in.2 |
| 1895-0011 |
PSA044 |
1.75 |
None |
240 |
2.40 |
| 1895-0012 |
PSA044RSA |
1.75 |
Switches N.O. |
240 |
2.40 |
| 1895-0013 |
PSA044TS |
1.75 |
Tube Supports |
240 |
2.40 |
| 1895-0020 |
PSA044RSAPV |
1.75 |
Switches N.O., Pivot Bridge |
240 |
2.40 |
| 1895-0021 |
PSA044PV |
1.75 |
Pivot Bridge |
240 |
2.40 |
| 1895-0031 |
PSA044RSATS |
1.75 |
Switches N.O., Tube Supports |
240 |
2.40 |
|
|
