1401-0058
Model: 1401SAM

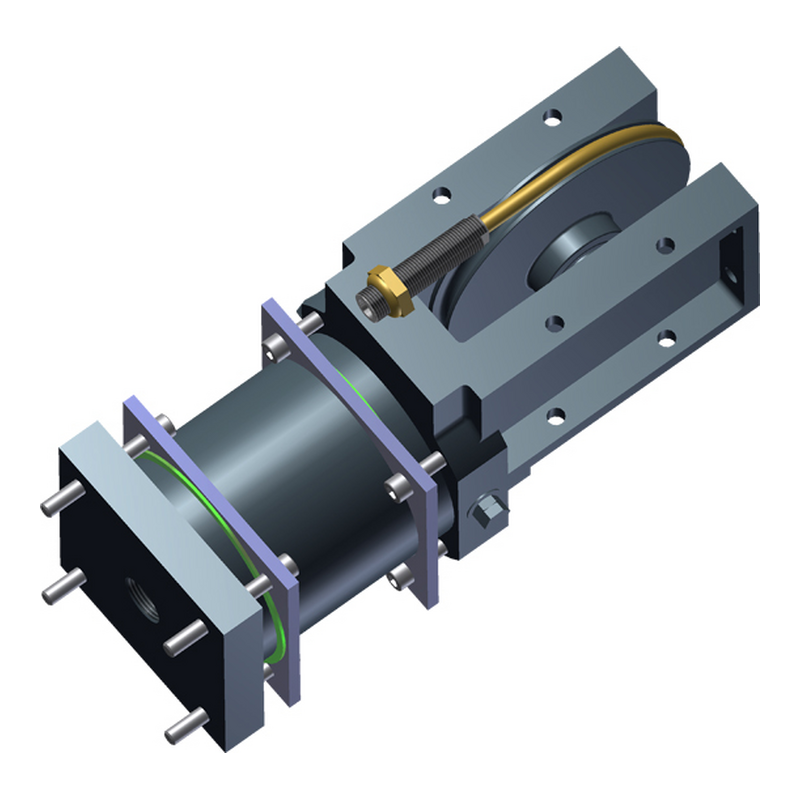

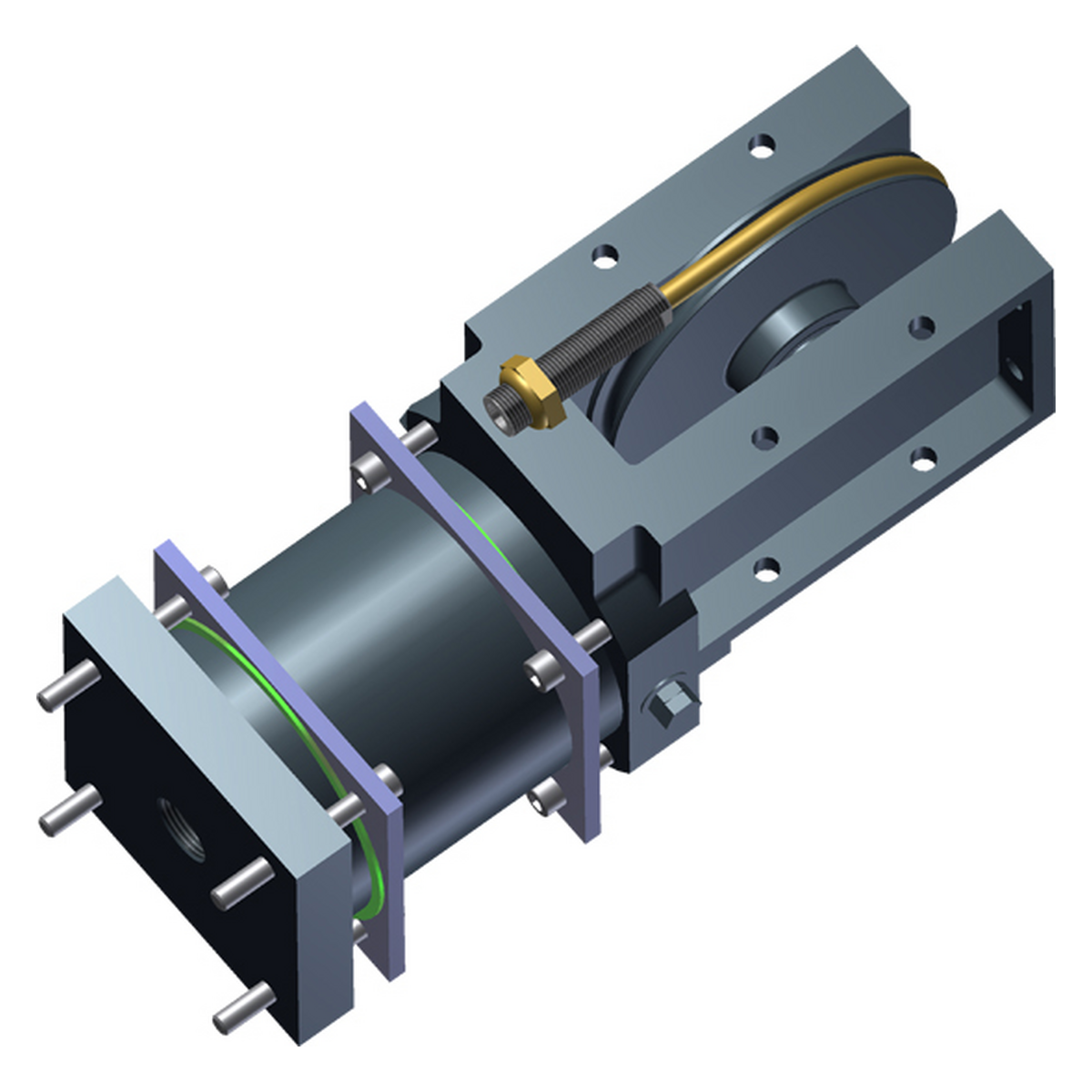

Single Acting Cable Cylinder with power stroke in one direction, 4.0 inch bore.
Operating temperature range: 20º to 140º F.
Attributes
| Model # | 1401SAM |
| 20% Rule, lbs. | 840 |
| Bore, in. | 4.0 |
| Cable Nylon O.D., in. | 5/16 |
| Cable Wire Dia., in. | 3/16 |
| Eff. Area, in.sq | 12.49 |
| Force@100 PSI, lbs. | 1249 |
| Max. Stroke Length, in. | 84 |
| Option(s) | Piston Magnet |
| Strand Config | 7 x 19 |
| Tensile Strength, lbs. | 4200 |
