1892-0061
Model: PSAN032FMRSB

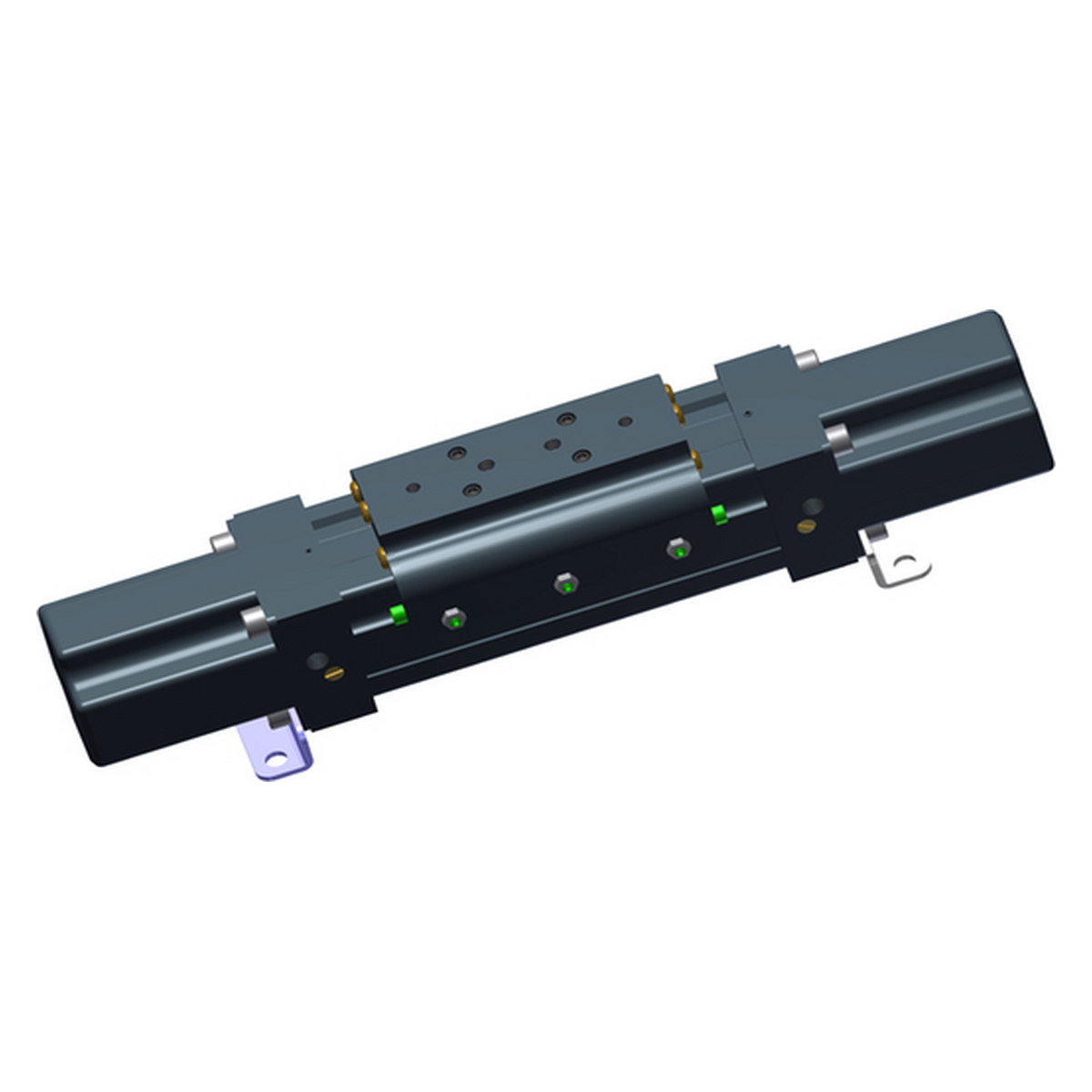

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.25 in. (32mm) bore.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- Foot mounts
- Nylatron® GS guide bearings - ideal for improved load bearing capability
Attributes
| Model # | PSAN032FMRSB |
| Approx. Weight | Base 6 lbs. + .35 lbs./in./Stk |
| Bore, in. | 1.25 |
| Eff. Area, in.sq | 1.26 |
| Force@100 PSI, lbs. | 126 |
| Load, lbs. | 120 |
| M Long. Load, in. lbs. | 290 |
| Max. Stroke Length, in. | 158 |
| Ms Radial Load, in. lbs. | 75 |
| Mv Axial Load, in. lbs. | 130 |
| Option(s) | Switches N.C. |
