1206SARS
Attributes |
Quote
| Options
| Related

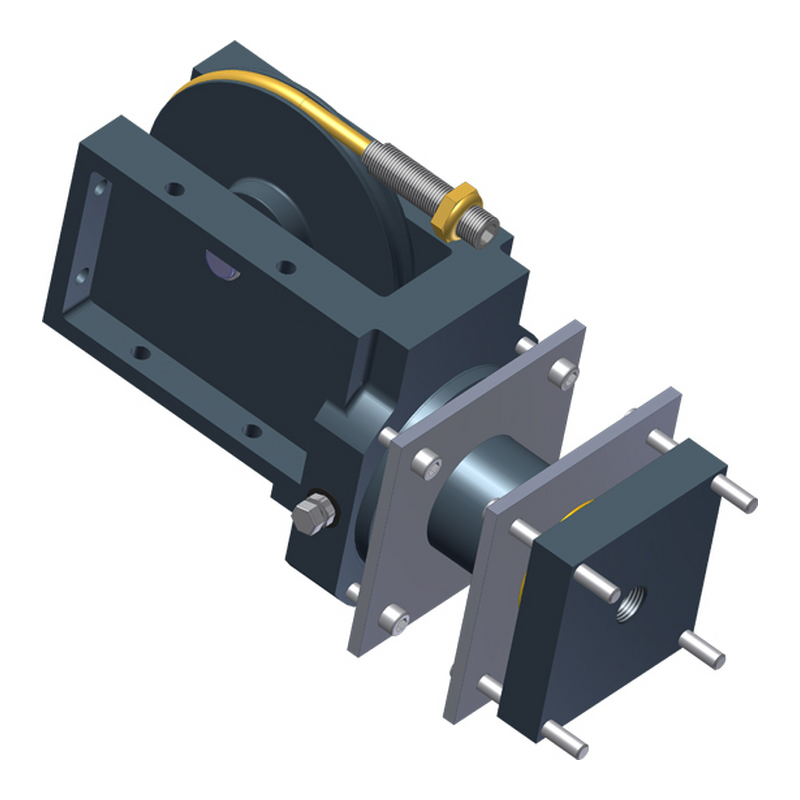

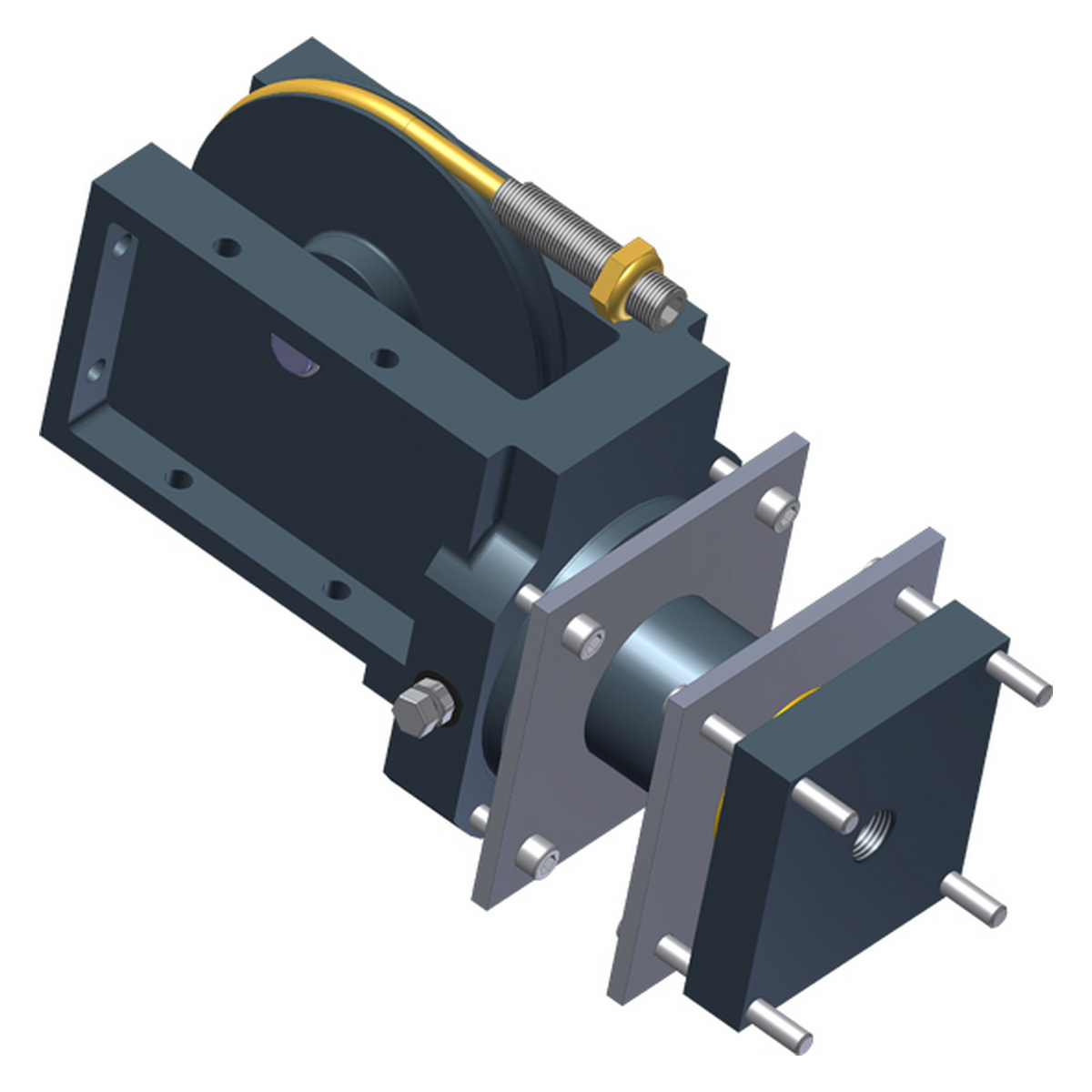

Single Acting Cable Cylinder with power stroke in one direction, 2.0 inch bore heavy duty.
Operating temperature range: 20º to 140º F.
Attributes
| Bore, in. |
2.0 |
| Option(s) |
500 PSI, Reed Switches |
| Force@100 PSI, lbs. |
309 |
| Eff. Area, in.2 |
3.09 |
| Max. Stroke Length*, in. |
280 |
| Cable Wire Dia., in. |
3/16 |
| Cable Nylon O.D., in. |
5/16 |
| Strand Config |
7 x 19 |
| Tensile Strength, lbs. |
4200 |
| 20% Rule, lbs. |
840 |
Add to Quote
You must be logged in to add this product to a quote.
Options
*Stroke lengths greater than maximum shown are possible. Consult with our qualified personnel about your application.
| Product Number |
Product Name |
Bore, in. |
Option(s) |
Force@100 PSI, lbs. |
Eff. Area, in.2 |
| 1206-0013 |
1206SAM |
2.0 |
500 PSI, Piston Magnet |
309 |
3.09 |
| 1206-0016 |
1206SA |
2.0 |
500 PSI Heavy Duty |
309 |
3.09 |
|
|
