Linear Tension Cable Air Cylinders
Linear Tension Cable (LTC) Cylinders from W.C. Branham Inc. provide direct linear tension/counter balance available in cylinder bore sizes of 1, 1.5, 2, 2.5, 3.0, 4.0 and 5.0 inches.
W.C. Branham has been manufacturing cable cylinders since 1981. These LTC Cylinders are a great tension tool for short strokes and make a perfect alternative to pneumatic rod-type cylinders. That means low cost without sacrificing quality.

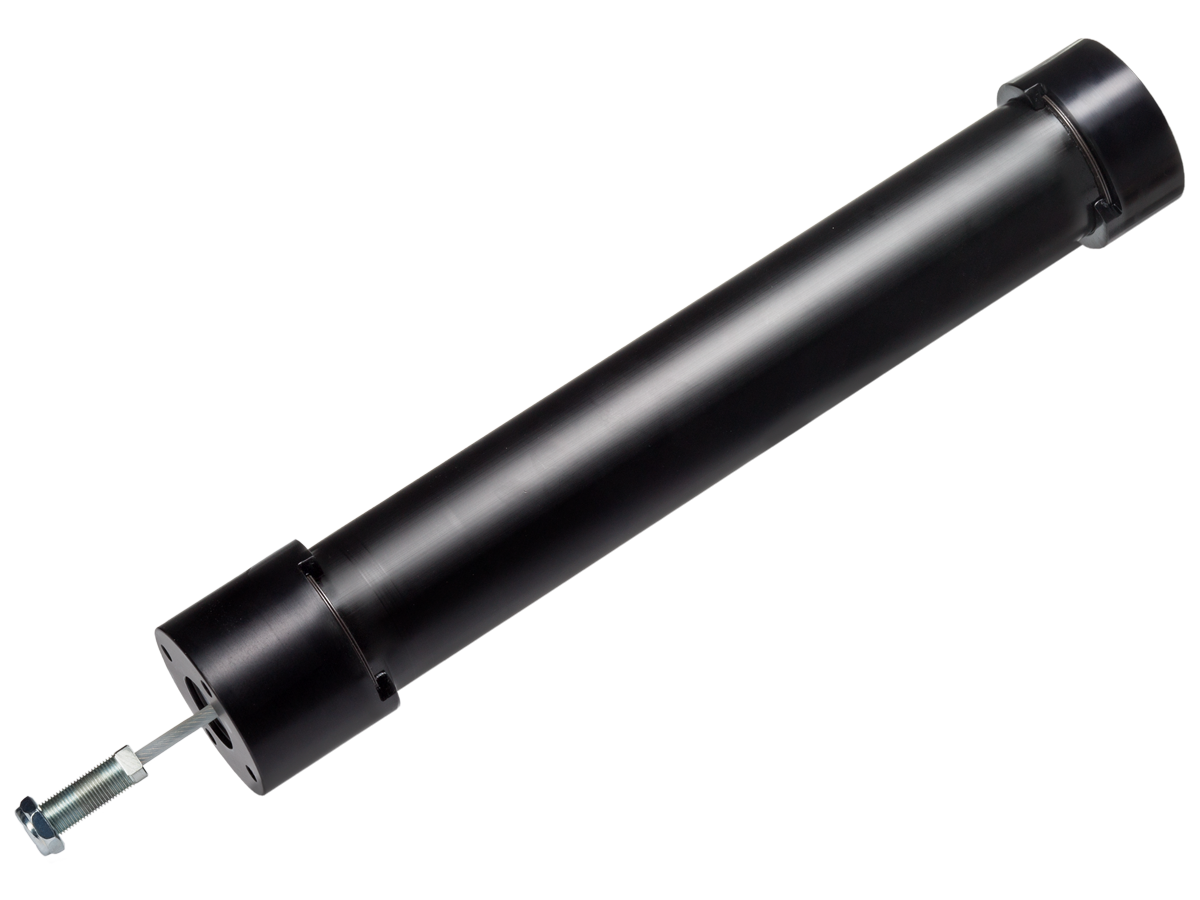

Click image to enlarge
Linear Tension Cable Cylinders
| Product # | Model # | Bore, in. | Eff. Area, in.sq | Force@100 PSI, lbs. | Options(s) | |
|---|---|---|---|---|---|---|
| 1101-0048 | LTC1101 | 1.0 | .78 | 78 | None | |
| 1151-0068 | LTC1151 | 1.5 | 1.74 | 174 | None | |
| 1203-0035 | LTC1203 | 2.0 | 3.09 | 309 | None | |
| 1251-0046 | LTC1251 | 2.5 | 4.86 | 486 | None | |
| 1301-0049 | LTC1301 | 3.0 | 6.99 | 699 | None | |
| 1401-0080 | LTC1401 | 4.0 | 12.49 | 1249 | None | |
| 1501-0040 | LTC1501 | 5.0 | 19.20 | 1920 | None |
