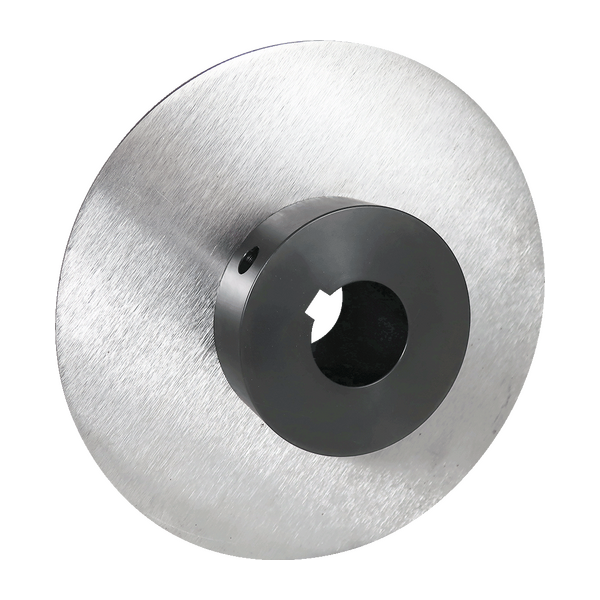

Brake Disc and Hub Assemblies

6 5/16, 8, 10, 12 inch Diameters x 5/32 inch thickness. 16 inch Diameter x 1/4 inch thickness.

Use with W.C. Branham 38, 47, 200 & 400 Series Caliper Disc Brakes | Machined Discs with Bolt Circle Pattern and Pilot Hole | Blank Discs Make to Suit Your Custom Design | Wide Selection of Hubs for Each Disc Diameter

Specifications:

  • 1010 carbon steel
  • Stress relieved
  • Flat to .020 inch
  • Blanchard ground
  • 80 RMS finish
