Branham Worm Gear Series 4 - 10:1 and 20:1 Ratio

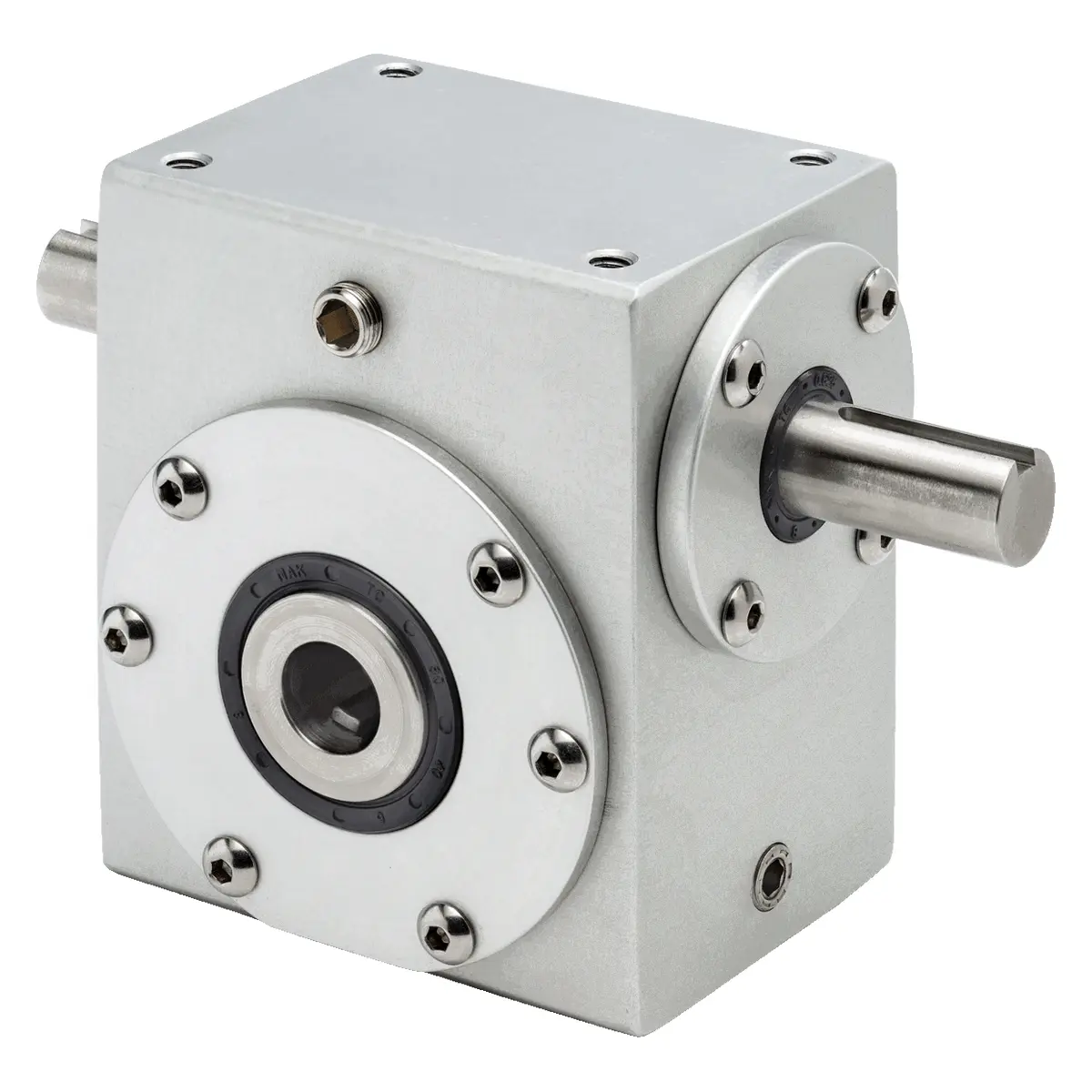

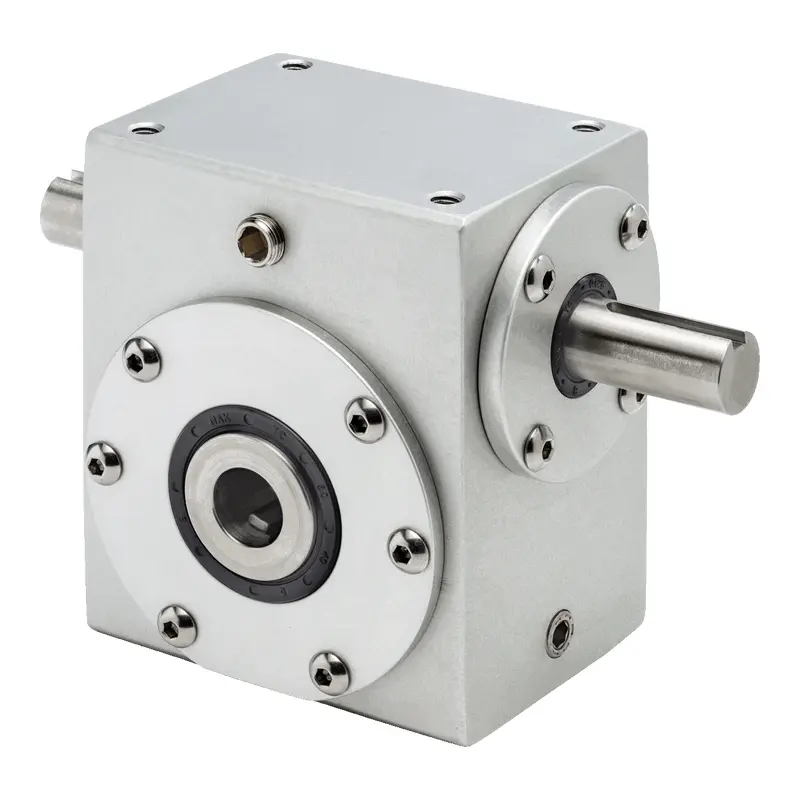

Three model configurations of BWG Series 4 Right Angle Worm Gearboxes include: Hollow Bore, Single Shaft; Hollow Bores Only; and Hollow Bore, Double Shafts - all in 10:1 and 20:1 ratios. Select models with .625-inch diameter shaft x .625, .750, 1.00-inch diameter hollow bores. Each model is designed around a 1.333-inch center distance.

All models are constructed with double sealed, heavy duty ball bearings and case-hardened worm gears.

  • 1800 RPM
  • 624 in. lb. Maximum Torque
Click image to enlarge

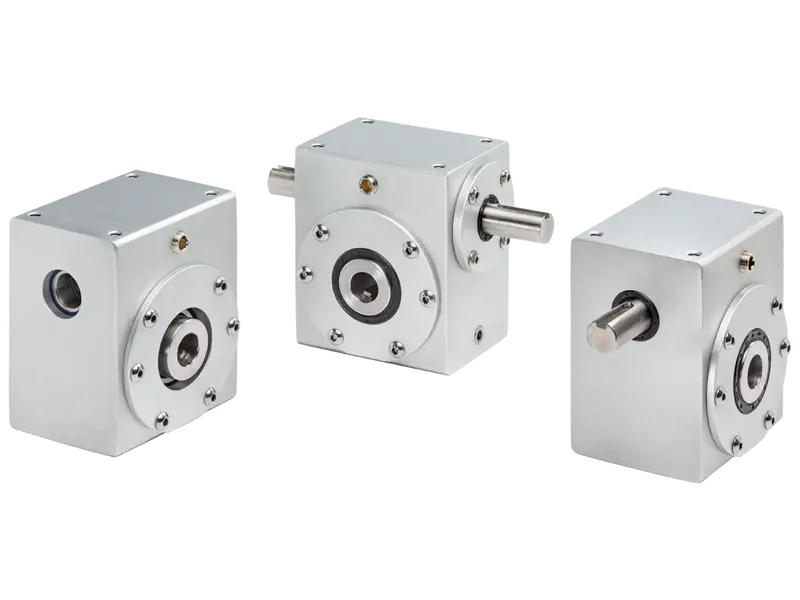

Three model configurations of Branham Series 4 Right Angle Worm Gearboxes

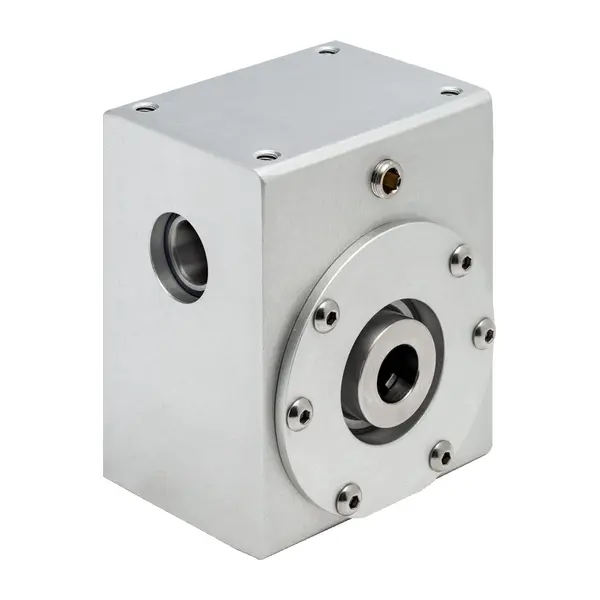

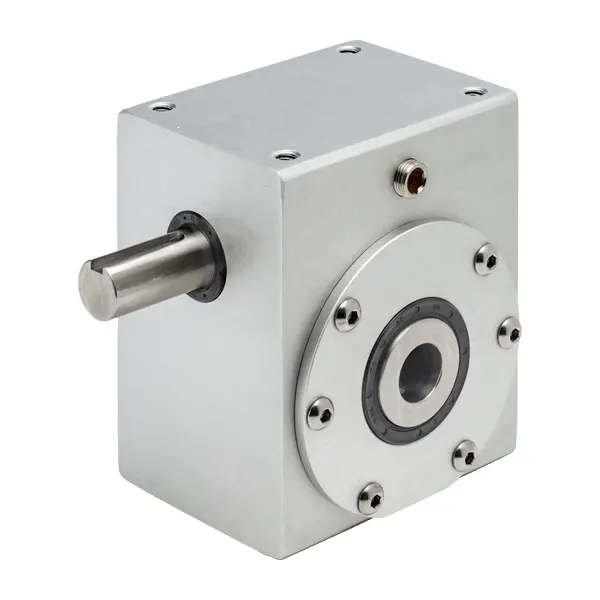

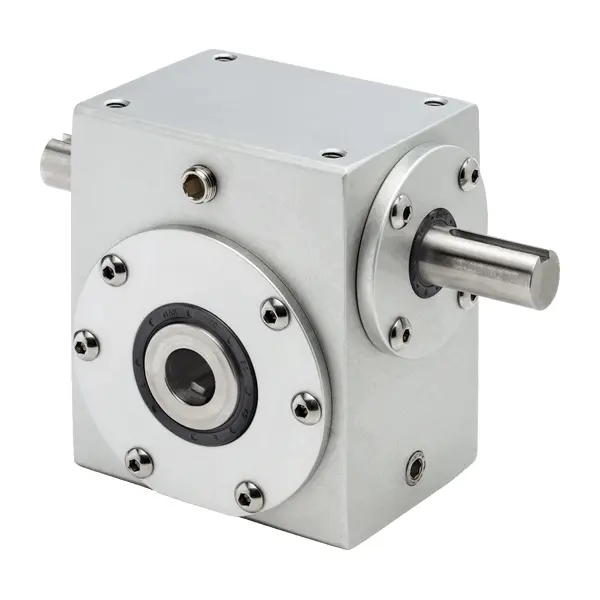

Hollow Bores Only, Hollow Bore Single Shaft; and Hollow Bore Double Shafts - all in 10:1 and 20:1 ratio. Select models with .625-inch diameter shaft x .625, .750, 1.00-inch diameter hollow bores. Each model is designed around a 1.333-inch center distance.

Example, WG4HBS1/20:1A.625B1.00 Worm Gearbox, Worm Gear Series 4 Hollow Bore, Single Shaft Right Angle Gearbox, 20:1 Ratio, Side Base Mounting, 'A' Bore .625 in. shaft x 'B' Hollow Bore 1.00 in
