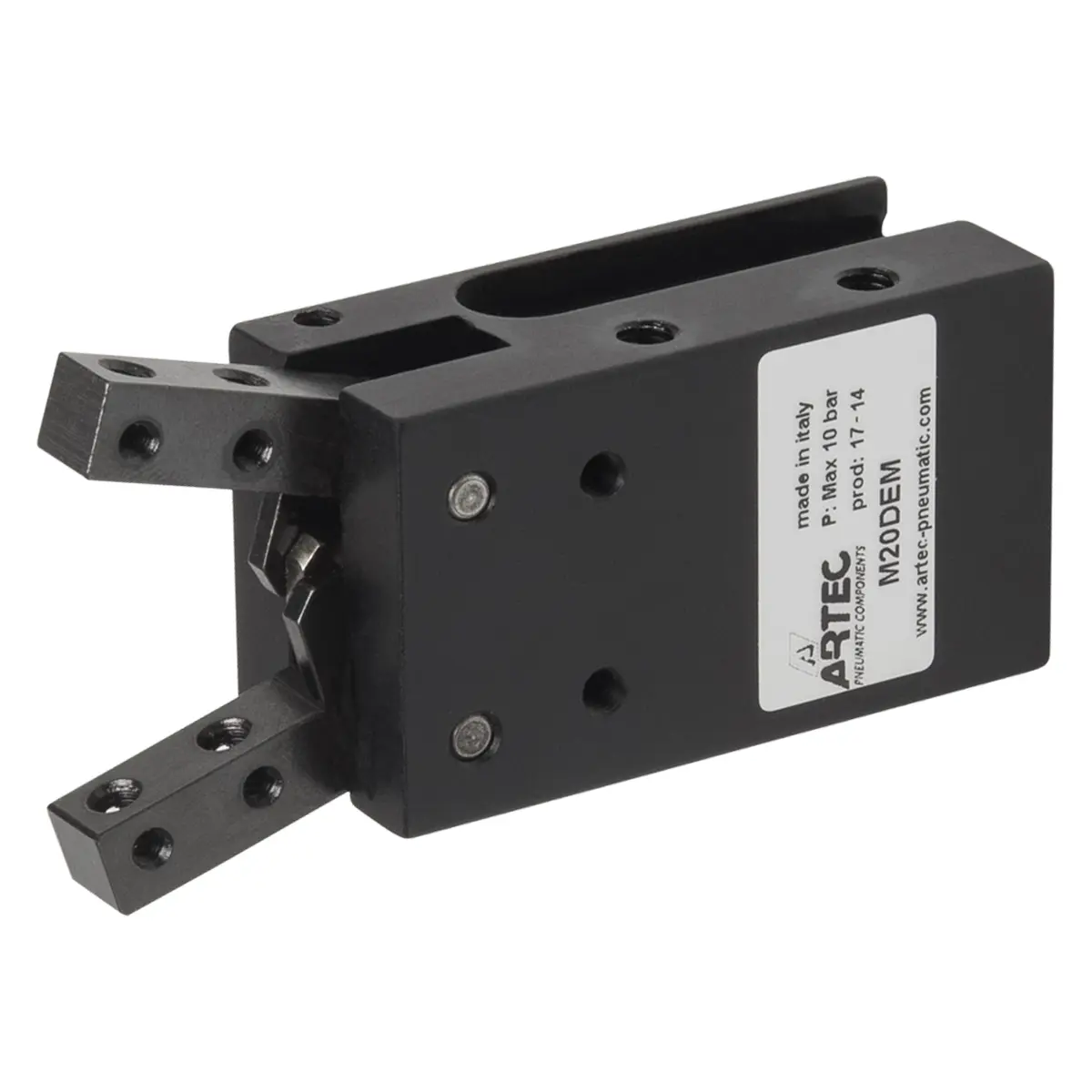

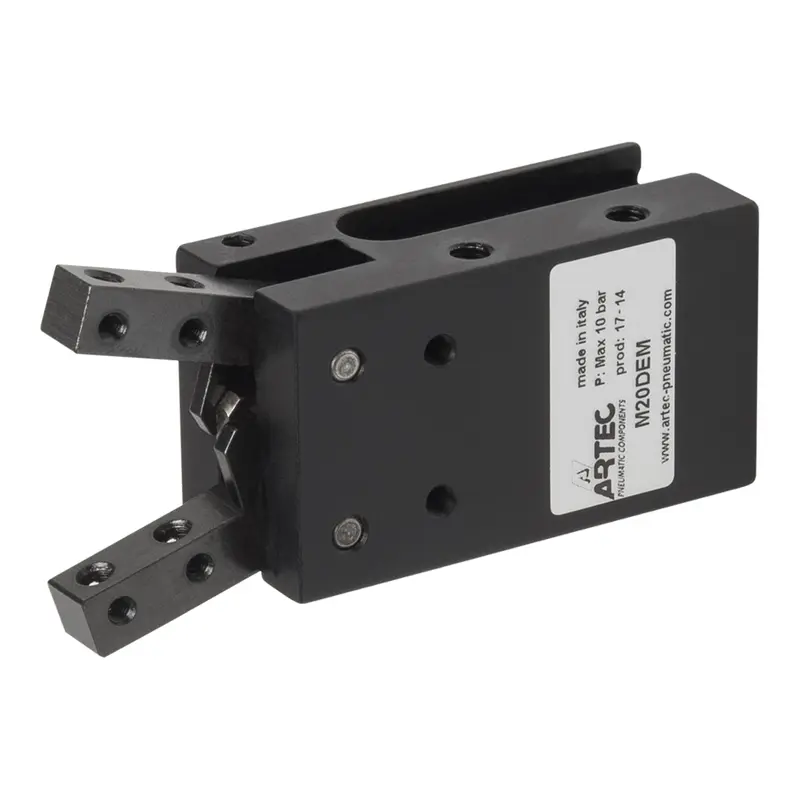

ARTEC® Pneumatic Angular Grippers
Since 1982, Artec Pneumatic has been supporting companies in the industrial automation sector by designing and manufacturing pneumatic cylinders, both standard and stainless steel. High quality cylinders inside and out.
Click image to enlarge

M16 - 16mm Bore
Product # | Actuation | Angle, Deg. (Closed) | Angle, Deg. (Open) | Locking Force, Kg. | Magnet | Port Size | Working Pressure, Bar | |
---|---|---|---|---|---|---|---|---|
M16NA | Normally Open, Rear Spring | 6 | 19 | 4 | No | M5 | 2.5 - 10 |
$178.60
|
M16NAM | Normally Open Magnetic, Rear Spring | 6 | 19 | 4 | Yes | M5 | 2.5 - 10 |
$208.72
|
M16NC | Normally Close, Front Spring | 6 | 19 | 5.2 | No | M5 | 2.5 - 10 |
$178.60
|
M16NCM | Normally Closed Magnetic, Front Spring | 6 | 19 | 5.2 | Yes | M5 | 2.5 - 10 |
$208.72
|
M16DE | Double Acting | 6 | 19 | 5.5 - 6.5 | No | M5 | 1.5 - 10 |
$178.60
|
M16DEM | Double Acting Magnetic | 6 | 19 | 5.5 - 6.5 | Yes | M5 | 1.5 - 10 |
$208.72
|
M16DEP | Double Acting with Rear Pin | 6 | 19 | 5.5 - 6.5 | No | M5 | 1.5 - 10 |
$201.20
|
M20 - 20mm Bore
Product # | Actuation | Angle, Deg. (Closed) | Angle, Deg. (Open) | Locking Force, Kg. | Magnet | Port Size | Working Pressure, Bar | |
---|---|---|---|---|---|---|---|---|
M20NA | Normally Open, Rear Spring | 6 | 19 | 7.5 | No | M5 | 2 - 10 |
$196.77
|
M20NAM | Normally Open Magnetic, Rear Spring | 6 | 19 | 7.5 | Yes | M5 | 2 - 10 |
$224.25
|
M20NC | Normally Closed, Front Spring | 6 | 19 | 8.5 | No | M5 | 2 - 10 |
$196.77
|
M20NCM | Normally Closed Magnetic, Front Spring | 6 | 19 | 8.5 | Yes | M5 | 2 - 10 |
$224.25
|
M20DE | Double Acting | 6 | 19 | 10.1 - 12.2 | No | M5 | 1.5 - 10 |
$196.77
|
M20DEM | Double Acting Magnetic | 6 | 19 | 10.1 - 12.2 | Yes | M5 | 1.5 - 10 |
$224.25
|
M20DEP | Double Acting with Rear Pin | 6 | 19 | 10.1 - 12.2 | No | M5 | 1.5 - 10 |
$224.25
|
M32 - 32mm Bore
Product # | Actuation | Angle, Deg. (Closed) | Angle, Deg. (Open) | Locking Force, Kg. | Magnet | Port Size | Working Pressure, Bar | |
---|---|---|---|---|---|---|---|---|
M32NA | Normally Open, Rear Spring | 4 | 16 | 16.5 | No | G1/8" | 2 - 10 |
$264.14
|
M32NAM | Normally Open Magnetic, Rear Spring | 4 | 16 | 16.5 | Yes | G1/8" | 2 - 10 |
$300.48
|
M32NC | Normally Closed, Front Spring | 4 | 16 | 19.5 | No | G1/8" | 2 - 10 |
$264.14
|
M32NCM | Normally Closed Magnetic, Front Spring | 4 | 16 | 19.5 | Yes | G1/8" | 2 - 10 |
$300.48
|
M32DE | Double Acting | 4 | 16 | 22 - 24 | No | G1/8" | 1.5 - 10 |
$264.14
|
M32DEM | Double Acting Magnetic | 4 | 16 | 22 - 24 | Yes | G1/8" | 1.5 - 10 |
$300.48
|
M32DEP | Double Acting with Rear Pin | 4 | 16 | 22 - 24 | No | G1/8" | 1.5 - 10 |
$302.27
|
M50 - 50mm Bore
Product # | Actuation | Angle, Deg. (Closed) | Angle, Deg. (Open) | Locking Force, Kg. | Magnet | Port Size | Working Pressure, Bar | |
---|---|---|---|---|---|---|---|---|
M50NAM | Normally Open Magnetic, Rear Spring | 4 | 9 | 46 | Yes | G1/8" | 2 - 10 |
$624.10
|
M50NCM | Normally Closed Magnetic, Front Spring | 4 | 9 | 49 | Yes | G1/8" | 2 - 10 |
$624.10
|
M50DE | Double Acting | 4 | 9 | 52 - 60 | No | G1/8" | 1.5 - 10 |
$593.19
|
M50DEM | Double Acting Magnetic | 4 | 9 | 52 - 60 | Yes | G1/8" | 1.5 - 10 |
$624.10
|
M50DEP | Double Acting with Rear Pin | 4 | 9 | 52 - 60 | No | G1/8" | 1.5 - 10 |
$667.01
|
