INCLUDE-A-SHAFT®

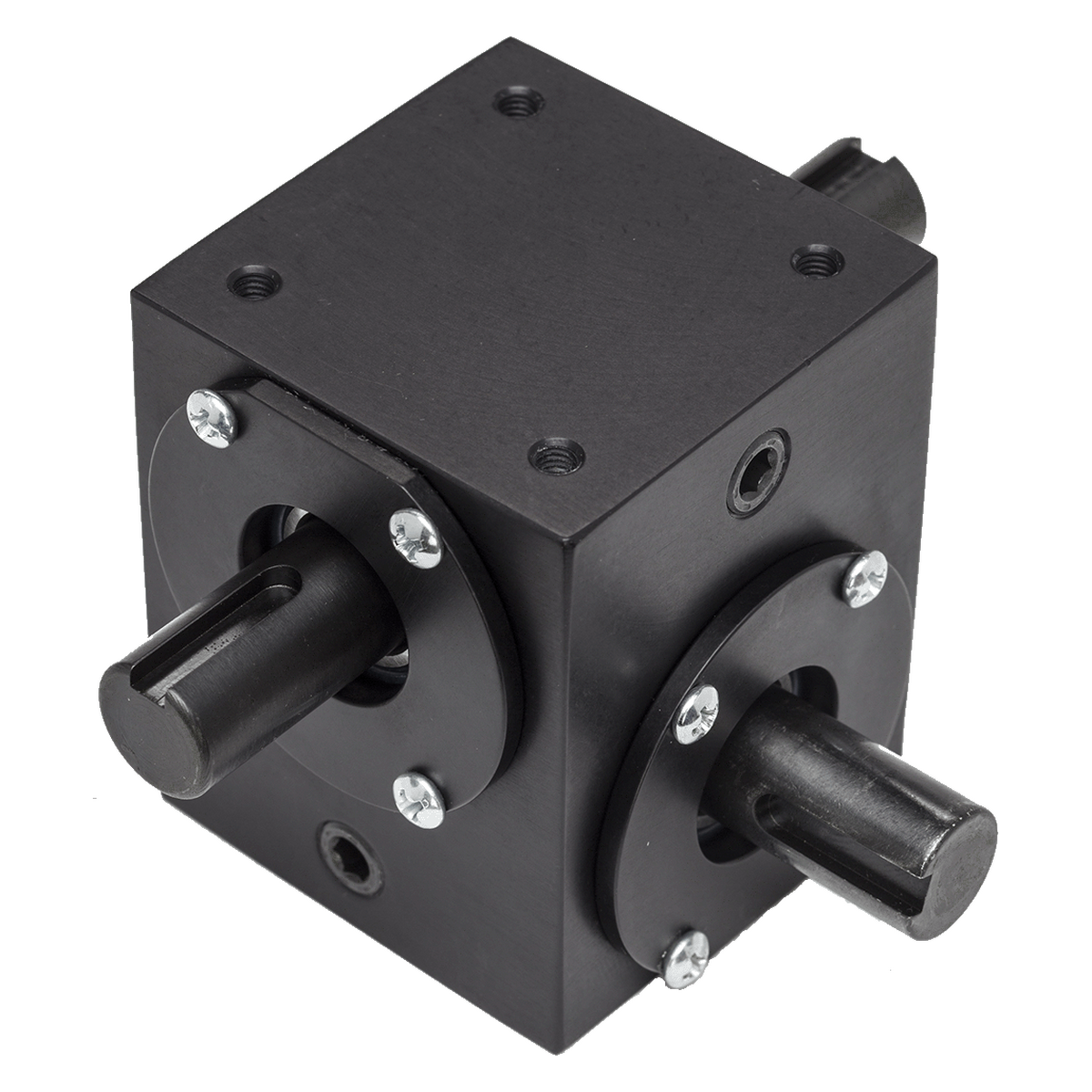

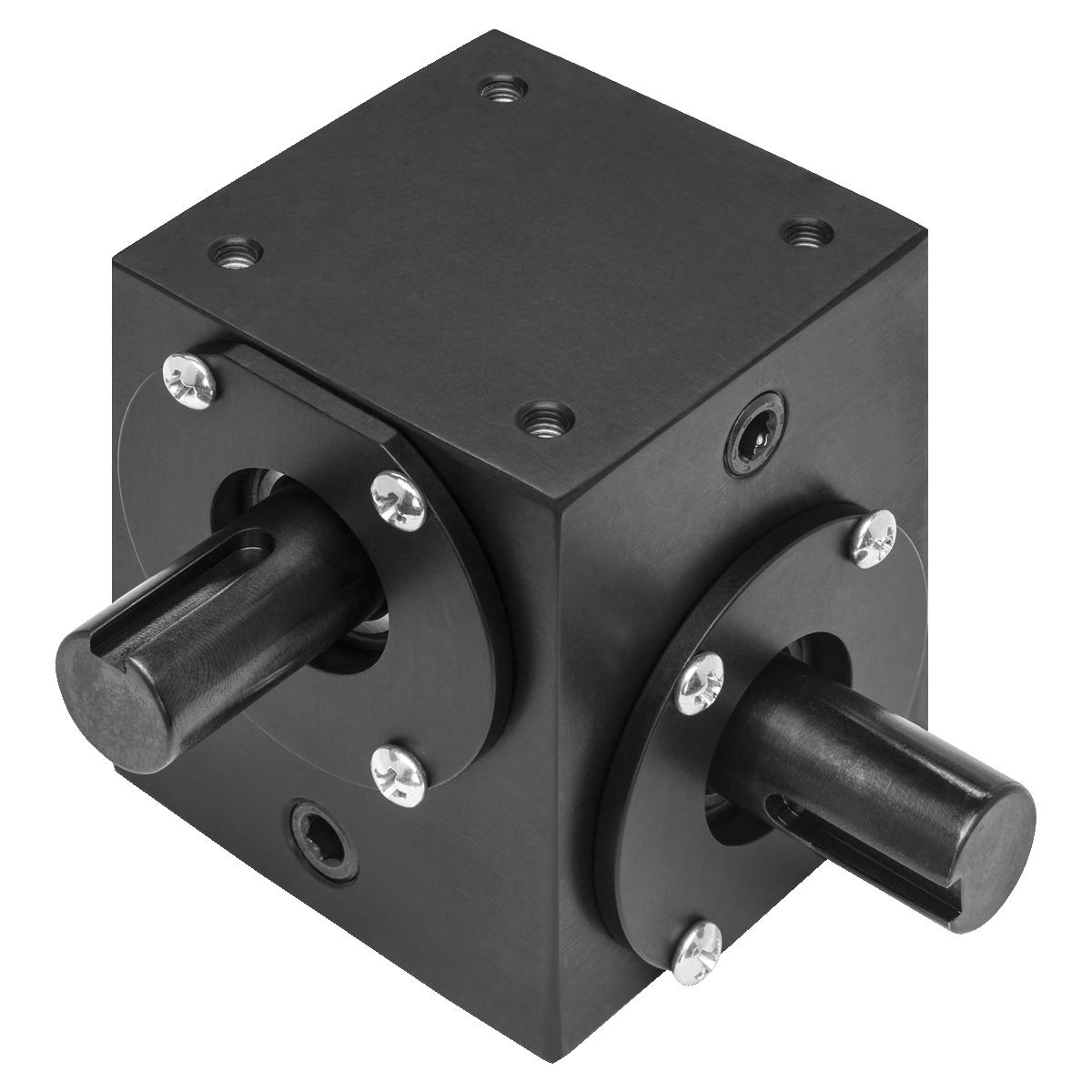

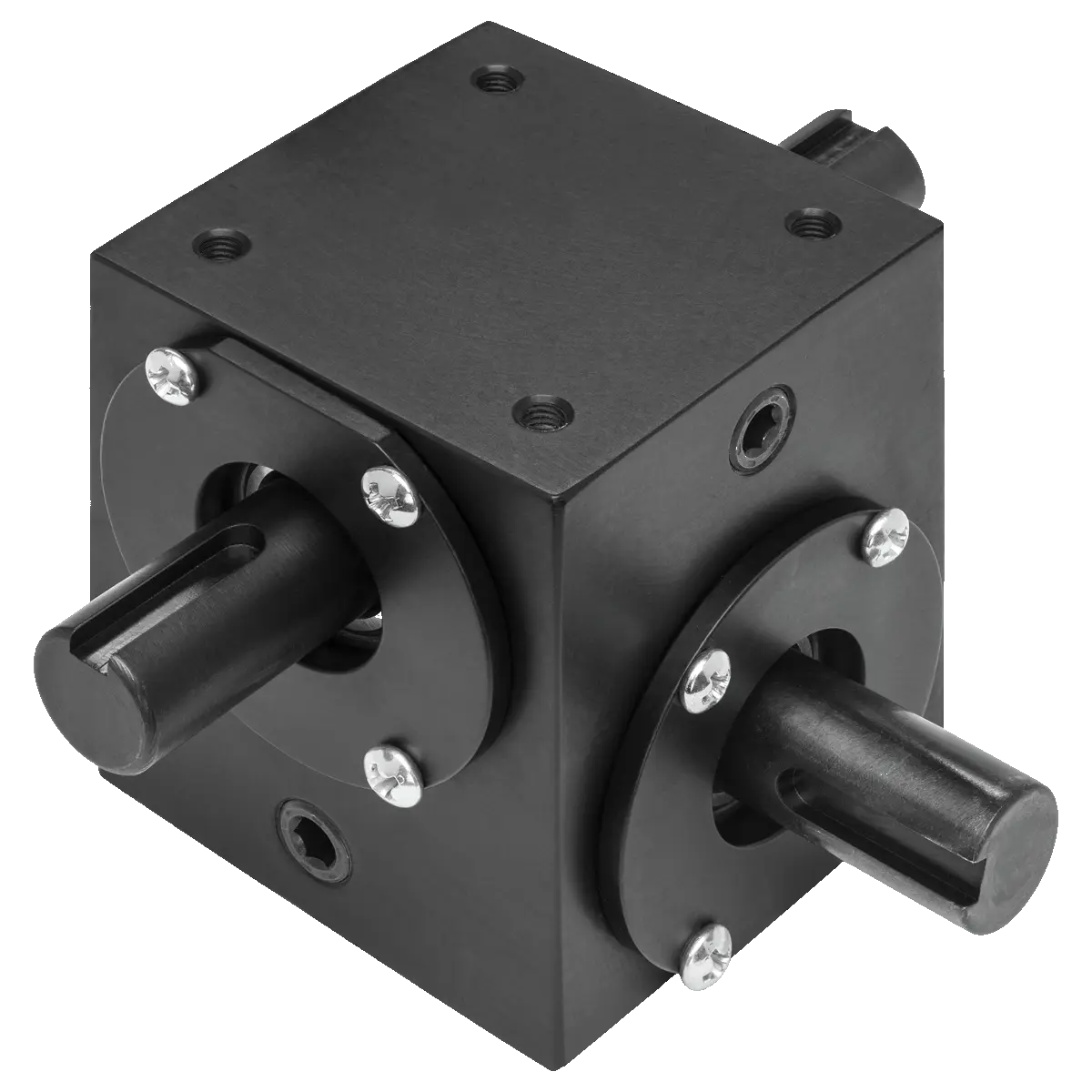

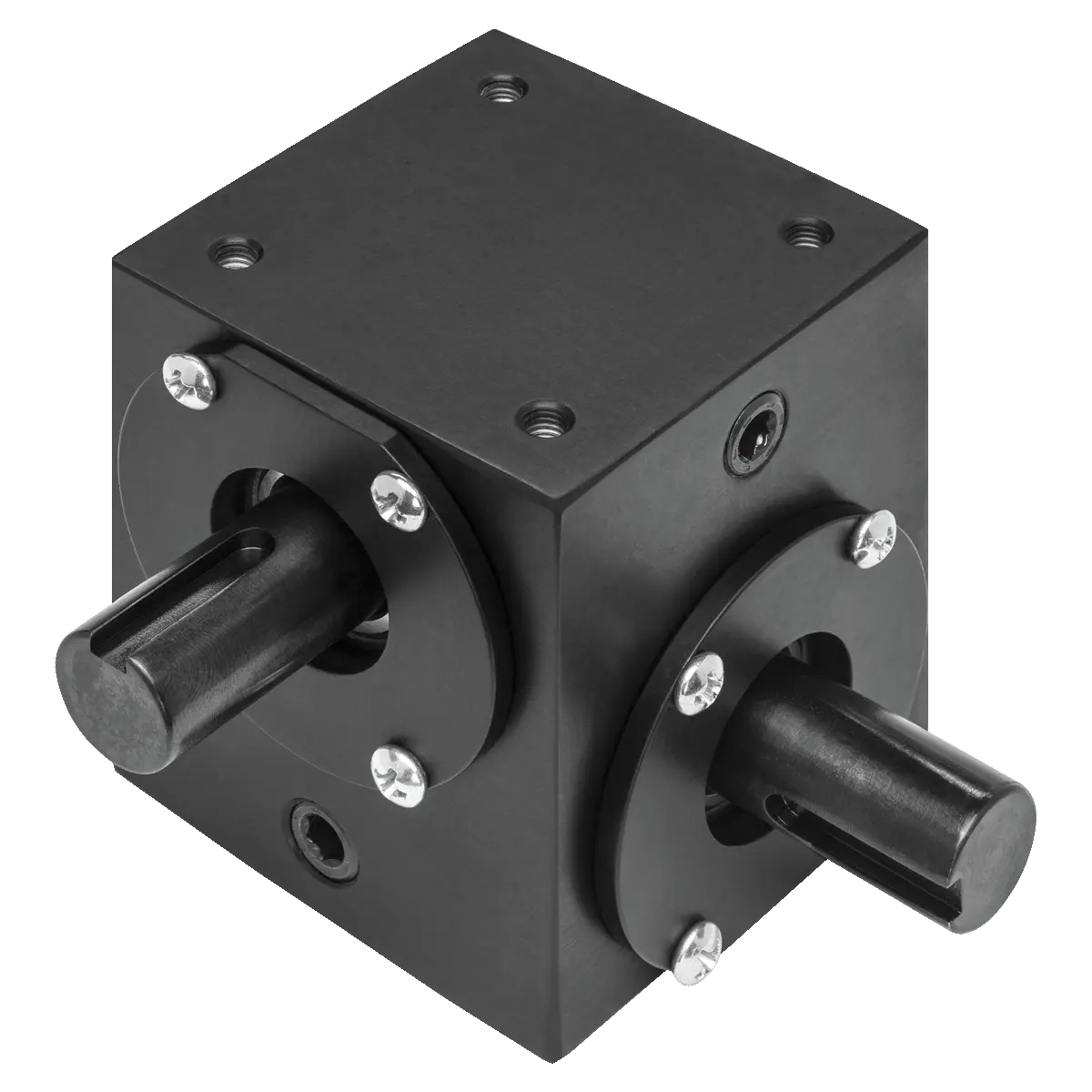

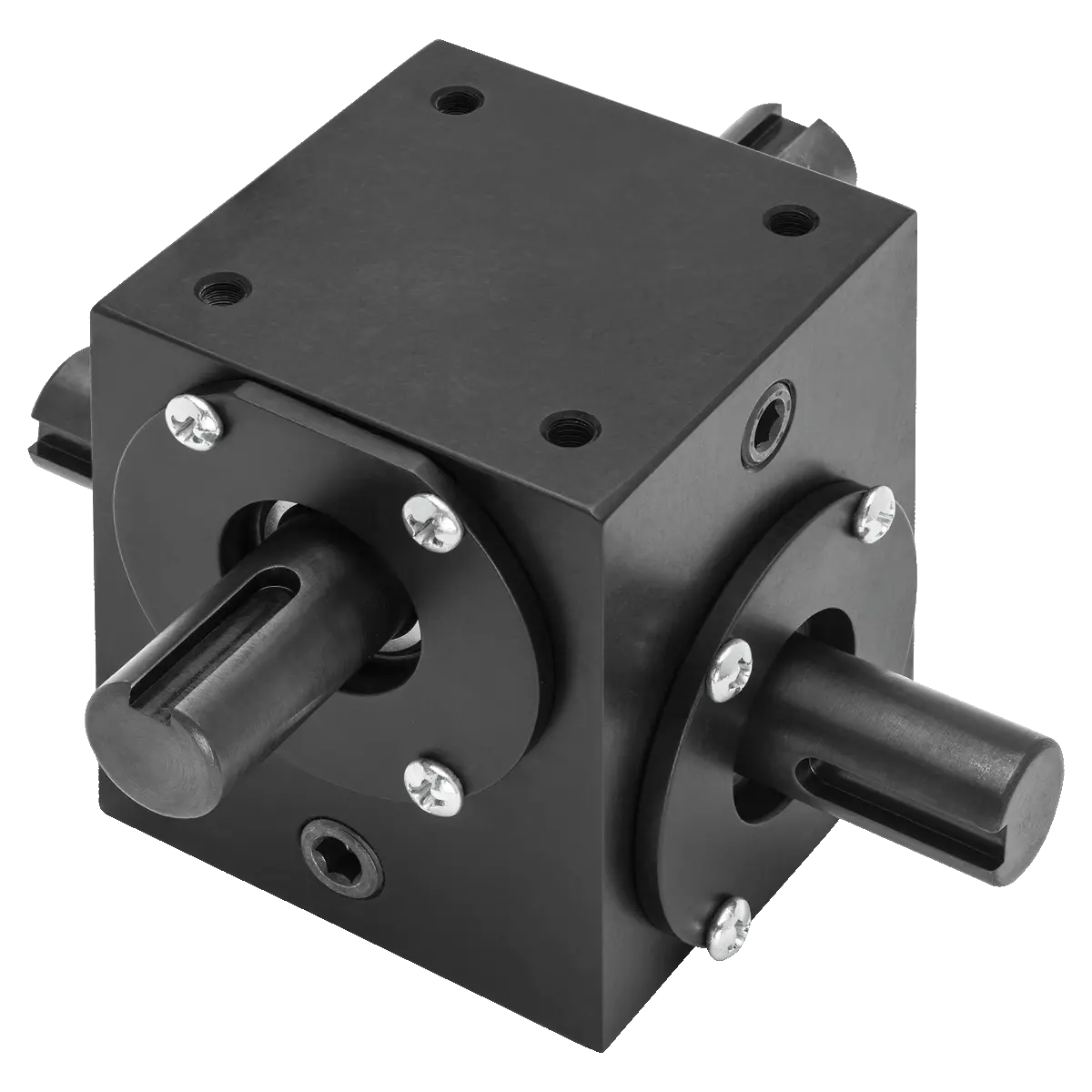

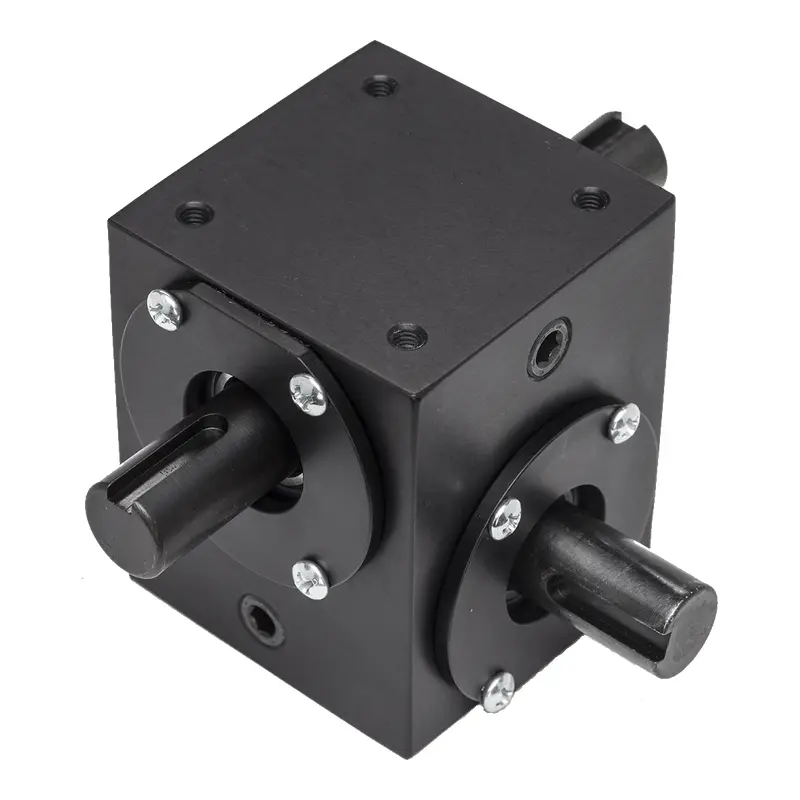

Introducing the Include-A-Shaft® Series 10 Mini Right Angle Gear Drives.
These 1:1 ratio drives Include integral gears and shafts combinations. Available in your choice of 2-Way, 3-Way and 4-Way configurations and shaft diameters of 1/2 inch and 5/8 inch.
Features
- 1" shaft centers
- One piece 4140 heat treated 45º helical gear and shaft combinations
- Heavy duty sealed ball bearings
- Right and left hand rotation
- Hardcoated housing
- Speeds to 1800 RPM
- O-Ring sealed gear case
- Machined aluminum construction
- Keys included
Click image to enlarge
Include-A-Shaft® Tolerances
| Shaft Diameter | Shaft Length | Keyway Width |
|---|---|---|
| Models with .500 in. dia. +.000/-.001 | +/- .005 in. | .125/.127 in. |
Available Products
| Product # | Name | Configuration | Rotation | Shaft Dia. (in.) | |
|---|---|---|---|---|---|
| 4304-0170 | 2ICAS101:1RHA.625B.625 | 2-Way | Right Hand | .625 | |
| 4304-0171 | 2ICAS101:1LHA.625B.625 | 2-Way | Left Hand | .625 | |
| 4304-0172 | 3ICAS101:1RHA.625B.625 | 3-Way | Right Hand | .625 | |
| 4304-0173 | 3ICAS101:1LHA.625B.625 | 3-Way | Left Hand | .625 | |
| 4304-0174 | 4ICAS101:1RHA.625B.625 | 4-Way | Right Hand | .625 | |
| 4304-0175 | 4ICAS101:1LHA.625B.625 | 4-Way | Left Hand | .625 | |
| 4304-0176 | 2ICAS101:1RHA.500B.500 | 2-Way | Right Hand | .500 | |
| 4304-0177 | 2ICAS101:1LHA.500B.500 | 2-Way | Left Hand | .500 | |
| 4304-0178 | 3ICAS101:1RHA.500B.500 | 3-Way | Right Hand | .500 | |
| 4304-0179 | 3ICAS101:1LHA.500B.500 | 3-Way | Left Hand | .500 | |
| 4304-0180 | 4ICAS101:1RHA.500B.500 | 4-Way | Right Hand | .500 | |
| 4304-0181 | 4ICAS101:1LHA.500B.500 | 4-Way | Left Hand | .500 |
