Stainless Steel Gearboxes

(Bk) CRL Base Mt (Mr) AAS 15 (Ml) CRL15 (Fr) AAS Mini
You'll know when your application demands a stainless steel right angle gearbox and it is W.C. Branham's goal to offer you the widest selection available.
Our stainless steel, corrosion resistant gearboxes are designed to be very rugged and used in wet, hostile and sterile operating environments.
CRL Base Mount Stainless Steel Gearboxes include Continuous Recirculating Lubricant (CRL™) for high cycle and continuous duty applications.
CRL stainless steel gearboxes are configured around the Insert-A-Shaft® design of integrated hollow bore shafting for .625, .750, 1.0 and 1.25 inch diameter combinations. The sealed, leak-proof gearcase acts as its own lube reservoir maintaining positive lubrication. Choose right or left hand rotation.
Example, SSCRL15BM1:1RHA1.25B1.25
CRL15 Stainless Steel Gearboxes also have Continuous Recirculating Lubricant for high cycle and continuous duty applications. They are mid-range models with a 1.50 inch bore center distance. Choose from .625 and .750 inch bore combinations.
Example, SSCRL15RH1:1A.750B.625

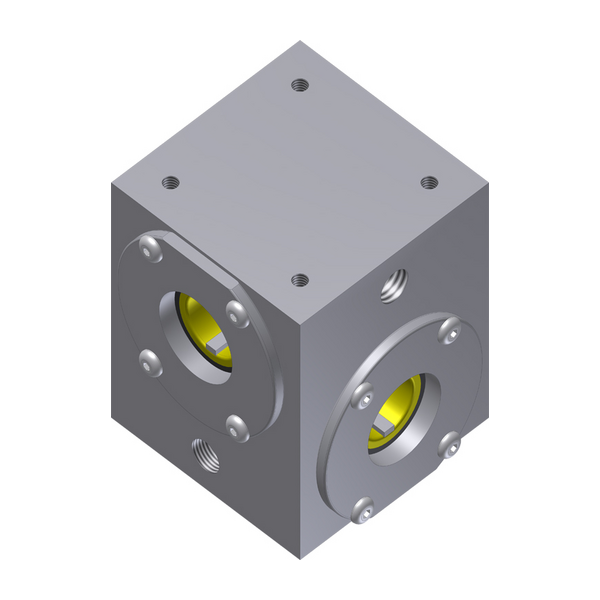

Insert-A-Shaft® Series 10 Mini Stainless Steel Gearboxes are compact with just a 1.0 inch bore center distance. Choose from .500 and .625 inch diameter bore combinations.
Example, SSIAS101:1RHA.625B.625
Insert-A-Shaft® Series 15 Stainless Steel Gearboxes are mid-range models with a 1.50 inch bore center distance and 1.00 inch bores.
Example, SSIAS15RH1:1A1.00B1.00


Specifications
(click  for more details)
Showing Imperial Measurements - Switch to Metric Measurements
SSIAS10 Series 10 Mini 1:1 Models
- Compact, 1 inch Bore Center Distance
- Sealed, Leak Proof Gearcase
- 304 Stainless Steel Gearcase, Bearing Caps and Keys
- Stainless Steel Fasteners
- 8620 Heat Treated Case Hardened Gears
- (4) Stainless Steel R16 Sealed Ball Bearings
- Pre-Lubricated w/Magnalube®-G GR2 HTEP
- Accrolube® Food Grade 2 Optional. Specify when ordering.
- Stainless Shaft Keys (2) Included
SSIAS15 Series 15 1:1 Models
- Mid Size, 1.5 inch Bore Center Distance
- 304 Stainless Gearcase
- 304 Stainless Caps, Shafts & Keys
- Stainless Fasteners
- 4 Ea. Heavy Duty R16 Stainless Double Sealed Ball Bearings
- Sealed, Leak Proof Gearcase
- 8620 Heat Treated Case Hardened 15 Tooth Gears
- Pre-Lubricated w/Magnalube® G GR2 HTEP
- Accrolube® Food Grade 2 Optional. Specify when ordering.
- Stainless Shaft Keys (2) Included
SSCRL15 Series 15 1:1 Models -
- Mid Size, 1.5 inch Bore Center Distance
- High Cycle, Continuous Duty
- 304 Stainless Gearcase
- 304 Stainless Caps, Shafts & Keys
- Stainless Fasteners
- 4 Ea. Heavy Duty R16 Stainless Double Sealed Ball Bearings
- Sealed, Leak Proof Gearcase
- 8620 Heat Treated Case Hardened 15 Tooth Gears
- Pre-Lubricated Lubriplate 1500 Grade 00
- Accrolube® Food Grade 2 Optional. Specify when ordering.
- (2) Keys Included
CRL25BM Series 25 Base Mount 1:1 Models
- 2.5 inch Bore Center Distance
- High Cycle, Continuous Duty
- 304 Stainless Gearcase
- 304 Stainless Caps, Shafts & Keys
- Stainless Steel Fasteners
- 4 Ea. Heavy Duty R24 Stainless Double Sealed Ball Bearings
- 4 Ea. Spring Loaded Shaft Seals
- Sealed, Leak Proof Gearcase
- Speeds to 1200 RPM
- 8620 Heat Treated Case Hardened Gears
- Stainless Shaft Keys (2) Included
- Pre-Lubricated Lubriplate 1500 Grade 00
Showing Metric Measurements - Switch to Imperial Measurements
Sorry, no metric information available for this product group. Showing imperial measurements instead...
SSIAS10 Series 10 Mini 1:1 Models
- Compact, 1 inch Bore Center Distance
- Sealed, Leak Proof Gearcase
- 304 Stainless Steel Gearcase, Bearing Caps and Keys
- Stainless Steel Fasteners
- 8620 Heat Treated Case Hardened Gears
- (4) Stainless Steel R16 Sealed Ball Bearings
- Pre-Lubricated w/Magnalube®-G GR2 HTEP
- Accrolube® Food Grade 2 Optional. Specify when ordering.
- Stainless Shaft Keys (2) Included
SSIAS15 Series 15 1:1 Models
- Mid Size, 1.5 inch Bore Center Distance
- 304 Stainless Gearcase
- 304 Stainless Caps, Shafts & Keys
- Stainless Fasteners
- 4 Ea. Heavy Duty R16 Stainless Double Sealed Ball Bearings
- Sealed, Leak Proof Gearcase
- 8620 Heat Treated Case Hardened 15 Tooth Gears
- Pre-Lubricated w/Magnalube® G GR2 HTEP
- Accrolube® Food Grade 2 Optional. Specify when ordering.
- Stainless Shaft Keys (2) Included
SSCRL15 Series 15 1:1 Models -
- Mid Size, 1.5 inch Bore Center Distance
- High Cycle, Continuous Duty
- 304 Stainless Gearcase
- 304 Stainless Caps, Shafts & Keys
- Stainless Fasteners
- 4 Ea. Heavy Duty R16 Stainless Double Sealed Ball Bearings
- Sealed, Leak Proof Gearcase
- 8620 Heat Treated Case Hardened 15 Tooth Gears
- Pre-Lubricated Lubriplate 1500 Grade 00
- Accrolube® Food Grade 2 Optional. Specify when ordering.
- (2) Keys Included
CRL25BM Series 25 Base Mount 1:1 Models
- 2.5 inch Bore Center Distance
- High Cycle, Continuous Duty
- 304 Stainless Gearcase
- 304 Stainless Caps, Shafts & Keys
- Stainless Steel Fasteners
- 4 Ea. Heavy Duty R24 Stainless Double Sealed Ball Bearings
- 4 Ea. Spring Loaded Shaft Seals
- Sealed, Leak Proof Gearcase
- Speeds to 1200 RPM
- 8620 Heat Treated Case Hardened Gears
- Stainless Shaft Keys (2) Included
- Pre-Lubricated Lubriplate 1500 Grade 00
Products Available
|
Product # |
Name |
Ratio/Bores CL, in. |
Rotation |
'A' Bore in. |
'B' Bore in. |
|
4304-0146 |
SSIAS101:1RHA.625B.625 |
1:1 / 1.00 |
Right Hand |
.625 |
.625 |
|
4304-0182 |
SSIAS101:1LHA.500B.500 |
1:1 / 1.00 |
Left Hand |
.500 |
.500 |
|
4304-0183 |
SSIAS101:1RHA.500B.500 |
1:1 / 1.00 |
Right Hand |
.500 |
.500 |
|
4304-0184 |
SSIAS101:1RHA.500B.625 |
1:1 / 1.00 |
Right Hand |
.500 |
.625 |
|
4304-0185 |
SSIAS101:1LHA.500B.625 |
1:1 / 1.00 |
Left Hand |
.500 |
.625 |
|
4304-0186 |
SSIAS101:1LHA.625B.625 |
1:1 / 1.00 |
Left Hand |
.625 |
.625 |
|
4304-0770 |
SSCRL25BM1:1RHA1.25B1.25 |
1:1 / 2.50 |
Right Hand |
1.25 |
1.25 |
|
4304-0771 |
SSCRL25BM1:1LHA1.25B1.25 |
1:1 / 2.50 |
Left Hand |
1.25 |
1.25 |
|
4304-0772 |
SSCRL25BM1:1RHA1.25B1.00 |
1:1 / 2.50 |
Right Hand |
1.25 |
1.00 |
|
4304-0773 |
SSCRL25BM1:1LHA1.25B1.00 |
1:1 / 2.50 |
Left Hand |
1.25 |
1.00 |
|
4304-0774 |
SSCRL25BM1:1RHA1.25B.750 |
1:1 / 2.50 |
Right Hand |
1.25 |
.750 |
|
4304-0775 |
SSCRL25BM1:1LHA1.25B.750 |
1:1 / 2.50 |
Left Hand |
1.25 |
.750 |
|
4304-0776 |
SSCRL25BM1:1RHA1.25B.625 |
1:1 / 2.50 |
Right Hand |
1.25 |
.625 |
|
4304-0777 |
SSCRL25BM1:1LHA1.25B.625 |
1:1 / 2.50 |
Left Hand |
1.25 |
.625 |
|
4304-0778 |
SSCRL25BM1:1RHA1.00B1.00 |
1:1 / 2.50 |
Right Hand |
1.00 |
1.00 |
|
4304-0779 |
SSCRL25BM1:1LHA1.00B1.00 |
1:1 / 2.50 |
Left Hand |
1.00 |
1.00 |
|
4304-0780 |
SSCRL25BM1:1RHA1.00B.750 |
1:1 / 2.50 |
Right Hand |
1.00 |
.750 |
|
4304-0781 |
SSCRL25BM1:1LHA1.00B.750 |
1:1 / 2.50 |
Left Hand |
1.00 |
.750 |
|
4304-0782 |
SSCRL25BM1:1RHA1.00B.625 |
1:1 / 2.50 |
Right Hand |
1.00 |
.625 |
|
4304-0783 |
SSCRL25BM1:1LHA1.00B.625 |
1:1 / 2.50 |
Left Hand |
1.00 |
.625 |
|
4304-0784 |
SSCRL25BM1:1RHA.750B.750 |
1:1 / 2.50 |
Right Hand |
.750 |
.750 |
|
4304-0785 |
SSCRL25BM1:1LHA.750B.750 |
1:1 / 2.50 |
Left Hand |
.750 |
.750 |
|
4304-0786 |
SSCRL25BM1:1RHA.750B.625 |
1:1 / 2.50 |
Right Hand |
.750 |
.625 |
|
4304-0787 |
SSCRL25BM1:1LHA.750B.625 |
1:1 / 2.50 |
Left Hand |
.750 |
.625 |
|
4304-0788 |
SSCRL25BM1:1RHA.625B.625 |
1:1 / 2.50 |
Right Hand |
.625 |
.625 |
|
4304-0789 |
SSCRL25BM1:1LHA.625B.625 |
1:1 / 2.50 |
Left Hand |
.625 |
.625 |
|
4304-0790 |
SSCRL15RH1:1A.625B.625 |
1:1 / 1.50 |
Right Hand |
.625 |
.625 |
|
4304-0791 |
SSCRL15LH1:1A.625B.625 |
1:1 / 1.50 |
Left Hand |
.625 |
.625 |
|
4304-0792 |
SSCRL15RH1:1A.750B.625 |
1:1 / 1.50 |
Right Hand |
.750 |
.625 |
|
4304-0793 |
SSCRL15LH1:1A.750B.625 |
1:1 / 1.50 |
Left Hand |
.750 |
.625 |
|
4304-0794 |
SSCRL15RH1:1A.750B.750 |
1:1 / 1.50 |
Right Hand |
.750 |
.750 |
|
4304-0795 |
SSCRL15LH1:1A.750B.750 |
1:1 / 1.50 |
Left Hand |
.750 |
.750 |
|
4304-0796 |
SSIAS15RH1:1A1.00B1.00 |
1:1 / 1.50 |
Right Hand |
1.00 |
1.00 |
|
4304-0797 |
SSIAS15LH1:1A1.00B1.00 |
1:1 / 1.50 |
Left Hand |
1.00 |
1.00 |
|
|
