PNEUSA Rodless Cylinders

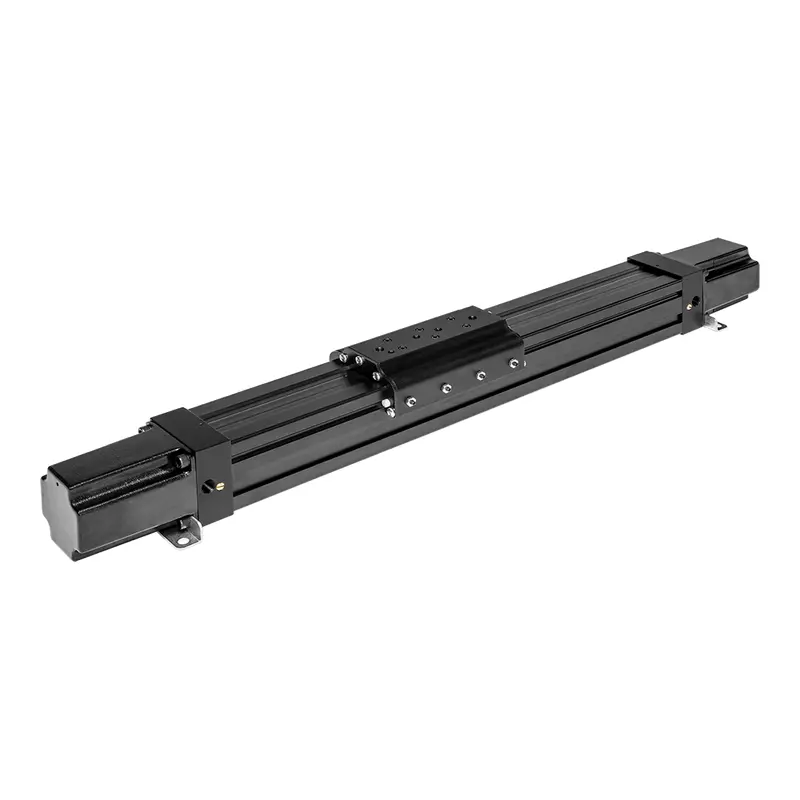

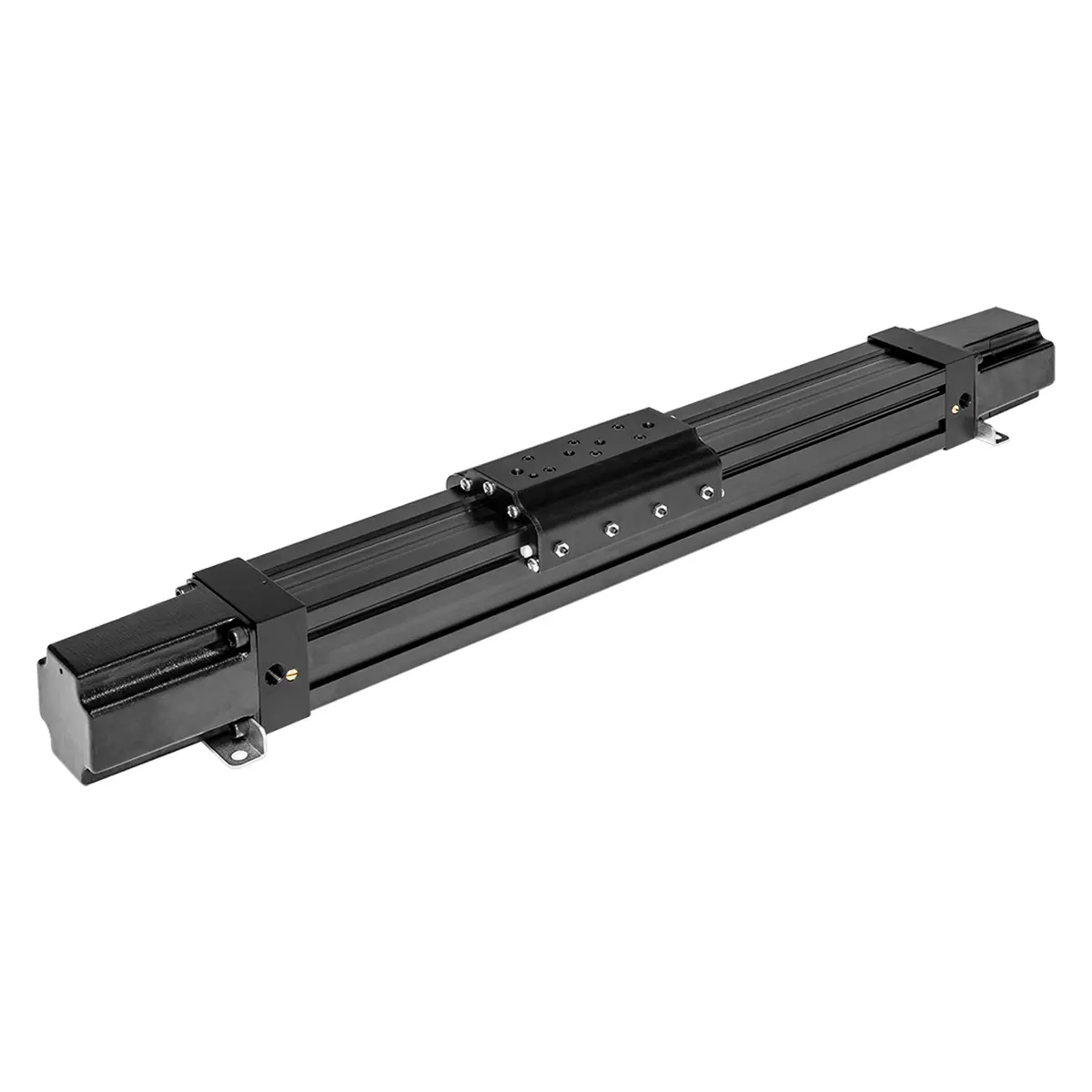

pneU-SA® [noo-es-ey] Rodless Cylinders provide guiding and load support along the length of its' body. Enclosed mil-spec rated cables connect the piston and carrier connector together, which ride in separate chambers. The benefit is an isolated, internally sealed, pressurized piston chamber that is not exposed to the operating environment resulting in continuous duty.
- Carrier/piston mechanically coupled
- Internal main air pressure seals
- Ideal for harsh environments
Specifications
(click  for more details)
- 3 bore sizes of 1" (25mm), 1.25" (32mm) and 1.75" (44mm)
- Self lubricating Nylatron® GS carrier bearings
- Dual chamber extrusion design - no slot seal
- Hardcoated I.D./O.D.
- Foot mounts standard
- Compensating Tension Control - automatic cable tensioning
- Adjustable cushions
- Optional switches and sensors
Why we selected Nylatron GS?
Nylatron GS is nylon filled with molybdenum disulphide (MoS2) to improve its strength and rigidity. Nylatron GS out performs nylon in several areas including heat resistance, tensile and flexural strength. With a lower coefficient of linear thermal expansion than Nylon, Nylatron GS parts maintain better fit and clearances, and have less tendency to seize as bearings. Ideal for improved load bearing capability. Nylatron® GS is a registered trademark of Quadrant Engineering Plastic Products, Inc.
W.C. Branham manufactures pneU-SA rodless cylinders since 1994.
Products Available
| |
Product # |
Name |
Bore, in. |
Option(s) |
Force@100 PSI, lbs. |
Eff. Area, in.2 |
|
1892-0058 |
PSAN032FM |
1.25 |
None |
126 |
1.26 |
|
1892-0059 |
PSAN032FMRSA |
1.25 |
Switches N.O. |
126 |
1.26 |
|
1892-0060 |
PSAN032FMTS |
1.25 |
Tube Supports |
126 |
1.26 |
|
1892-0061 |
PSAN032FMRSB |
1.25 |
Switches N.C. |
126 |
1.26 |
|
1892-0062 |
PSAN032FMRSATS |
1.25 |
Switches N.O., Tube Supports |
126 |
1.26 |
|
1895-0011 |
PSA044 |
1.75 |
None |
240 |
2.40 |
|
1895-0012 |
PSA044RSA |
1.75 |
Switches N.O. |
240 |
2.40 |
|
1895-0013 |
PSA044TS |
1.75 |
Tube Supports |
240 |
2.40 |
|
1895-0020 |
PSA044RSAPV |
1.75 |
Switches N.O., Pivot Bridge |
240 |
2.40 |
|
1895-0021 |
PSA044PV |
1.75 |
Pivot Bridge |
240 |
2.40 |
|
1895-0030 |
PSA044RSB |
1.75 |
Switches N.C. |
240 |
2.40 |
|
1895-0031 |
PSA044RSATS |
1.75 |
Switches N.O., Tube Supports |
240 |
2.40 |
|
1898-0003 |
PSAN025 |
1.0 |
None |
60 |
.60 |
|
1898-0020 |
PSAN025RSA |
1.0 |
Switches N.O. |
60 |
.60 |
|
1898-0021 |
PSAN025RSB |
1.0 |
Switches N.C. |
60 |
.60 |
|
|
