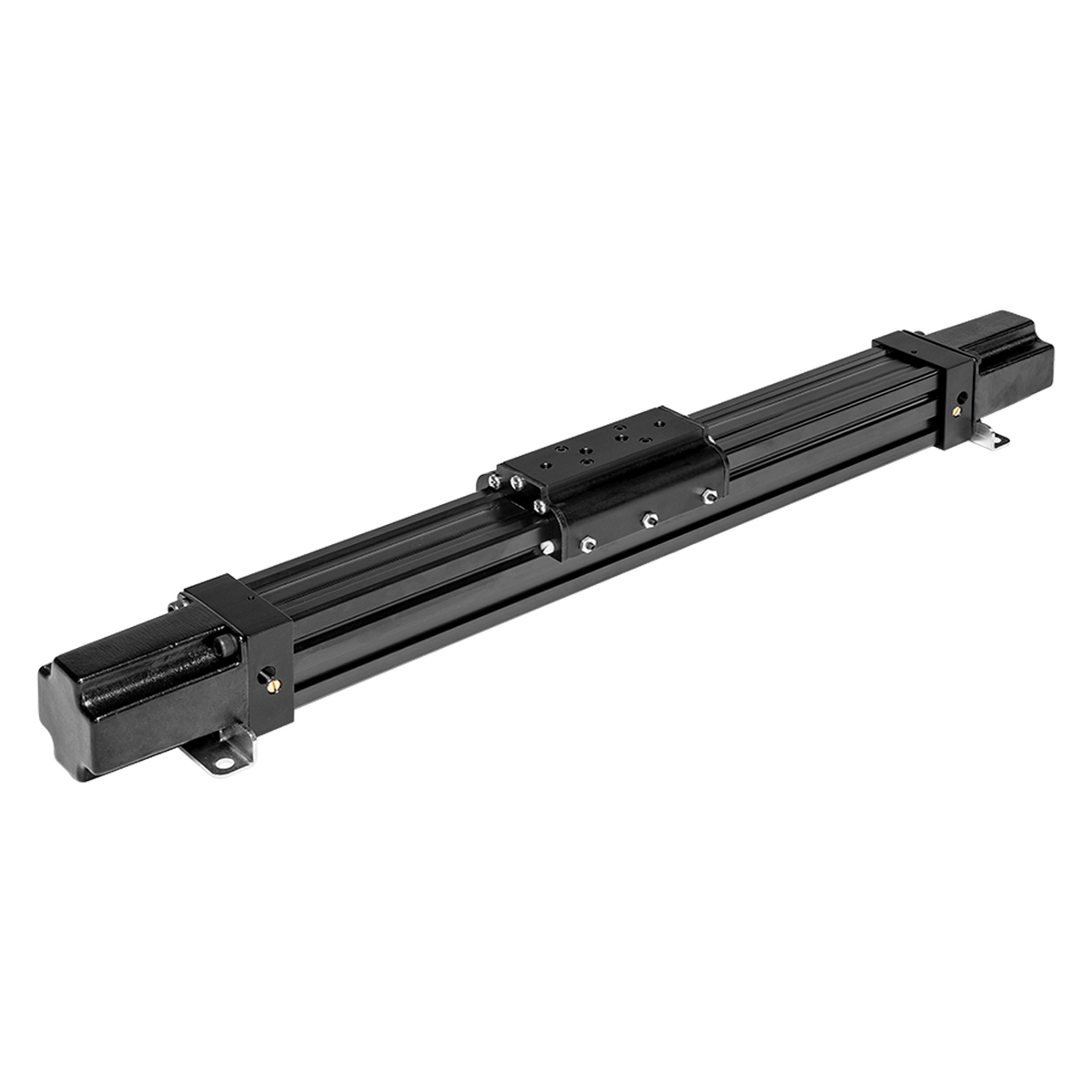

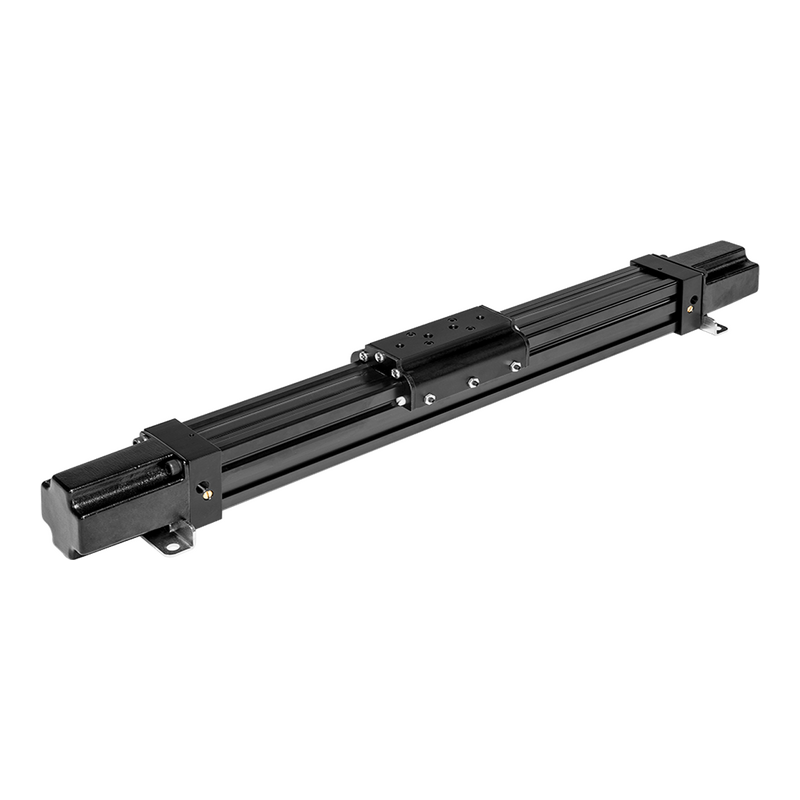

Carrier/Piston Mechanically Coupled. Internal Main Air Pressure Seals.

Ideal for harsh environments, pneU-SA® Rodless Cylinders provide guiding and load support along the length of its' body. Enclosed mil-spec rated cables connect the piston and carrier connector together, which ride in separate chambers.

The benefit is an isolated, internally sealed, pressurized piston chamber that is not exposed to the operating environment resulting in continuous duty.

  • Carrier/piston mechanically coupled
  • Internal main air pressure seals
  • Ideal for harsh environments
Click image to enlarge

PSA032 | 1.25" (32mm) Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1892-0058 PSAN032FM 1.25 1.26 126 None
1892-0059 1.25 1.26 126 Switches N.O.
1892-0060 PSAN032FMRSA 1.25 1.26 126 Tube Supports
1892-0061 PSAN032FMRSB 1.25 1.26 126 Switches N.C.
1892-0062 PSAN032FMRSATS 1.25 1.26 126 Switches N.O., Tube Supports
