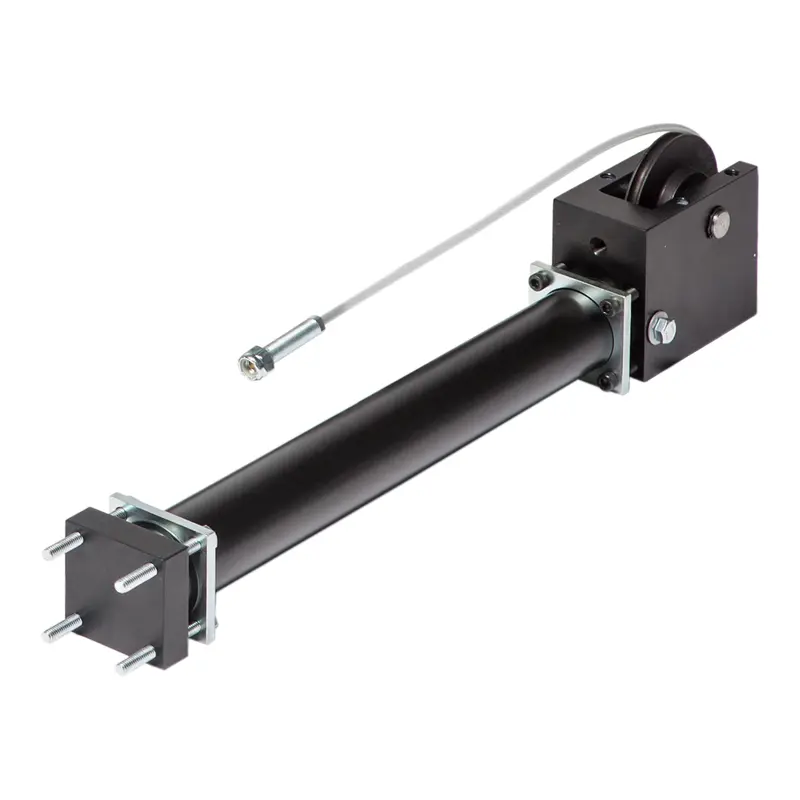

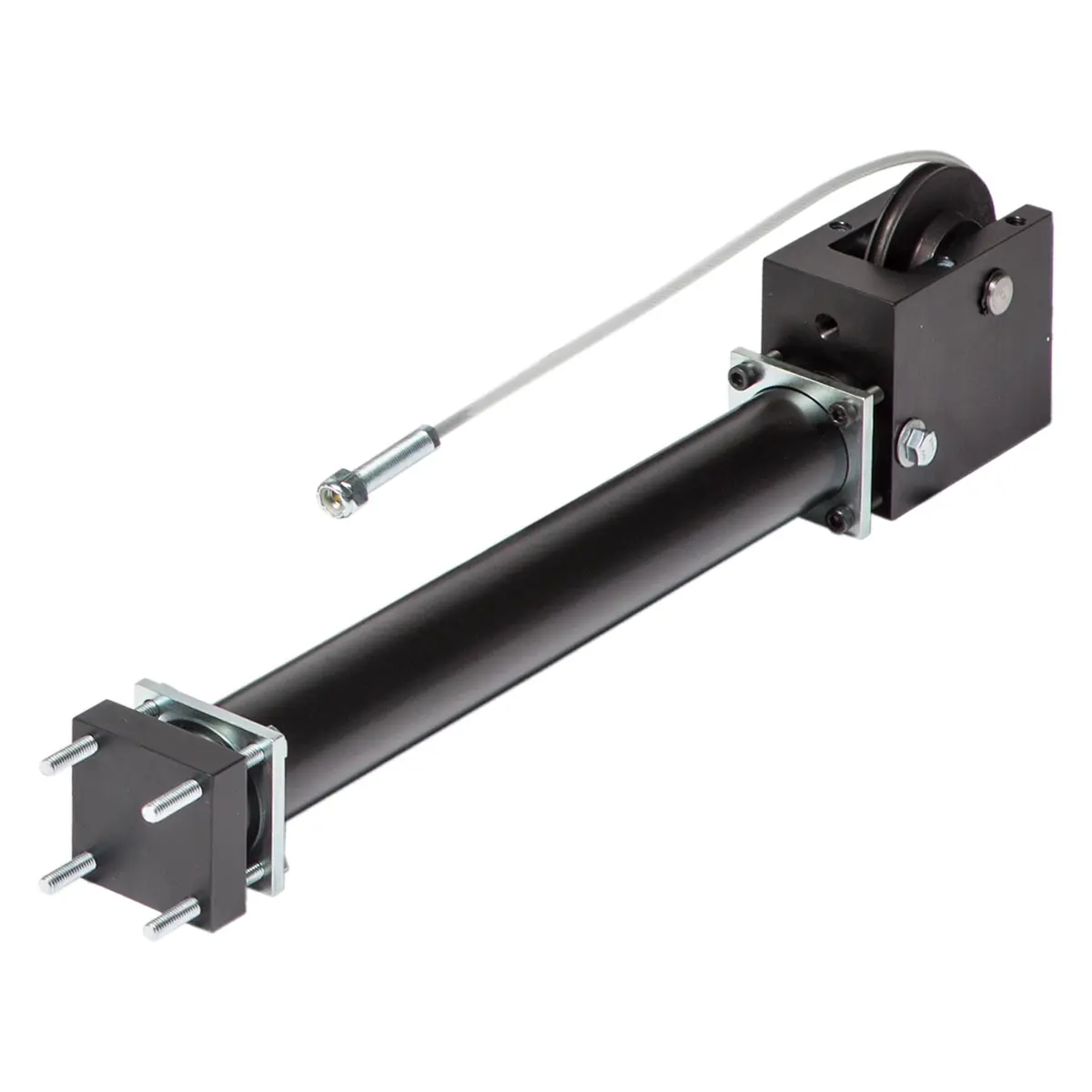

Single Acting Cable Cylinders
Articulating Arms. Opening Gates or Doors. Lifting Products. Raising Material. Counter Balancing.
These are a few of the applications possible with W.C. Branham Single Acting Cable Cylinders.
- Achieve lifting from either vertical or horizontal mounting depending on your envelope.
- Competively priced
- Cost savings over double acting types
W.C. Branham has been manufacturing cable cylinders since 1981.
Specifications
(click  for more details)
- 7 bore sizes from 1.5 to 5 inches, Including 500 psi rated
2 inch bore
- Add extra cable, remote mount cylinder
- Quality manufactured cable seal glands, easy to install
- Black anodized aluminum tubing, corrosion resistant
- Standard adjustable cushioning
- Reed switch and piston magnet options
- Lightweight, durable hardcoated I.D./O.D. aluminum tube
- Standard Buna-N seals. Viton® brand seals available
- Mil-spec rated cable providing millions of continuous cycles
- Strokes to 44 feet
- Viton® seals optional for added performance
- Multi-ported head assemblies optional
- 5:1 safety factor
- Low breakaway configurations

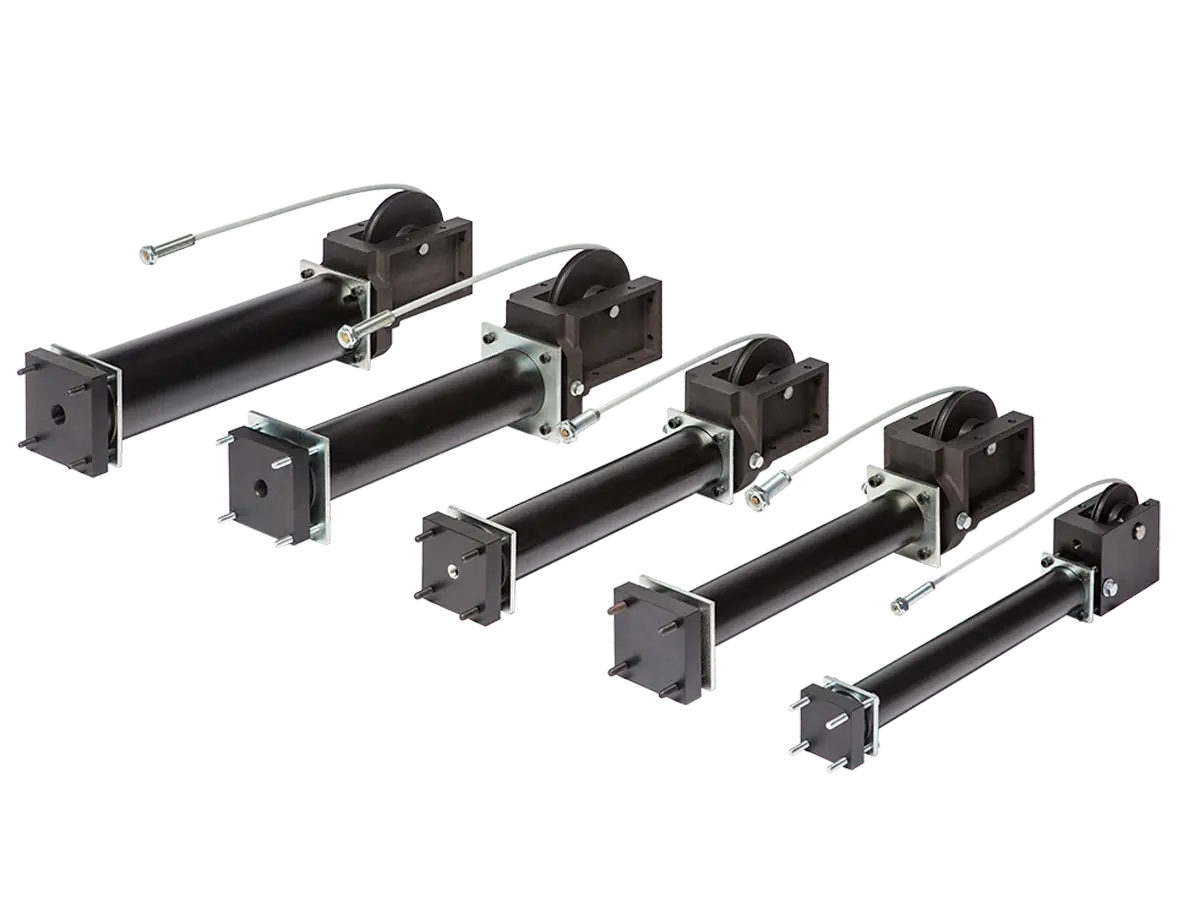

Products Available
| |
Product # |
Name |
Bore, in. |
Option(s) |
Force@100 PSI, lbs. |
Eff. Area, in.2 |
|
1151-0010 |
1151SA |
1.5 |
None |
174 |
1.74 |
|
1151-0012 |
1151SARS |
1.5 |
Reed Switches |
174 |
1.74 |
|
1151-0045 |
1151SAM |
1.5 |
Piston Magnet |
174 |
1.74 |
|
1203-0007 |
1203SA |
2.0 |
None |
309 |
3.09 |
|
1203-0025 |
1203SAM |
2.0 |
Piston Magnet |
309 |
3.09 |
|
1203-0026 |
1203SARS |
2.0 |
Reed Switches |
309 |
3.09 |
|
1206-0013 |
1206SAM |
2.0 |
500 PSI, Piston Magnet |
309 |
3.09 |
|
1206-0014 |
1206SARS |
2.0 |
500 PSI, Reed Switches |
309 |
3.09 |
|
1206-0016 |
1206SA |
2.0 |
500 PSI Heavy Duty |
309 |
3.09 |
|
1251-0001 |
1251SA |
2.5 |
None |
486 |
4.86 |
|
1251-0024 |
1251SAM |
2.5 |
Piston Magnet |
486 |
4.86 |
|
1251-0025 |
1251SARS |
2.5 |
Reed Switches |
486 |
4.86 |
|
1301-0001 |
1301SA |
3.0 |
None |
699 |
6.99 |
|
1301-0005 |
1301SARS |
3.0 |
Reed Switches |
699 |
6.99 |
|
1301-0032 |
1301SAM |
3.0 |
Piston Magnet |
699 |
6.99 |
|
1401-0003 |
1401SA |
4.0 |
None |
1249 |
12.49 |
|
1401-0058 |
1401SAM |
4.0 |
Piston Magnet |
1249 |
12.49 |
|
1401-0059 |
1401SARS |
4.0 |
Reed Switches |
1249 |
12.49 |
|
1501-0003 |
1501SA |
5.0 |
None |
1920 |
19.20 |
|
|
