1750-0050

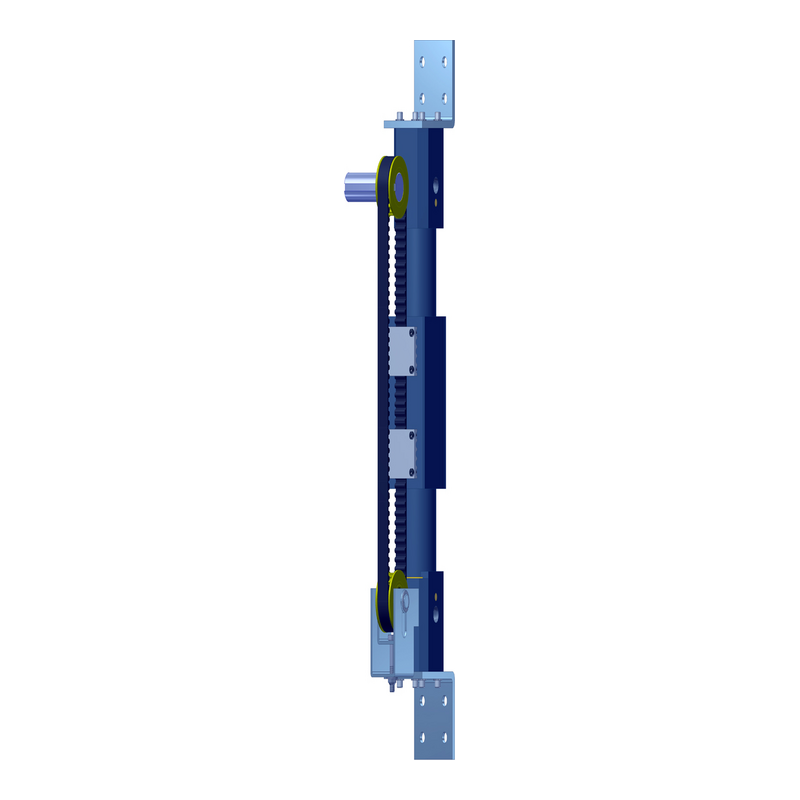

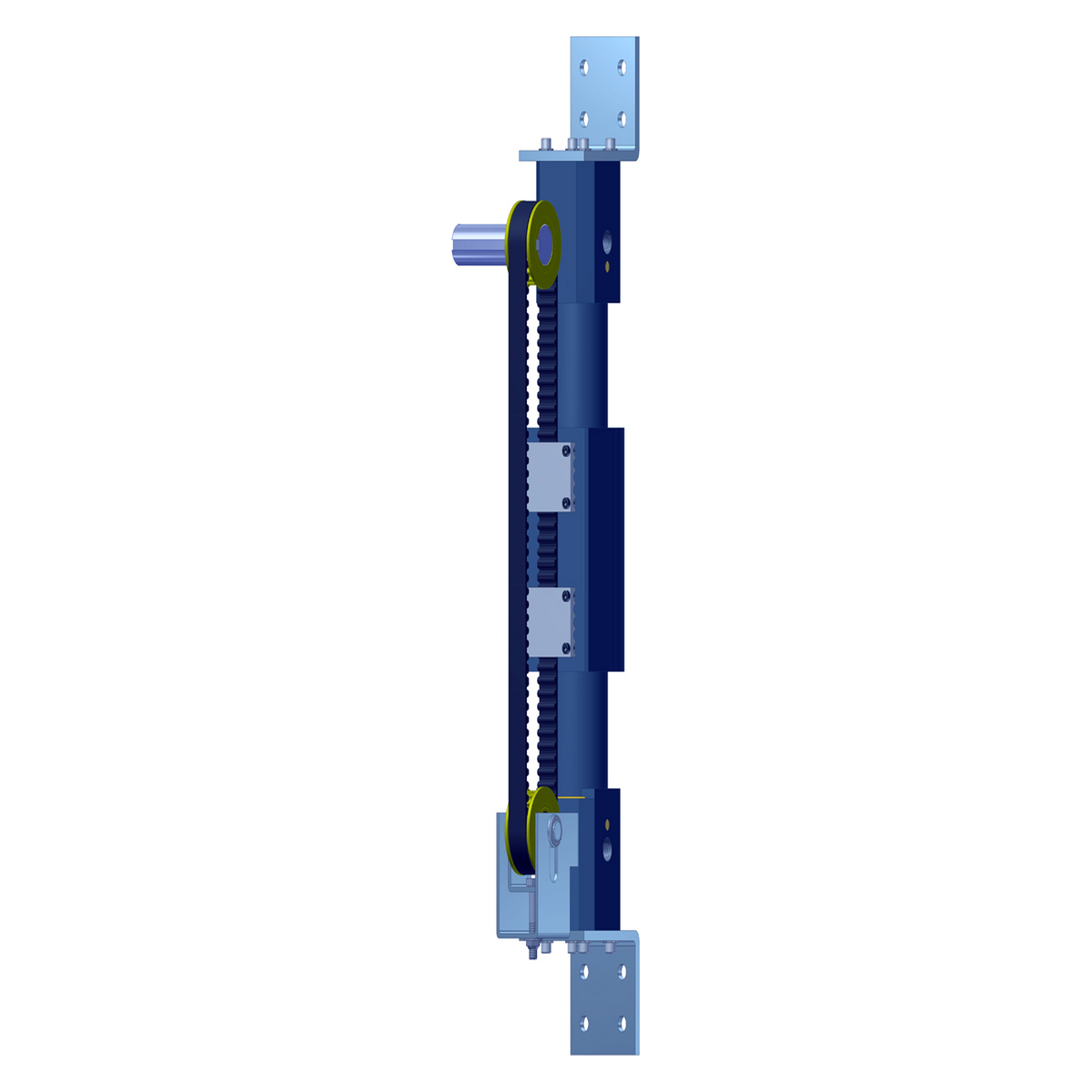

DoorTec® Pneumatic Jack Shaft Door Operator Featuring MAGTEC® Magnetically Coupled Rodless Cylinder 2 inch I.D. Bore x 34 inch Stroke and Includes Foot Mount Brackets for Vertical Mounting. Sized for 8 foot Door.

  • Ideally Suitable for use in Car Washes
  • 25% More Force Output than Nearest Competitor Brand
  • Internally Sealed for Greater Service Life
  • Magnetically Coupled Piston and Carrier
  • Adjustable Cushions for Smooth Decel
  • 1/8 in. Wall Aluminum Tube Body Hardcoated to 68 Rockwell Hardness
  • Pre-Lubricated w/Magnalube®-G GR2 HTEP
  • O.D. Tube Wipers
  • Stainless Steel Hardware
  • Hardcoated Heads and Carriage
