4005-0043

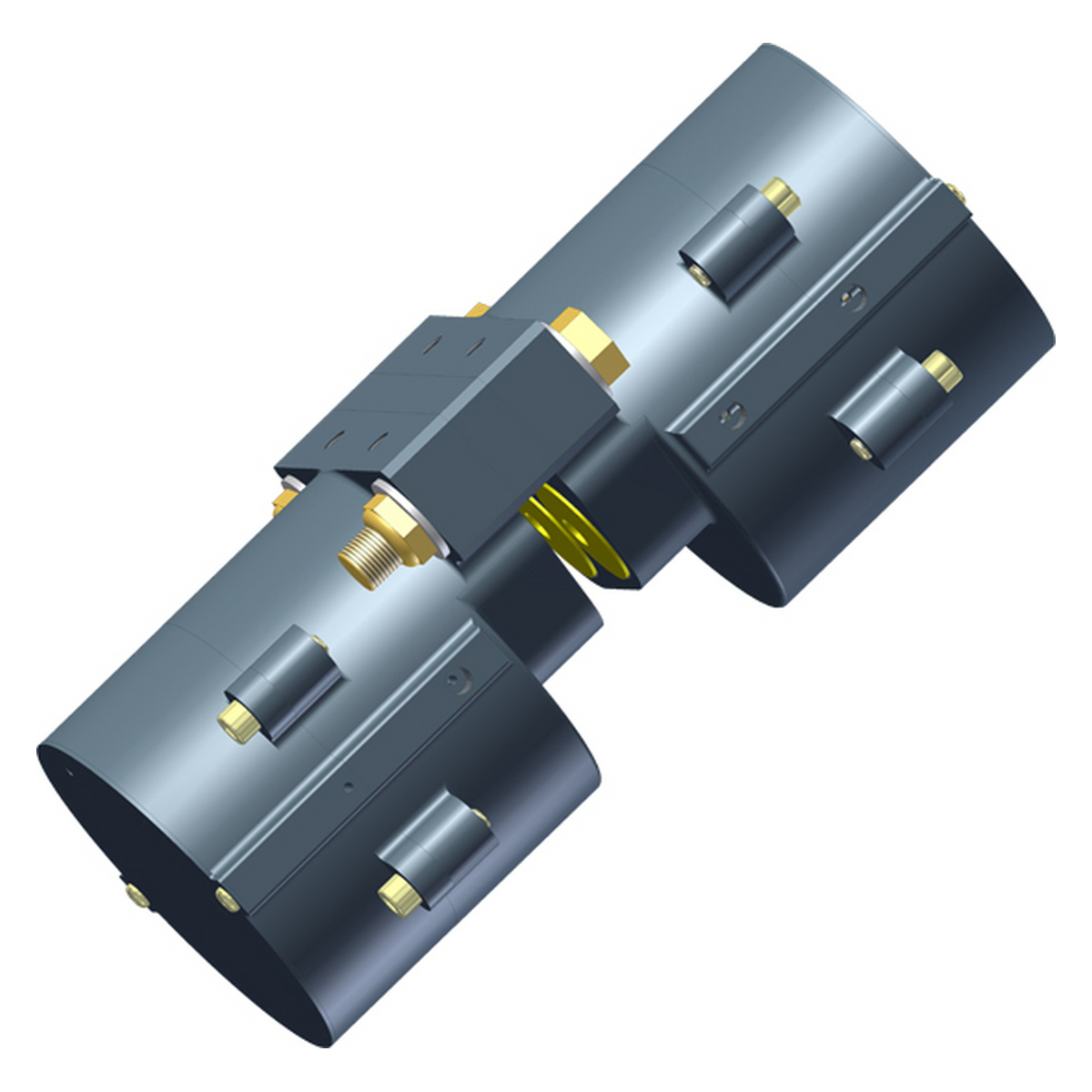

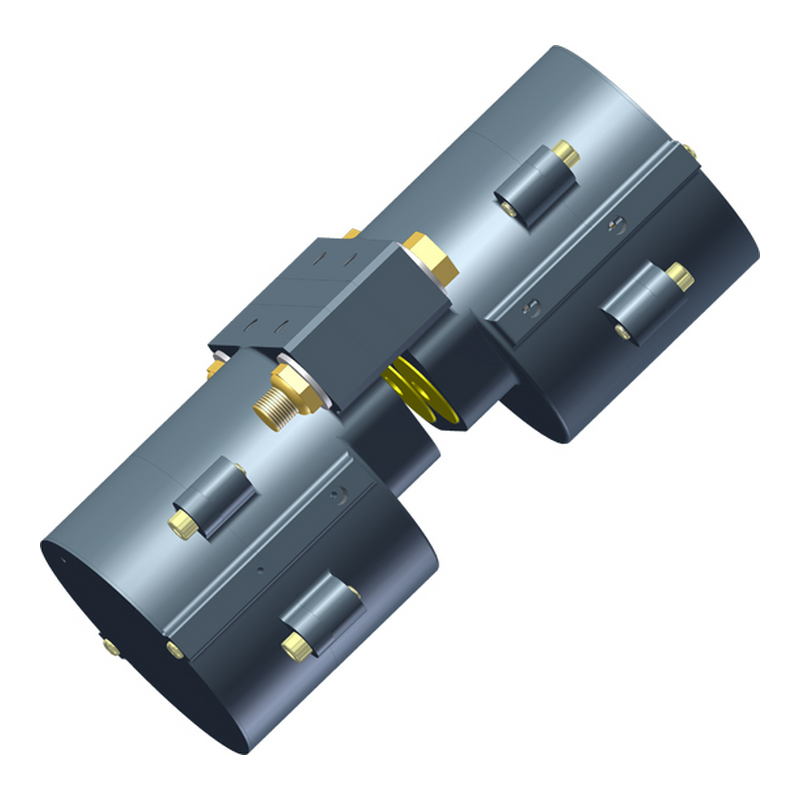

200 unlimited disc series, pneumatic spring applied, double acting, fixed mount caliper disc brake sized for 3/4 inch thick brake disc.

• Fits on Brake Discs with Unlimited Diameter.
• 85 PSI Retractable Release Pressure
• Aluminum Construction
• Hardcoated
• Internal Crossover Porting
• Dual Belleville Disc Spring Stacks
• Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
• Replaceable Friction Pads
• Non-Asbestos Friction Material
• .45 Coefficient of Friction

• 929 lb. Maximum Tangential Force
• 2065 lb. Maximum Clamping Force
• 13,129 in. lb. F using 30 inch Disc Diameter
