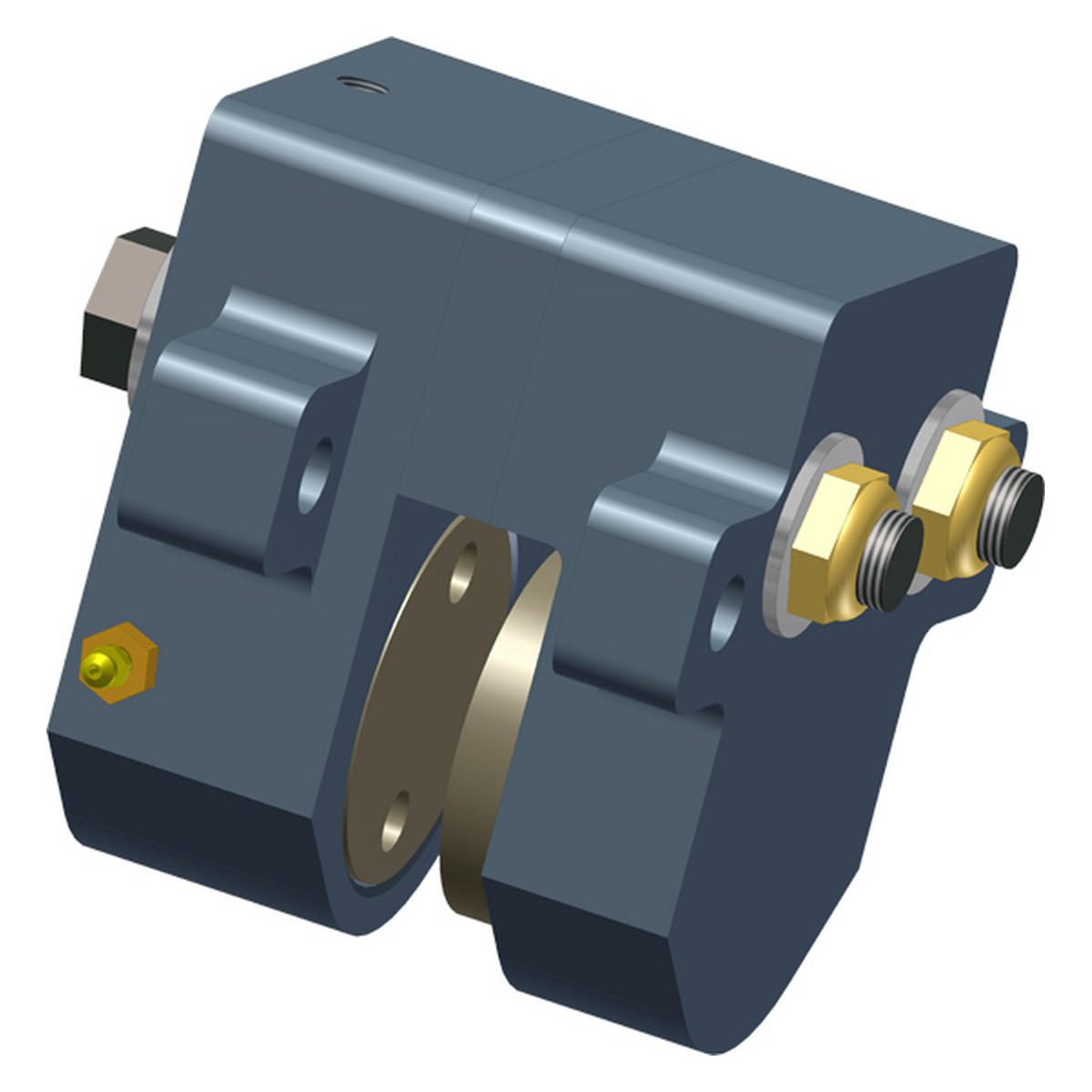

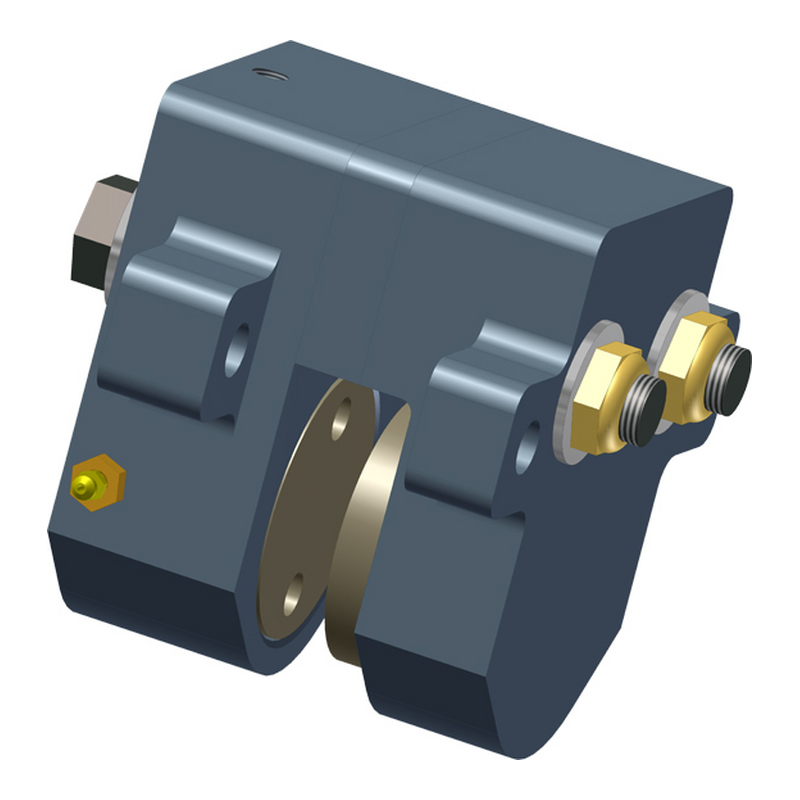

493 series, hydraulic single acting caliper disc brake sized for 1/2 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Float Mounting
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads
  • Dynamic torque (inch/lb) 353 lbf per 100 psi x braking radius
  • Parking/static torque 211 lbf per 100 psi x braking radius
