HDM032.080.GS.M
ARTEC ISO15552 CYL DAM MALE 32MM BORE, 80MM STK
Attributes
| Actuation | Double |
| Bore, mm. | 32 |
| ISO Standard | 15552 |
| Magnet | Yes |
| Port Size | G1/8" |
| Rod Dia., mm. | 12 |
| Rod Thread | Male - 10x1.25 |
| Seals | Std Parker |
| Stroke, mm. | 80 |

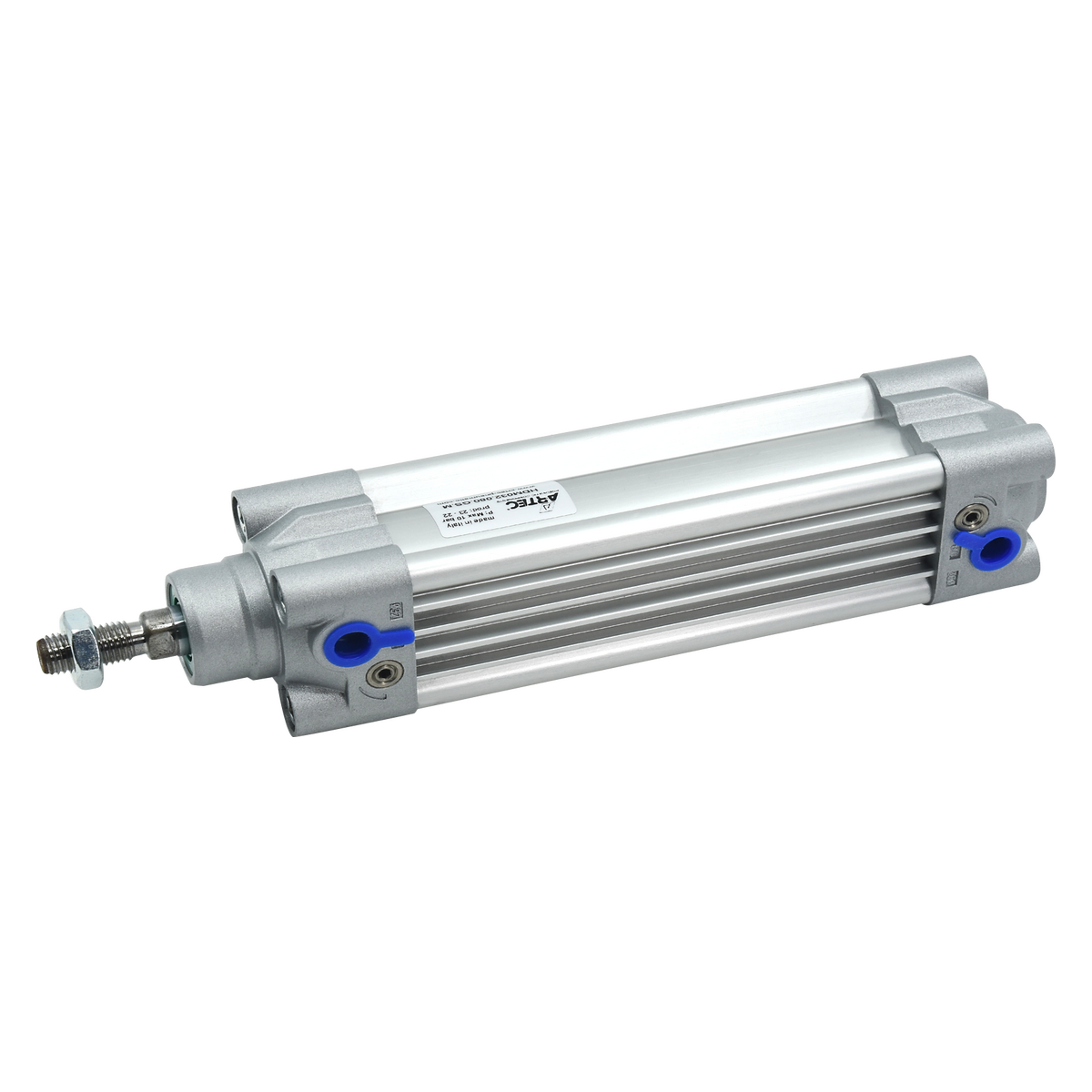

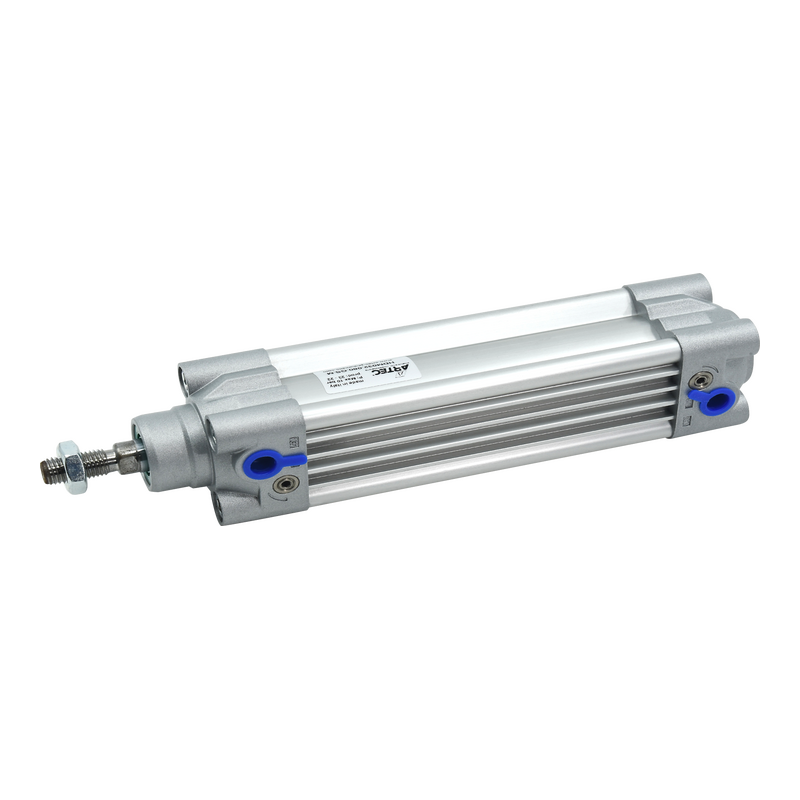

Click image to enlarge
ARTEC ISO15552 CYL DAM MALE 32MM BORE, 80MM STK
| Actuation | Double |
| Bore, mm. | 32 |
| ISO Standard | 15552 |
| Magnet | Yes |
| Port Size | G1/8" |
| Rod Dia., mm. | 12 |
| Rod Thread | Male - 10x1.25 |
| Seals | Std Parker |
| Stroke, mm. | 80 |
