HDM040.080.GS.M

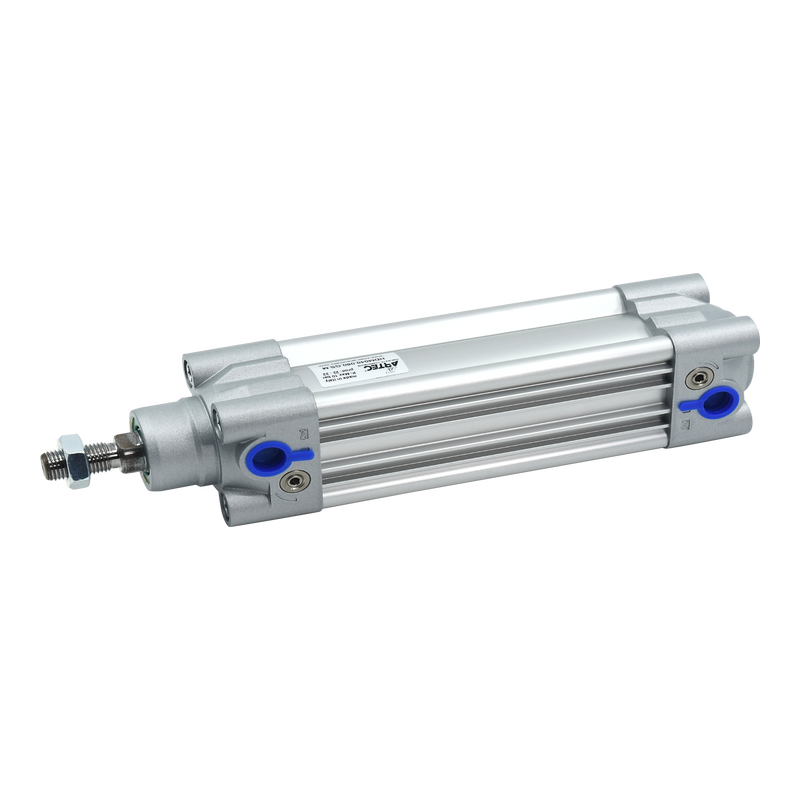

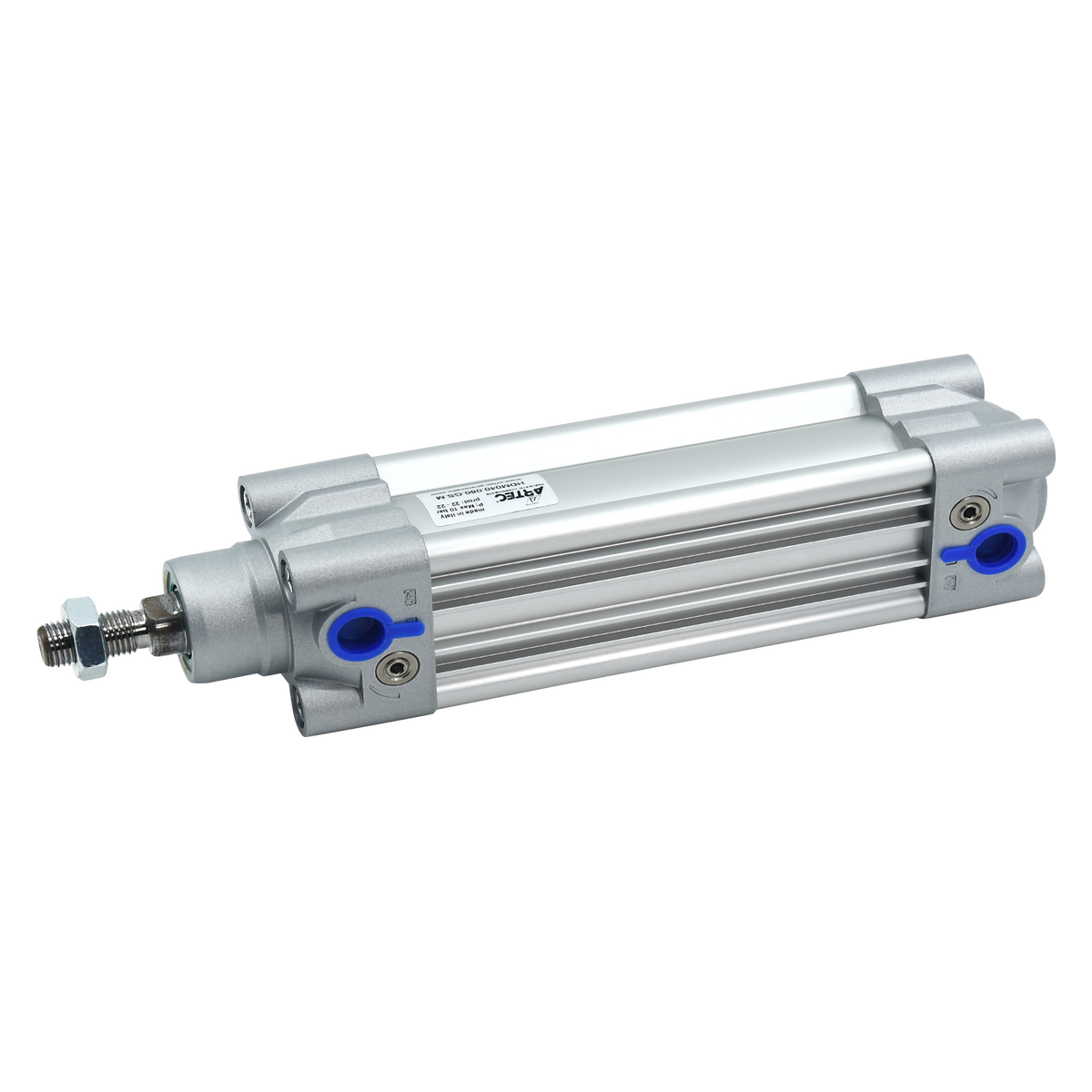

ARTEC ISO15552 CYL DAM MALE 40MM BORE, 80MM STK
Cylinder Type | Rod |
Cylinder Style | ISO 15552 |
Actuation | Double |
Bore Diameter (mm) | 40 |
Stroke Length (mm) | 80 |
Body Construction | Anodized Aluminum |
Rod Diameter (mm) | 16 |
Rod Type | Metric Single |
Rod Thread | Male Fine |
Rod Material | Hard Chrome Plated Steel |
Rod Anti-Rotation | No |
Mounting Style | End |
Seal Material | PU Polyurethane |
Rod Seal | PU Polyurethane |
Rod Bearing | Bronze Oil Filled |
Port Thread | Metric |
Port location | Top |
Sensor Magnet | Yes |
Brand | ARTEC® |
Cushions | Adjustable |
Made in Italy | Yes |
Port Size | G1/4 |
Pressure Maximum (bar) | 10 |
Rod Thread Size | M12X1.25 |
