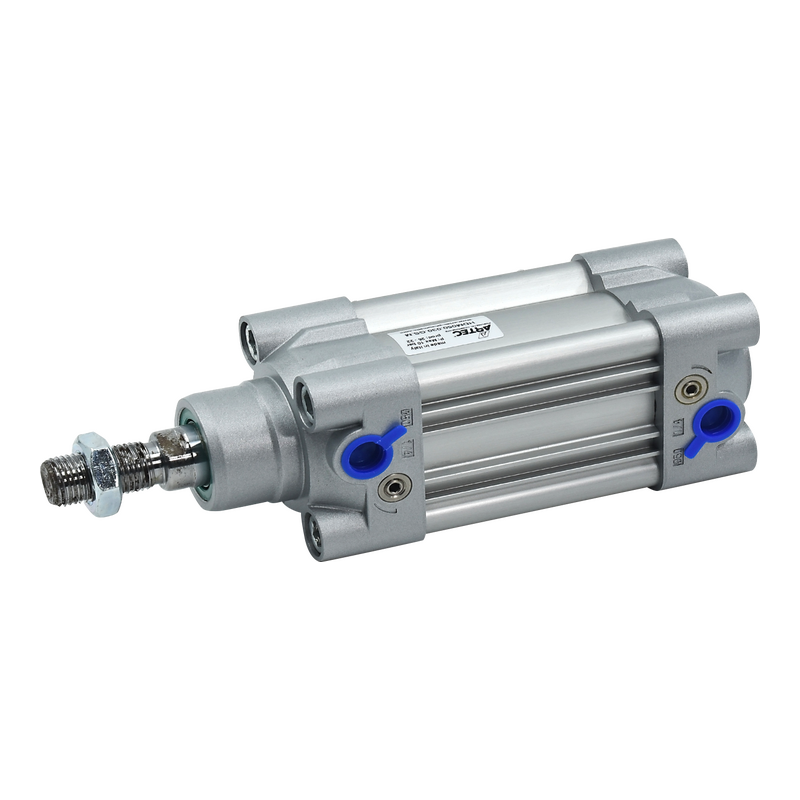

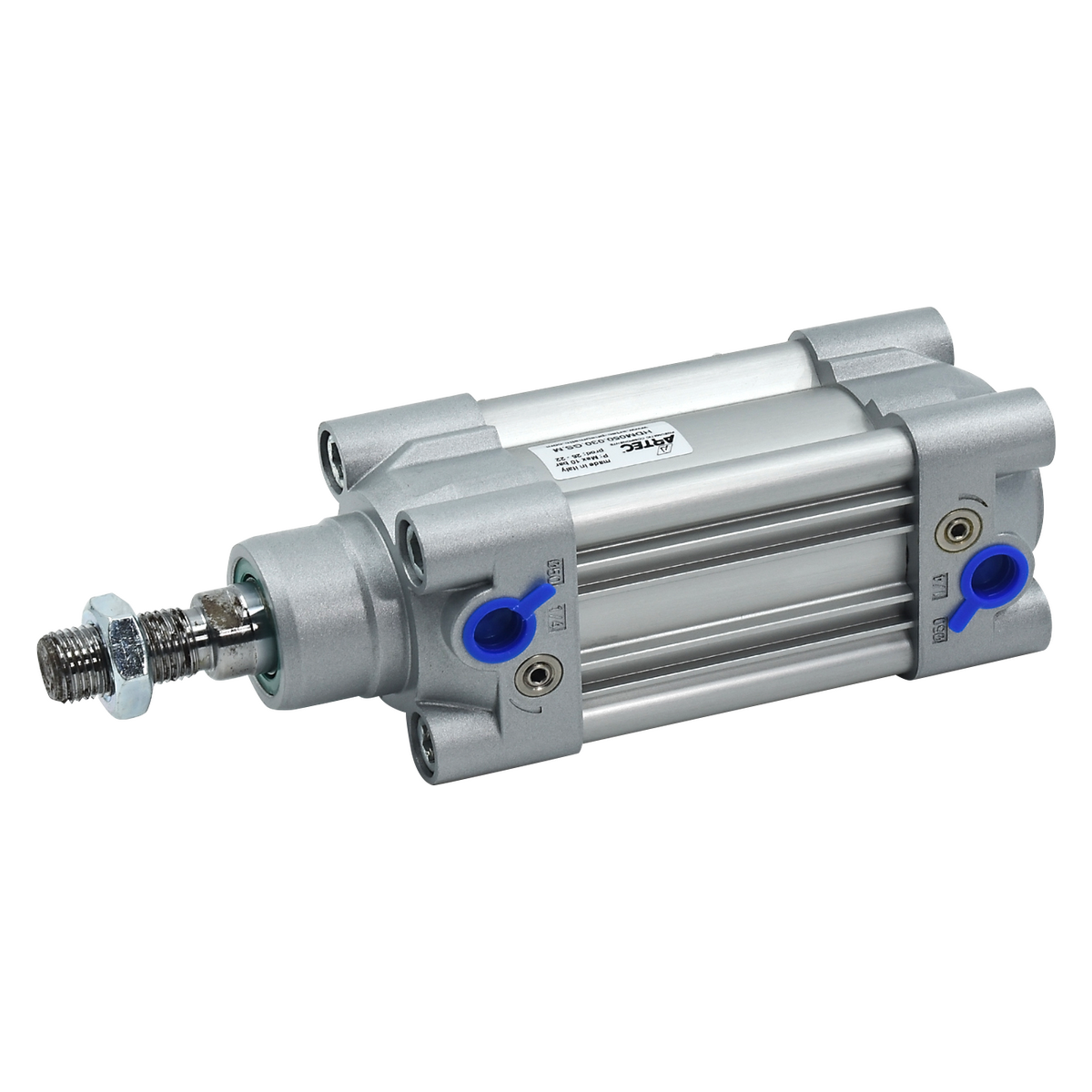

HDM050.030.GS.M

ARTEC ISO15552 CYL DAM MALE ROD 50MM BORE, 30MM STK

Cylinder Type Rod
Cylinder Style ISO 15552
Actuation Double
Bore Diameter (mm) 50
Stroke Length (mm) 30
Body Construction Anodized Aluminum
Rod Diameter (mm) 20
Rod Type Metric Single
Rod Thread Male Fine
Rod Material Hard Chrome Plated Steel
Rod Anti-Rotation No
Mounting Style End
Seal Material PU Polyurethane
Rod Seal PU Polyurethane
Rod Bearing Bronze Oil Filled
Port Thread Metric
Port location Top
Sensor Magnet Yes
Brand ARTEC®
Cushions Adjustable
Made in Italy Yes
Port Size G1/4
Pressure Maximum (bar) 10
Rod Thread Size M16X1.50
$88.23
