ODM008.080.GS.M

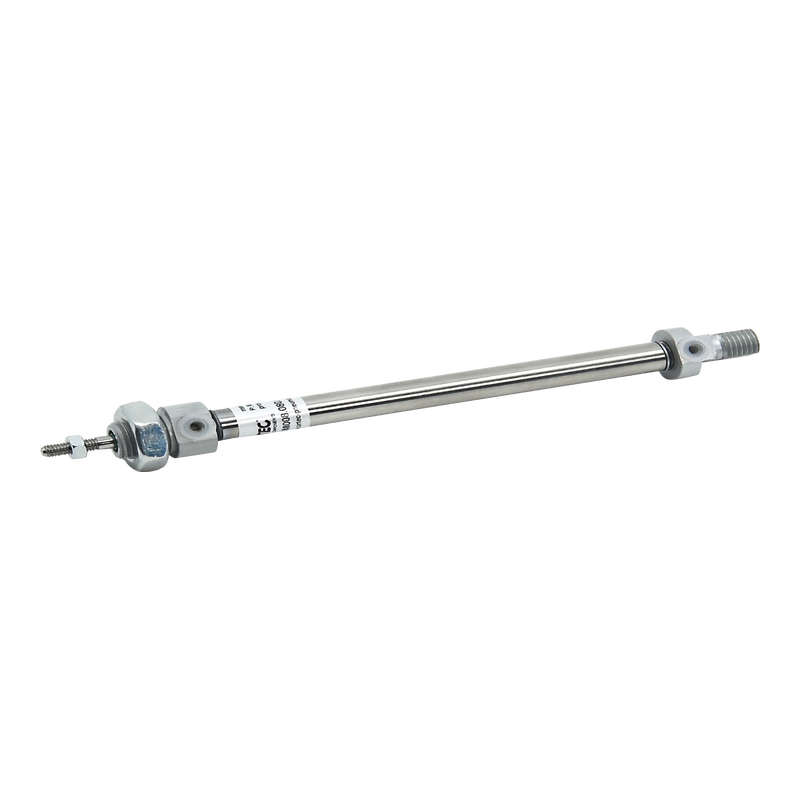

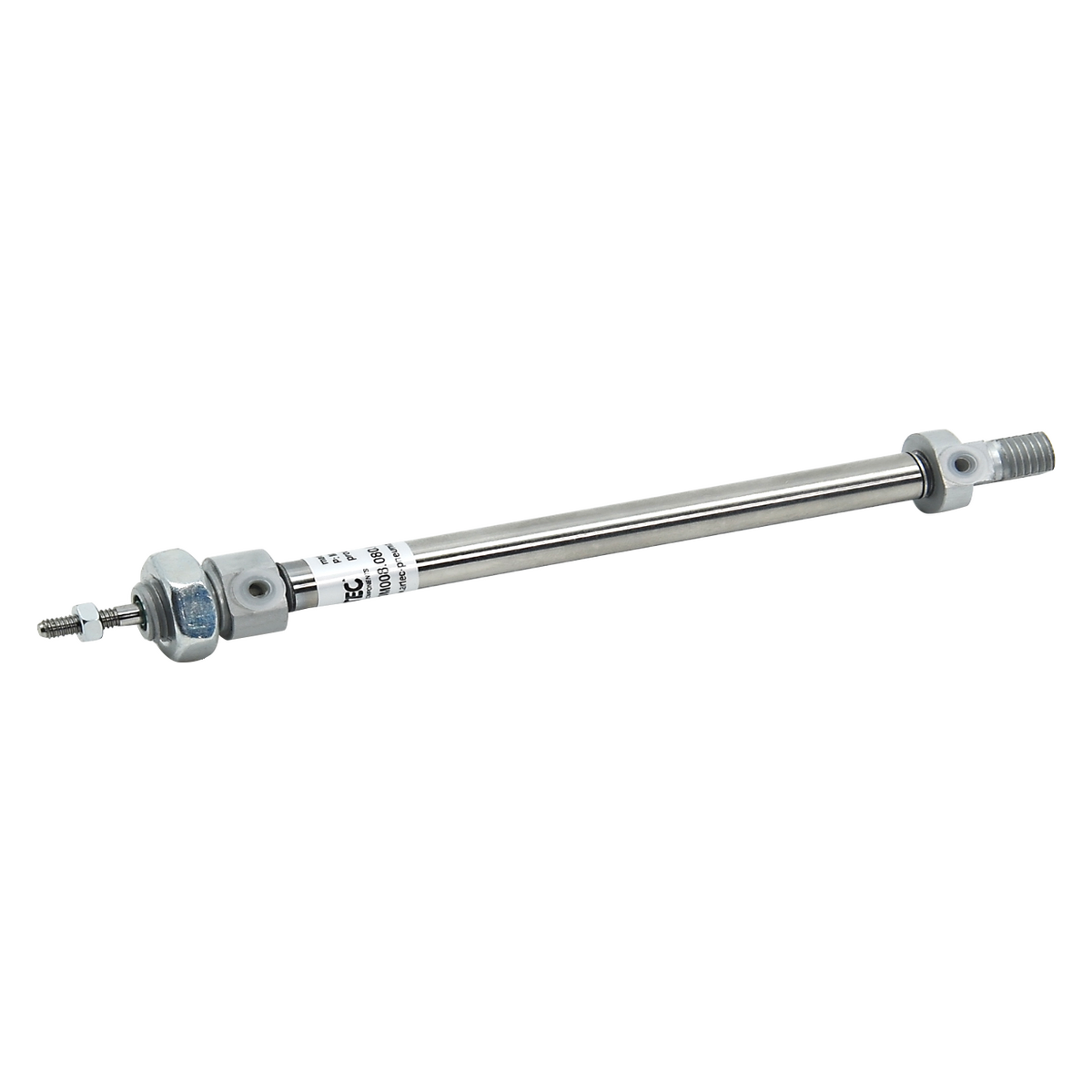

ARTEC ISO6432 MICRO DAM MALE 8MM BORE, 50MM STK
Cylinder Type | Rod |
Cylinder Style | ISO 6432 |
Actuation | Double |
Bore Diameter (mm) | 8 |
Stroke Length (mm) | 80 |
Body Construction | AISI 304 Stainless Steel |
Rod Diameter (mm) | 4 |
Rod Type | Metric Single |
Rod Thread | Male Fine |
Rod Material | AISI 303 Stainless Steel Hard Chrome Plated |
Rod Anti-Rotation | No |
Mounting Style | End |
Seal Material | PU Polyurethane |
Rod Seal | PU Polyurethane |
Rod Bearing | Bronze Oil Filled |
Port Thread | Metric |
Port location | Top |
Sensor Magnet | Yes |
Brand | ARTEC® |
Cushions | Bumper |
Made in Italy | Yes |
Port Size | M5 |
Pressure Maximum (bar) | 10 |
Rod Thread Size | M4 |
