ODM008.160.GS.M

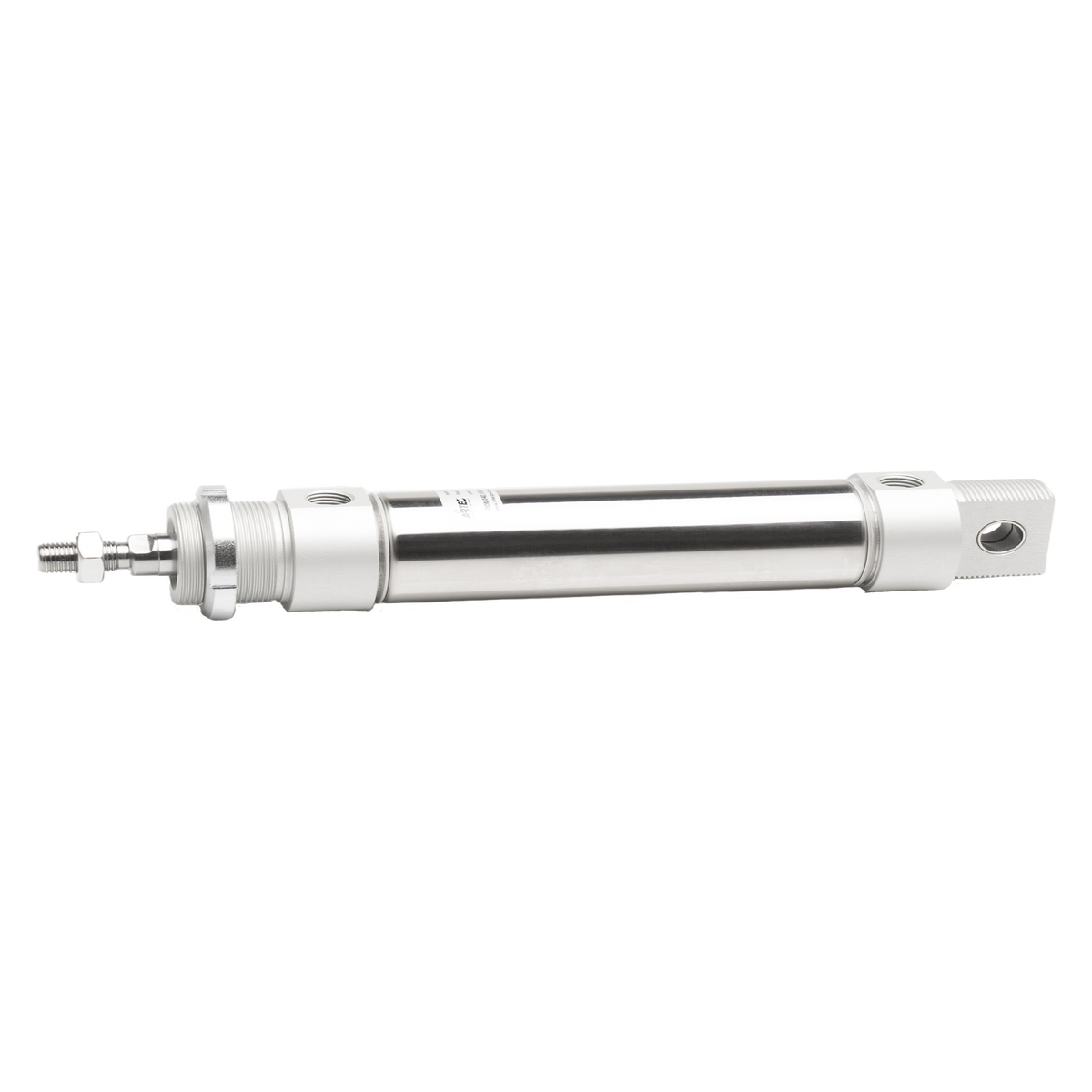

ARTEC ISO6432 MICRO DAM MALE 8MM BORE, 160MM STK

Cylinder Type Rod
Cylinder Style ISO 6432
Actuation Double
Bore Diameter (mm) 8
Stroke Length (mm) 160
Body Construction AISI 304 Stainless Steel
Rod Diameter (mm) 4
Rod Type Metric Single
Rod Thread Male Fine
Rod Material AISI 303 Stainless Steel Hard Chrome Plated
Rod Anti-Rotation No
Mounting Style End
Seal Material PU Polyurethane
Rod Seal PU Polyurethane
Rod Bearing Bronze Oil Filled
Port Thread Metric
Port location Top
Sensor Magnet Yes
Brand ARTEC®
Cushions Bumper
Made in Italy Yes
Port Size M5
Pressure Maximum (bar) 10
Rod Thread Size M4
$46.60
