ODM010.025.GS.M

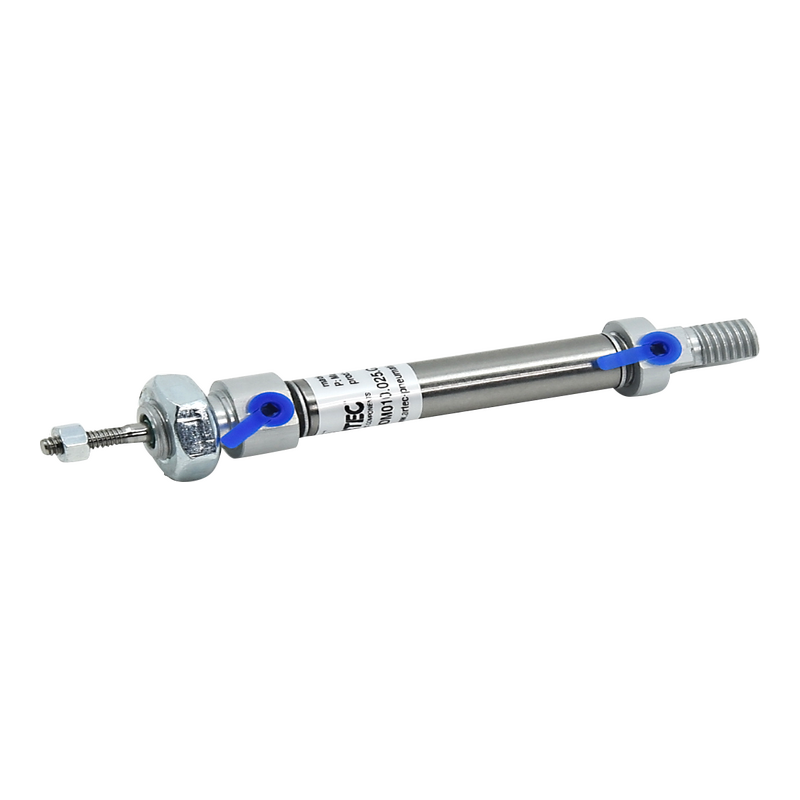

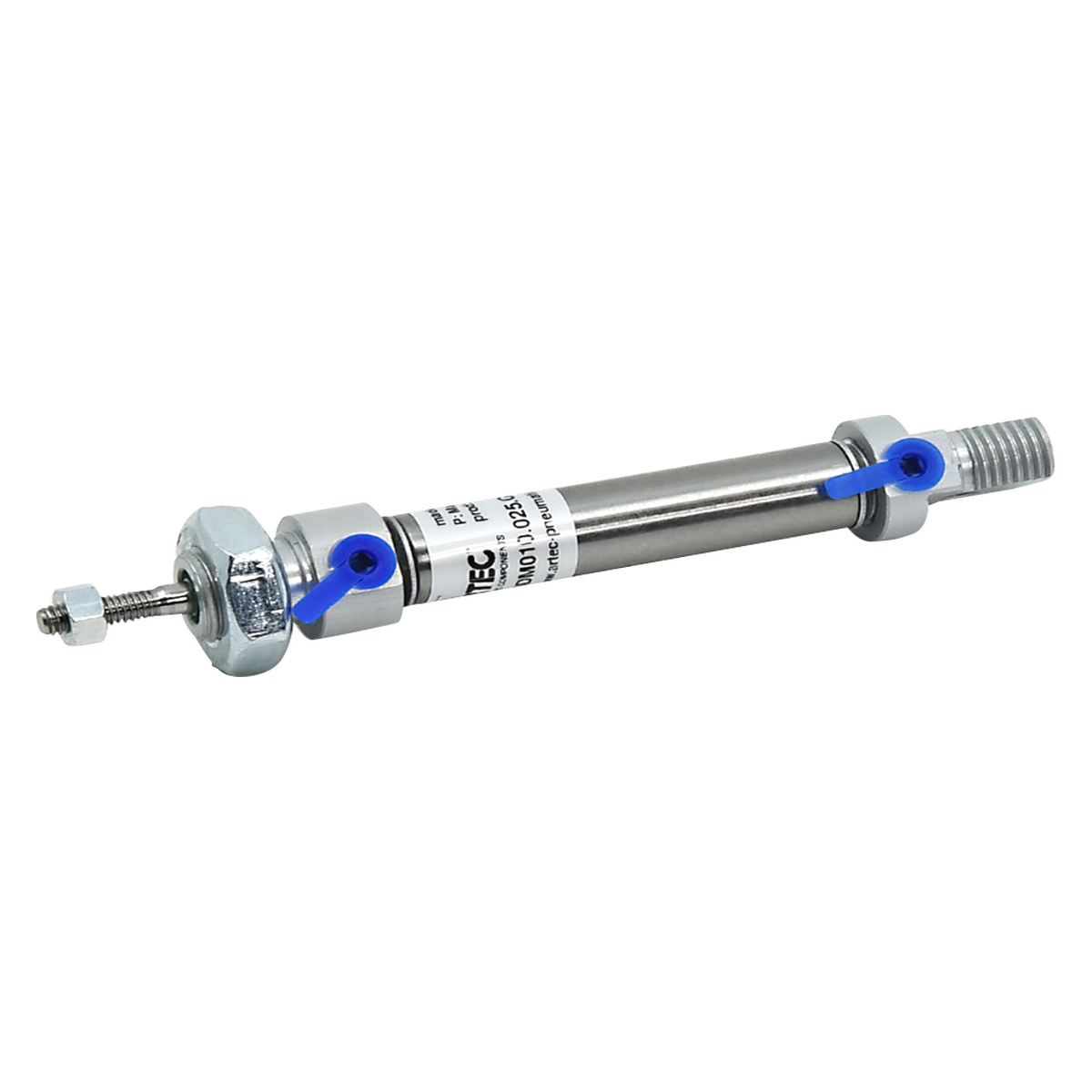

ARTEC ISO6432 MICRO DAM MALE 10MM BORE, 25MM STK

Cylinder Type Rod
Cylinder Style ISO 6432
Actuation Double
Bore Diameter (mm) 10
Stroke Length (mm) 25
Body Construction AISI 304 Stainless Steel
Rod Diameter (mm) 4
Rod Type Metric Single
Rod Thread Male Fine
Rod Material AISI 303 Stainless Steel Hard Chrome Plated
Rod Anti-Rotation No
Mounting Style End
Seal Material PU Polyurethane
Rod Seal PU Polyurethane
Rod Bearing Bronze Oil Filled
Port Thread Metric
Port location Top
Sensor Magnet Yes
Brand ARTEC®
Cushions Bumper
Made in Italy Yes
Port Size M5
Pressure Maximum (bar) 10
Rod Thread Size M4
$39.74
