ODM025.100.GS.MW

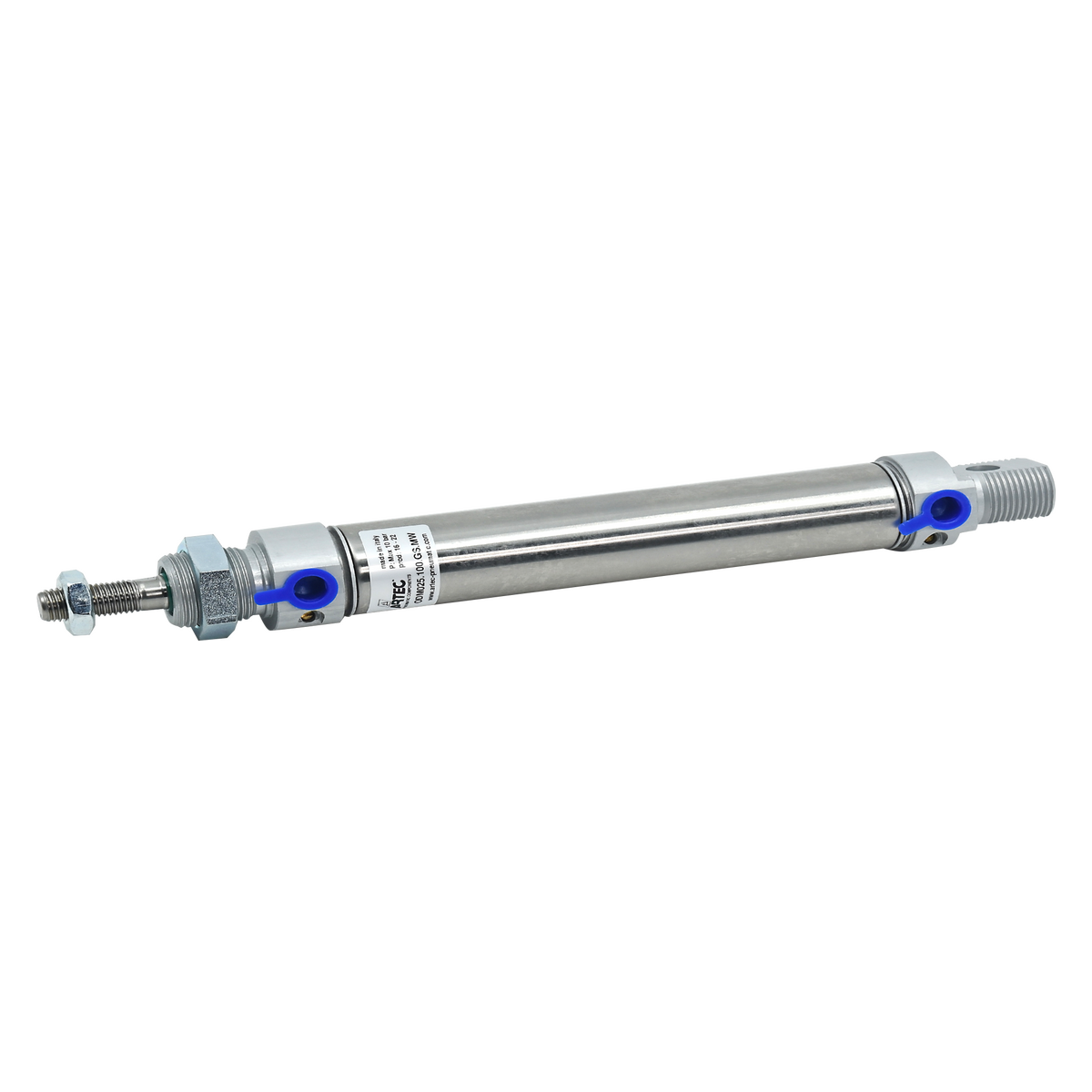

ARTEC ISO6432 MICR DAM CU MALE 25MM BORE, 100MM SK
| Cylinder Type | Rod |
| Cylinder Style | ISO 6432 |
| Actuation | Double |
| Bore Diameter (mm) | 25 |
| Stroke Length (mm) | 100 |
| Body Construction | AISI 304 Stainless Steel |
| Rod Diameter (mm) | 10 |
| Rod Type | Metric Single |
| Rod Thread | Male Fine |
| Rod Material | AISI 303 Stainless Steel Hard Chrome Plated |
| Rod Anti-Rotation | No |
| Mounting Style | End |
| Seal Material | PU Polyurethane |
| Rod Seal | PU Polyurethane |
| Rod Bearing | Bronze Oil Filled |
| Port Thread | Metric |
| Port location | Top |
| Sensor Magnet | Yes |
| Brand | ARTEC® |
| Cushions | Adjustable |
| Made in Italy | Yes |
| Port Size | G1/8 |
| Pressure Maximum (bar) | 10 |
| Rod Thread Size | M10X1.25 |
