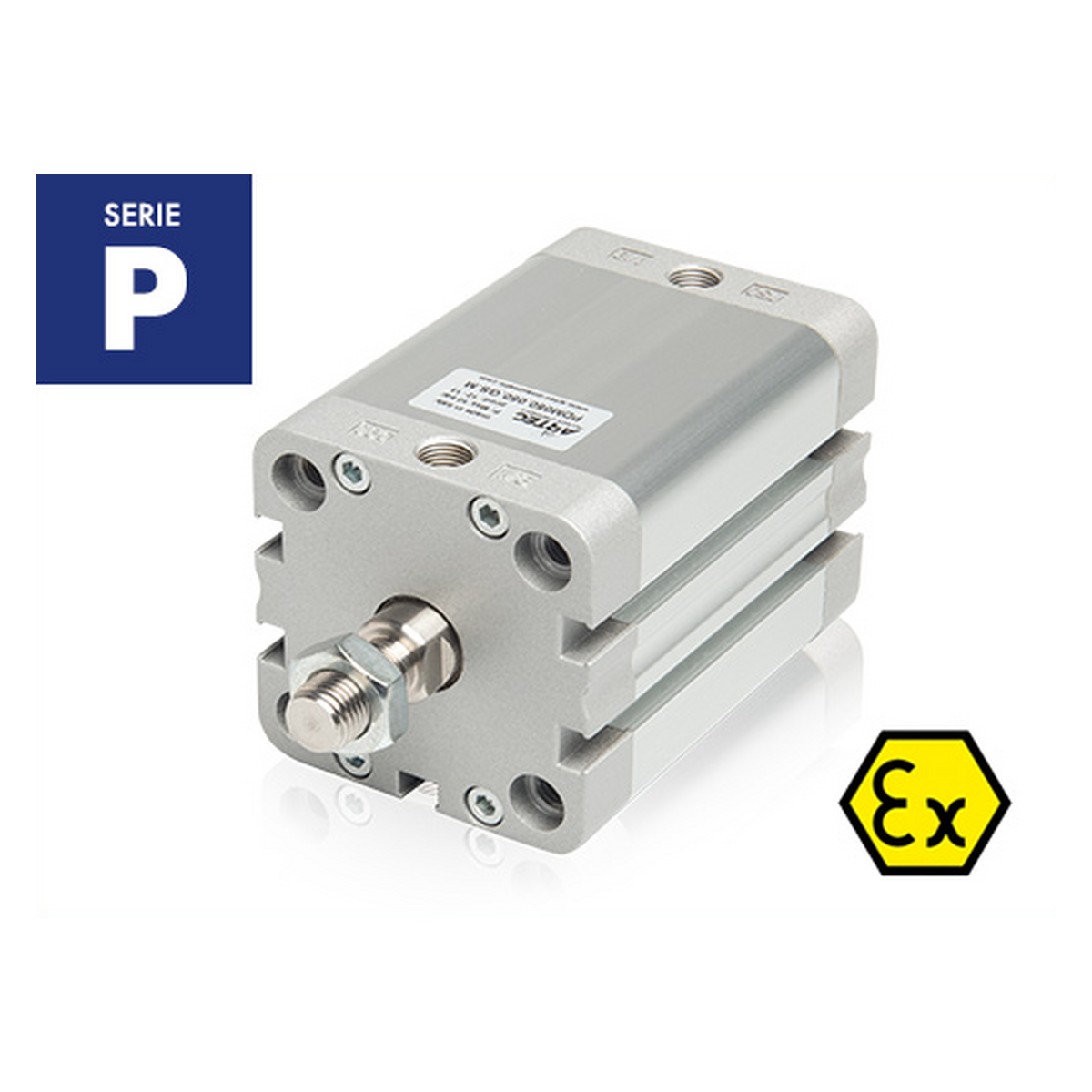

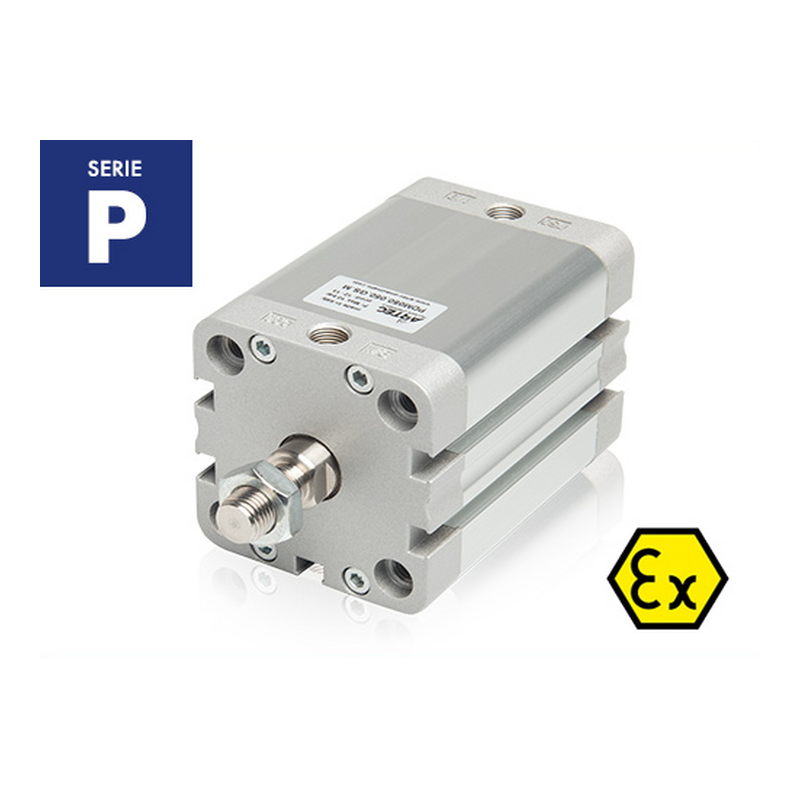

SERIES P - ISO 21287 COMPACT ROD AIR CYLINDERS

  • Available in bores from Ø 20 to Ø 125 mm
  • High temperature execution on request
  • Tandem executions on request: double-thrust, multi-positions, back-to-back
  • Aluminium profile with slots for magnetic sensors
  • On request, in accordance to ATEX Directive 2014/34/EU classification II 2 GD c T4
Click image to enlarge

PDM 20mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM020.005.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 5
$41.51
PDM020.010.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 10
$41.96
PDM020.010.GS.M Double 20 21287 Yes M5 10 Male - M8 Std Parker 10
$42.76
PDM020.015.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 15
$42.36
PDM020.020.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 20
$42.80
PDM020.020.GS.M Double 20 21287 Yes M5 10 Male - M8 Std Parker 20
$43.66
PDM020.025.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 25
$43.24
PDM020.025.GS.M Double 20 21287 Yes M5 10 Male - M8 Std Parker 25
$44.10
PDM020.030.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 30
$43.66
PDM020.040.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 40
$44.52
PDM020.040.GS.M Double 20 21287 Yes M5 10 Male - M8 Std Parker 40
$45.42
PDM020.050.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 50
$45.38
PDM020.060.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 60
$46.26
PDM020.065.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 65
$46.26
PDM020.070.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 70
$46.65
PDM020.080.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 80
$47.50
PDM020.090.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 90
$48.13
PDM020.100.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 100
$48.97
PDM020.110.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 110
$48.97
PDM020.125.GS.F Double 20 21287 Yes M5 10 Female - M6 Std Parker 125
$51.10

PDM 25mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM025.005.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 5
$44.78
PDM025.010.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 10
$45.26
PDM025.015.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 15
$45.74
PDM025.015.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 15
$47.14
PDM025.020.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 20
$46.23
PDM025.025.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 25
$46.73
PDM025.025.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 25
$48.15
PDM025.030.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 30
$47.21
PDM025.030.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 30
$48.67
PDM025.040.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 40
$48.20
PDM025.040.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 40
$49.66
PDM025.050.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 50
$49.18
PDM025.050.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 50
$50.68
PDM025.060.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 60
$50.15
PDM025.060.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 60
$51.68
PDM025.070.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 70
$51.14
PDM025.080.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 80
$52.11
PDM025.080.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 80
$53.71
PDM025.090.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 90
$52.84
PDM025.100.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 100
$53.82
PDM025.100.GS.M Double 25 21287 Yes M5 10 Male - M8 Std Parker 100
$60.97
PDM025.120.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 120
$56.25
PDM025.125.GS.F Double 25 21287 Yes M5 10 Female - M6 Std Parker 125
$56.25

PDM 32mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM032.005.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 5
$49.32
PDM032.010.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 10
$49.90
PDM032.010.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 10
$51.43
PDM032.015.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 15
$50.47
PDM032.015.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 15
$52.03
PDM032.020.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 20
$51.07
PDM032.020.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 20
$52.62
PDM032.020.VA.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 'VA' High Temp 20
$81.57
PDM032.025.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 25
$51.62
PDM032.025.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 25
$53.21
PDM032.030.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 30
$52.20
PDM032.030.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 30
$53.81
PDM032.040.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 40
$53.36
PDM032.040.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 40
$55.00
PDM032.050.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 50
$54.50
PDM032.050.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 50
$56.19
PDM032.060.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 60
$55.66
PDM032.060.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 60
$57.38
PDM032.065.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 65
$55.66
PDM032.070.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 70
$56.81
PDM032.070.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 70
$58.57
PDM032.080.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 80
$57.94
PDM032.080.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 80
$59.75
PDM032.090.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 90
$57.99
PDM032.100.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 100
$59.13
PDM032.100.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 100
$60.97
PDM032.115.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 115
$59.13
PDM032.125.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 125
$61.93
PDM032.130.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 130
$61.93
PDM032.140.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 140
$62.83
PDM032.150.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 150
$62.83
PDM032.160.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 160
$65.88
PDM032.160.GS.M Double 32 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 160
$67.96
PDM032.180.GS.F Double 32 21287 Yes G1/8" 12 Female - M8 Std Parker 180
$65.88

PDM 40mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM040.005.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 5
$56.58
PDM040.005.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 5
$58.33
PDM040.010.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 10
$57.24
PDM040.010.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 10
$59.03
PDM040.015.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 15
$58.79
PDM040.015.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 15
$60.62
PDM040.020.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 20
$58.58
PDM040.025.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 25
$59.24
PDM040.025.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 25
$61.11
PDM040.030.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 30
$59.93
PDM040.040.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 40
$61.24
PDM040.040.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 40
$63.19
PDM040.050.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 50
$62.60
PDM040.050.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 50
$64.57
PDM040.060.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 60
$63.95
PDM040.060.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 60
$65.96
PDM040.065.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 65
$63.95
PDM040.065.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 65
$65.96
PDM040.070.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 70
$65.28
PDM040.070.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 70
$67.35
PDM040.080.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 80
$66.63
PDM040.080.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 80
$68.74
PDM040.090.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 90
$66.68
PDM040.100.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 100
$68.02
PDM040.100.GS.M Double 40 21287 Yes G1/8" 12 Male - M10x1.25 Std Parker 100
$70.16
PDM040.125.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 125
$71.29
PDM040.150.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 150
$75.88
PDM040.160.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 160
$75.88
PDM040.200.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 200
$81.13
PDM040.220.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 220
$81.13
PDM040.250.GS.F Double 40 21287 Yes G1/8" 12 Female - M8 Std Parker 250
$87.70

PDM 50mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM050.010.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 10
$65.55
PDM050.015.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 15
$66.34
PDM050.020.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 20
$67.14
PDM050.020.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 20
$69.28
PDM050.025.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 25
$67.94
PDM050.025.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 25
$70.10
PDM050.030.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 30
$68.72
PDM050.030.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 30
$70.92
PDM050.040.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 40
$70.33
PDM050.040.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 40
$72.57
PDM050.050.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 50
$71.93
PDM050.050.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 50
$74.23
PDM050.060.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 60
$75.88
PDM050.080.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 80
$76.71
PDM050.100.GS.M Double 50 21287 Yes G1/8" 16 Male - M12x1.15 Std Parker 100
$80.90
PDM050.140.GS.F Double 50 21287 Yes G1/8" 16 Female - M10 Std Parker 140
$85.49

PDM 63mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM063.015.GS.F Double 63 21287 Yes G1/8" 16 Female - M10 Std Parker 15
$80.18
PDM063.015.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 15
$82.78
PDM063.025.GS.F Double 63 21287 Yes G1/8" 16 Female - M10 Std Parker 25
$82.15
PDM063.025.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 25
$90.34
PDM063.032.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 32
$93.50
PDM063.040.GS.F Double 63 21287 Yes G1/8" 16 Female - M10 Std Parker 40
$89.33
PDM063.040.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 40
$93.50
PDM063.050.GS.F Double 63 21287 Yes G1/8" 16 Female - M10 Std Parker 50
$87.09
PDM063.050.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 50
$92.17
PDM063.060.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 60
$91.94
PDM063.080.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 80
$96.03
PDM063.100.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 100
$98.16
PDM063.125.GS.F Double 63 21287 Yes G1/8" 16 Female - M10 Std Parker 125
$99.86
PDM063.125.GS.M Double 63 21287 Yes G1/8" 16 Male - M12x1.25 Std Parker 125
$103.14

PDM 80mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM080.025.GS.M Double 80 21287 Yes G1/8" 20 Male - M16x1.50 Std Parker 25
$114.56
PDM080.040.GS.M Double 80 21287 Yes G1/8" 20 Male - M16x1.50 Std Parker 40
$119.09
PDM080.050.GS.M Double 80 21287 Yes G1/8" 20 Male - M16x1.50 Std Parker 50
$122.11
PDM080.060.GS.M Double 80 21287 Yes G1/8" 20 Male - M16x1.50 Std Parker 60
$125.13
PDM080.080.GS.M Double 80 21287 Yes G1/8" 20 Male - M16x1.50 Std Parker 80
$131.17
PDM080.100.GS.M Double 80 21287 Yes G1/8" 20 Male - M16x1.50 Std Parker 100
$134.51

PDM 100mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM100.025.GS.M Double 100 21287 Yes G1/8" 25 Male - M16x1.50 Std Parker 25
$147.96
PDM100.040.GS.M Double 100 21287 Yes G1/8" 25 Male - M16x1.50 Std Parker 40
$153.74
PDM100.050.GS.M Double 100 21287 Yes G1/8" 25 Male - M16x1.50 Std Parker 50
$157.59
PDM100.060.GS.M Double 100 21287 Yes G1/8" 25 Male - M16x1.50 Std Parker 60
$161.47
PDM100.080.GS.M Double 100 21287 Yes G1/8" 25 Male - M16x1.50 Std Parker 80
$169.16
PDM100.100.GS.M Double 100 21287 Yes G1/8" 25 Male - M16x1.50 Std Parker 100
$171.56

PDM 125mm Bore | Double Acting | Estimated Lead-Time: 1-2 business days ARO @ Qty < 4 pcs. Contact factory for lead-time on larger quantities.

Product # Actuation Bore, mm. ISO Standard Magnet Port Size Rod Dia., mm. Rod Thread Seals Stroke, mm.
PDM125.025.GS.M Double 125 21287 Yes G1/8" 25 Male - M20x1.50 Std Parker 25
$246.18
PDM125.040.GS.M Double 125 21287 Yes G1/8" 25 Male - M20x1.50 Std Parker 40
$251.96
PDM125.050.GS.M Double 125 21287 Yes G1/8" 25 Male - M20x1.50 Std Parker 50
$255.83
PDM125.060.GS.M Double 125 21287 Yes G1/8" 25 Male - M20x1.50 Std Parker 60
$259.70
PDM125.080.GS.M Double 125 21287 Yes G1/8" 25 Male - M20x1.50 Std Parker 80
$267.43
PDM125.100.GS.M Double
