PST050.030.GS.L
Model: PST050.030.GS.L

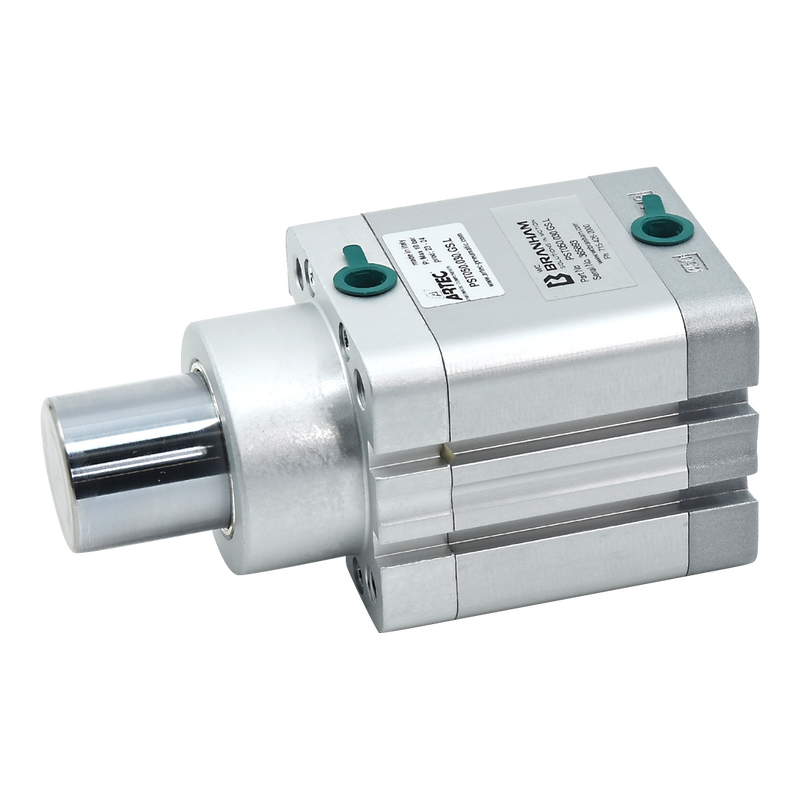

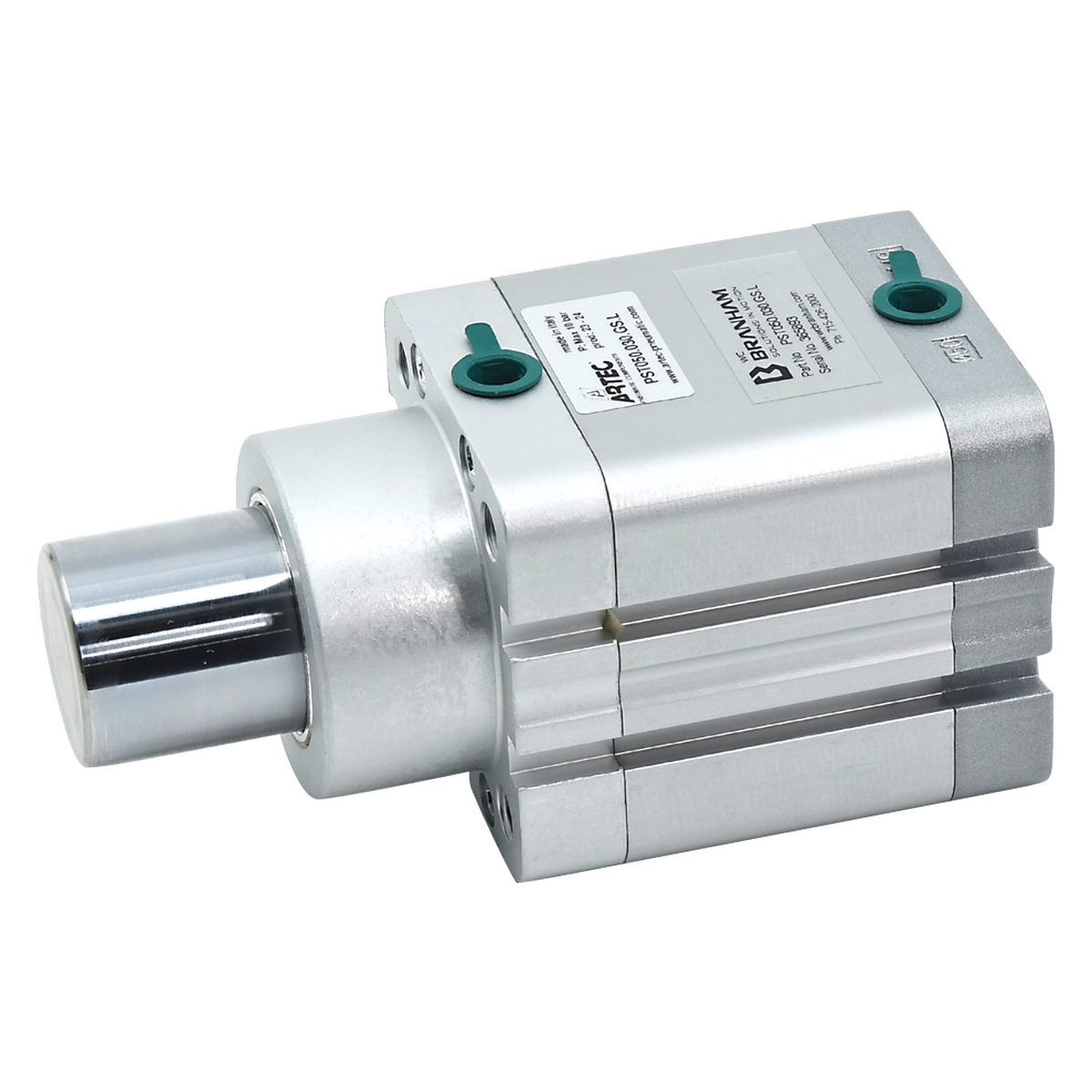

ARTEC STOPPER CYL SAM SMOOTH ROD 50MM BORE, 30MM STK
Cylinder Type | Rod |
Cylinder Style | Stopper ISO 21287 |
Actuation | Single-Spring Extend |
Bore Diameter (mm) | 50 |
Stroke Length (mm) | 30 |
Body Construction | Anodized Aluminum |
Rod Diameter (mm) | 32 |
Rod Type | Metric Single |
Rod Thread | Smooth |
Rod Material | AISI 303 Stainless Steel Hard Chrome Plated |
Rod Anti-Rotation | No |
Mounting Style | Thru |
Seal Material | PU Polyurethane |
Rod Seal | PU Polyurethane |
Rod Bearing | Steel + PTFE |
Port Thread | Metric |
Port location | Top |
Sensor Magnet | Yes |
Brand | ARTEC® |
Cushions | Bumper |
Made in Italy | Yes |
Port Size | G1/8 |
Pressure Maximum (bar) | 10 |
Rod Thread Size | Smooth |
