1625-023D

Model: DTF253D

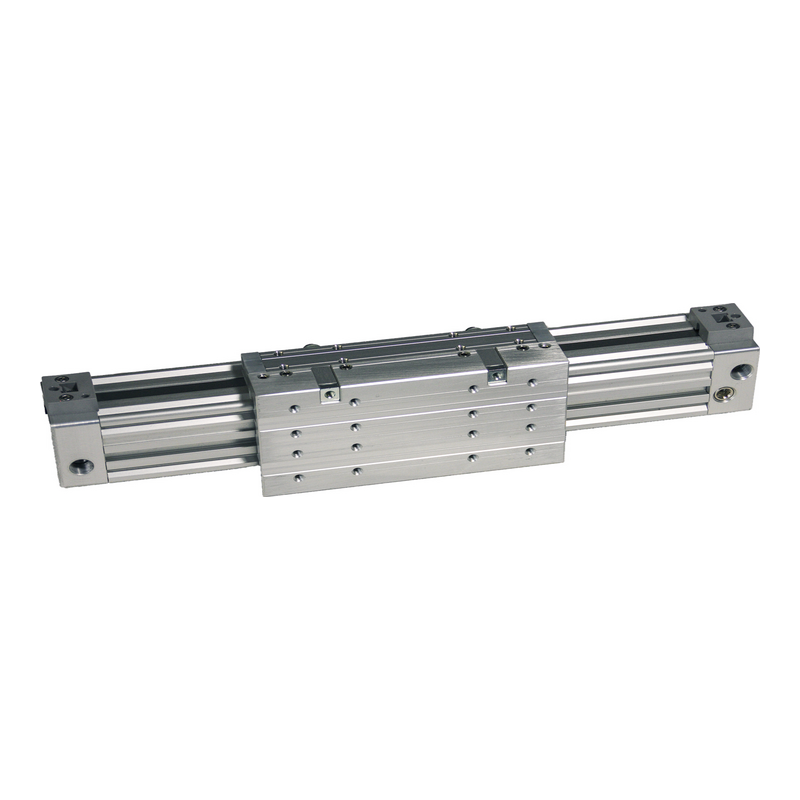

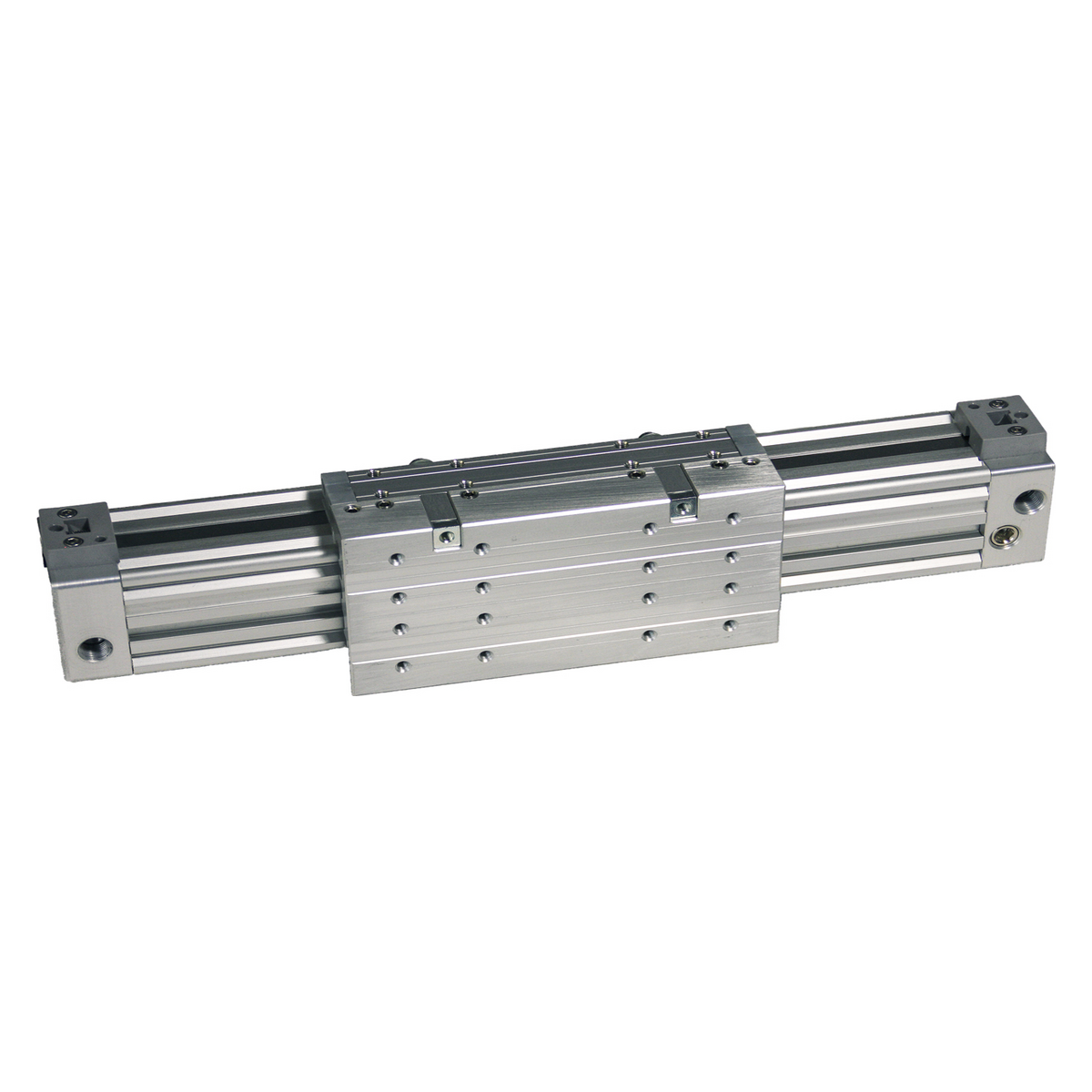

DURATRK® DTF253D Guided Rodless Cylinder, 25mm Bore w/Side Front, Single End Right Hand BSPP Porting.

  • High-strength aluminum extruded body to reduce deflection and decrease slot width under pressure
  • High loading in all directions
  • Stroke lengths to 19.75 feet. Consult factory for longer stroke length
  • 0-stroke interchangeable with other brand.
  • Front and side wipers attached to the yoke
  • V-grooves in tube profile for attaching many accessories
  • Pin-type air cushioning
  • Guiding over the entire stroke length
  • Same-side porting available
  • Interchangeable wear parts

Attributes

Model # DTF253D
Bore, mm. 25
Cushion Length .71 in. / 18 mm.
Fx lbs. @ 87 PSI/ 6 bar 60 lbf. / 270 N
Fy lbs. | Fz lbs. 179 | 179
Mx in. lbs. 88
My in. lbs. 177
Mz in. lbs. 177
Port Loc. | Port Type Bottom | Single End, RH, BSPP
Weight 1.98 lb. / .9 kg.
Weight Stroke/ in. .15 lb.
