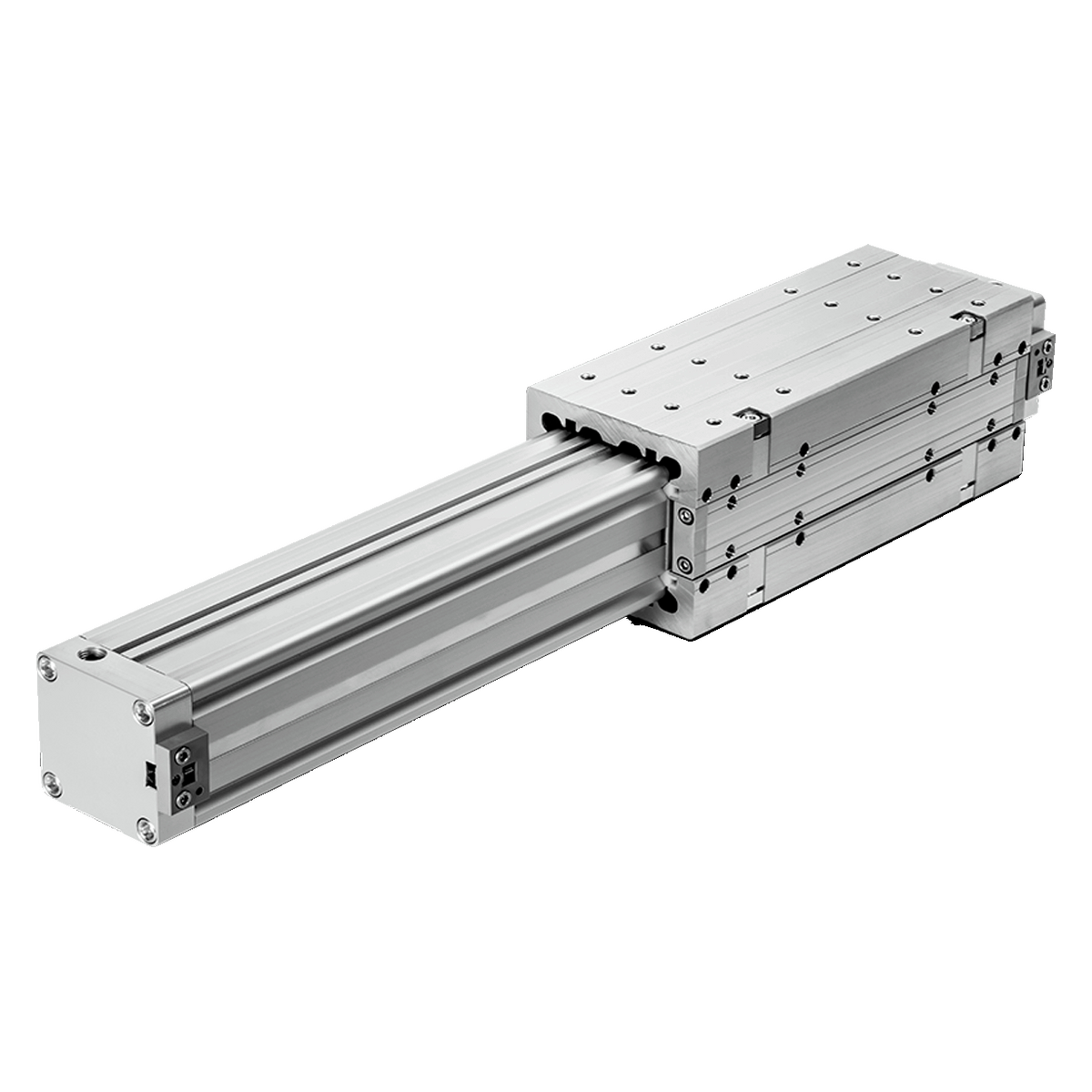

DTFD - Dual Guided Rodless Cylinder
The DTFD Dual Guided Cylinder is based on the DTS platform. As its name implies, two external guides are attached to the piston/yoke assembly - one on each side. The DTFD is especially suited for high loads and moments. The additional guiding carrier increases performance by 60% over the DTF single guided models. The additional guide can also be easily mounted to an existing DTF cylinder in the field. The DTFD has the same 0-stroke length as other brands. Piston magnet standard.
- High-strength aluminum extruded body to reduce deflection and decrease slot width under pressure
- High loading in all directions
- Stroke lengths to 19.75 feet. Consult factory for longer stroke lengths
- 0-stroke interchangeable with other brands
- Front and side wipers attached to the yoke
- V-grooves in tube profile for attaching many accessories
- Pin-type air cushioning
- Guiding over the entire stroke length
- Same-side porting available
- Interchangeable wear parts
Click image to enlarge
DTFD25 | 25mm Bore
| Product # | Model | Port Loc. | Port Type | Fx lbs. @87 PSI/ 6 bar | Fy lbs. | Fz lbs. |
|---|---|---|---|---|
| 1625-041A | DTFD251A | Side Front | Double End, NPT | 60 lbf. / 270 N | 269 | 269 |
| 1625-041B | DTFD251B | Side Front | Single End, RH, NPT | 60 lbf. / 270 N | 269 | 269 |
| 1625-041C | DTFD251C | Side Front | Double End, BSPP | 60 lbf. / 270 N | 269 | 269 |
| 1625-041D | DTFD251D | Side Front | Single End, RH, BSPP | 60 lbf. / 270 N | 269 | 269 |
| 1625-042A | DTFD252A | Side Front | Double End, NPT | 60 lbf. / 270 N | 269 | 269 |
| 1625-042B | DTFD252B | Side Front | Single End, RH, NPT | 60 lbf. / 270 N | 269 | 269 |
| 1625-042C | DTFD252C | Side Front | Double End, BSPP | 60 lbf. / 270 N | 269 | 269 |
| 1625-042D | DTFD252D | Side Front | Single End, RH, BSPP | 60 lbf. / 270 N | 269 | 269 |
| 1625-043A | DTFD253A | Side Front | Double End, NPT | 60 lbf. / 270 N | 269 | 269 |
| 1625-043B | DTFD253B | Side Front | Single End, RH, NPT | 60 lbf. / 270 N | 269 | 269 |
| 1625-043C | DTFD253C | Side Front | Double End, BSPP | 60 lbf. / 270 N | 269 | 269 |
| 1625-043D | DTFD253D | Side Front | Single End, RH, BSPP | 60 lbf. / 270 N | 269 | 269 |
DTFD32 | 32mm Bore
| Product # | Model | Port Loc. | Port Type | Fx lbs. @87 PSI/ 6 bar | Fy lbs. | Fz lbs. |
|---|---|---|---|---|
| 1632-041A | DTFD321A | Single Front | Double End, NPT | 98 lbf. / 440 N | 404 | 404 |
| 1632-041B | DTFD321B | Side Front | Single End, RH, NPT | 98 lbf. / 440 N | 404 | 404 |
| 1632-041C | DTFD321C | Single Front | Double End, BSPP | 98 lbf. / 440 N | 404 | 404 |
| 1632-041D | DTFD321D | Side Front | Single End, RH, BSPP | 98 lbf. / 440 N | 404 | 404 |
| 1632-042A | DTFD322A | Single Front | Double End, NPT | 98 lbf. / 440 N | 404 | 404 |
| 1632-042B | DTFD322B | Side Front | Single End, RH, NPT | 98 lbf. / 440 N | 404 | 404 |
| 1632-042C | DTFD322C | Single Front | Double End, BSPP | 98 lbf. / 440 N | 404 | 404 |
| 1632-042D | DTFD322D | Side Front | Single End, RH, BSPP | 98 lbf. / 440 N | 404 | 404 |
| 1632-043A | DTFD323A | Single Front | Double End, NPT | 98 lbf. / 440 N | 404 | 404 |
| 1632-043B | DTFD323B | Side Front | Single End, RH, NPT | 98 lbf. / 440 N | 404 | 404 |
| 1632-043C | DTFD323C | Single Front | Double End, BSPP | 98 lbf. / 440 N | 404 | 404 |
| 1632-043D | DTFD323D | Side Front | Single End, RH, BSPP | 98 lbf. / 440 N | 404 | 404 |
DTFD40 | 40mm Bore
| Product # | Model | Port Loc. | Port Type | Fx lbs. @87 PSI/ 6 bar | Fy lbs. | Fz lbs. |
|---|---|---|---|---|
| 1640-041A | DTFD401A | Single Front | Double End, NPT | 152 lbf. / 680 | 539 | 539 |
| 1640-041B | DTFD401B | Side Front | Single End, RH, NPT | 152 lbf. / 680 | 539 | 539 |
| 1640-041C | DTFD401C | Single Front | Double End, BSPP | 152 lbf. / 680 | 539 | 539 |
| 1640-041D | DTFD401D | Side Front | Single End, RH, BSPP | 152 lbf. / 680 | 539 | 539 |
| 1640-042A | DTFD402A | Single Front | Double End, NPT | 152 lbf. / 680 | 539 | 539 |
| 1640-042B | DTFD402B | Side Front | Single End, RH, NPT | 152 lbf. / 680 | 539 | 539 |
| 1640-042C | DTFD402C | Single Front | Double End, BSPP | 152 lbf. / 680 | 539 | 539 |
| 1640-042D | DTFD402D | Side Front | Single End, RH, BSPP | 152 lbf. / 680 | 539 | 539 |
| 1640-043A | DTFD403A | Single Front | Double End, NPT | 152 lbf. / 680 | 539 | 539 |
| 1640-043B | DTFD403B | Side Front | Single End, RH, NPT | 152 lbf. / 680 | 539 | 539 |
| 1640-043C | DTFD403C | Single Front | Double End, BSPP | 152 lbf. / 680 | 539 | 539 |
| 1640-043D | DTFD403D | Side Front | Single End, RH, BSPP | 152 lbf. / 680 | 539 | 539 |
DTFD50 | 50mm Bore
| Product # | Model | Port Loc. | Port Type | Fx lbs. @87 PSI/ 6 bar | Fy lbs. | Fz lbs. |
|---|---|---|---|---|
| 1650-041A | DTFD501A | Single Front | Double End, NPT | 238 lbf. / 1060 N | 719 | 719 |
| 1650-041B | DTFD501B | Side Front | Single End, RH, NPT | 238 lbf. / 1060 N | 719 | 719 |
| 1650-041C | DTFD501C | Single Front | Double End, BSPP | 238 lbf. / 1060 N | 719 | 719 |
| 1650-041D | DTFD501D | Side Front | Single End, RH, BSPP | 238 lbf. / 1060 N | 719 | 719 |
| 1650-042A | DTFD502A | Single Front | Double End, NPT | 238 lbf. / 1060 N | 719 | 719 |
| 1650-042B | DTFD502B | Side Front | Single End, RH, NPT | 238 lbf. / 1060 N | 719 | 719 |
| 1650-042C | DTFD502C | Single Front | Double End, BSPP | 238 lbf. / 1060 N | 719 | 719 |
| 1650-042D | DTFD502D | Side Front | Single End, RH, BSPP | 238 lbf. / 1060 N | 719 | 719 |
| 1650-043A | DTFD503A | Single Front | Double End, NPT | 238 lbf. / 1060 N | 719 | 719 |
| 1650-043B | DTFD503B | Side Front | Single End, RH, NPT | 238 lbf. / 1060 N | 719 | 719 |
| 1650-043C | DTFD503C | Single Front | Double End, BSPP | 238 lbf. / 1060 N | 719 | 719 |
| 1650-043D | DTFD503D | Side Front | Single End, RH, BSPP | 238 lbf. / 1060 N | 719 | 719 |
DTFD63 | 63mm Bore
| Product # | Model | Port Loc. | Port Type | Fx lbs. @87 PSI/ 6 bar | Fy lbs. | Fz lbs. |
|---|---|---|---|---|
| 1663-041A | DTFD631A | Single Front | Double End, NPT | 377 lbf. / 1680 N | 944 | 944 |
| 1663-041B | DTFD631B | Side Front | Single End, RH, NPT | 377 lbf. / 1680 N | 944 | 944 |
| 1663-041C | DTFD631C | Single Front | Double End, BSPP | 377 lbf. / 1680 N | 944 | 944 |
| 1663-041D | DTFD631D | Single Front | Double End, BSPP | 377 lbf. / 1680 N | 944 | 944 |
| 1663-042A | DTFD632A | Single Front | Double End, NPT | 377 lbf. / 1680 N | 944 | 944 |
| 1663-042B | DTFD632B | Side Front | Single End, RH, NPT | 377 lbf. / 1680 N | 944 | 944 |
| 1663-042C | DTFD632C | Single Front | Double End, BSPP | 377 lbf. / 1680 N | 944 | 944 |
| 1663-042D | DTFD632D | Single Front | Double End, BSPP | 377 lbf. / 1680 N | 944 | 944 |
| 1663-043A | DTFD633A | Single Front | Double End, NPT | 377 lbf. / 1680 N | 944 | 944 |
| 1663-043B | DTFD633B | Side Front | Single End, RH, NPT | 377 lbf. / 1680 N | 944 | 944 |
| 1663-043C | DTFD633C | Single Front | Double End, BSPP | 377 lbf. / 1680 N | 944 | 944 |
| 1663-043D | DTFD633D | Single Front | Double End, BSPP | 377 lbf. / 1680 N | 944 | 944 |
