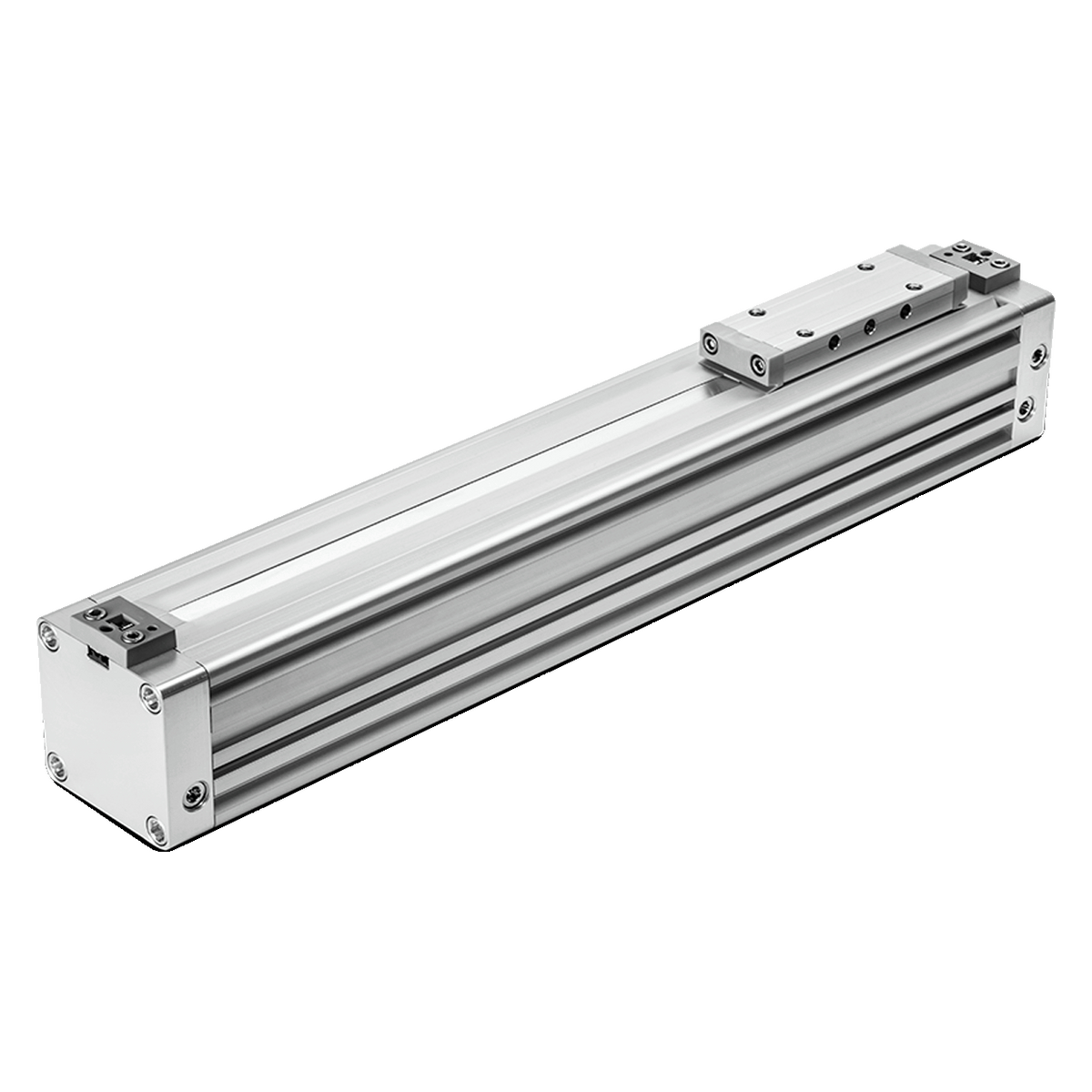

DTK - Short Compact Rodless Cylinder

Our short cylinder. The DTK has a 0-stroke which is reduced by up to 42%. It may even be used to replace piston-rod type cylinders because of its short basic length.

  • High-strength aluminum extruded body to reduce deflection and decrease slot width under pressure
  • High loading in all directions
  • Stroke lengths to 19.75 feet. Consult factory for longer stroke lengths
  • 0-stroke interchangeable with other brands
  • Front and side wipers attached to the yoke
  • V-grooves in tube profile for attaching many accessories
  • Pin-type air cushioning
  • Guiding over the entire stroke length
  • Same-side porting available
  • Interchangeable wear parts
Request a Quote View Brochure
Click image to enlarge

DTK18 | 18mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1618-011C DTK181C Side Front | Double End, BSPP 31 lbf. / 140 N 9 | 31
1618-012C DTK182C Side Rear | Double End, BSPP 31 lbf. / 140 N 9 | 31
1618-013C DTK183C Bottom | Double End, BSPP 31 lbf. / 140 N 9 | 31

DTK25 | 25mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1625-011A DTK251A Side Front | Double End, NPT 60 lbf. / 270 N 12 | 51
1625-011B DTK251B Side Front | Single End, RH, NPT 60 lbf. / 270 N 12 | 51
1625-011C DTK251C Side Front | Double End, BSPP 60 lbf. / 270 N 12 | 51
1625-011D DTK251D Side Front | Single End, RH, BSPP 60 lbf. / 270 N 12 | 51
1625-012A DTK252A Side Rear | Double End, NPT 60 lbf. / 270 N 12 | 51
1625-012B DTK252B Side Rear | Single End, RH, NPT 60 lbf. / 270 N 12 | 51
1625-012C DTK252C Side Rear | Double End, BSPP 60 lbf. / 270 N 12 | 51
1625-012D DTK252D Side Rear | Single End, RH, BSPP 60 lbf. / 270 N 12 | 51
1625-013A DTK253A Bottom | Double End, NPT 60 lbf. / 270 N 12 | 51
1625-013B DTK253B Bottom | Single End, RH, NPT 60 lbf. / 270 N 12 | 51
1625-013C DTK253C Bottom | Double End, BSPP 60 lbf. / 270 N 12 | 51
1625-013D DTK253D Bottom | Single End, RH, BSPP 60 lbf. / 270 N 12 | 51

DTK32 | 32mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1632-011A DTK321A Side Front | Double End, NPT 98 lbf. / 440 N 15 | 71
1632-011B DTK321B Side Front | Single End, RH, NPT 98 lbf. / 440 N 15 | 71
1632-011C DTK321C Side Front | Double End, BSPP 98 lbf. / 440 N 15 | 71
1632-011D DTK321D Side Front | Single End, RH, BSPP 98 lbf. / 440 N 15 | 71
1632-012A DTK322A Side Rear | Double End, NPT 98 lbf. / 440 N 15 | 71
1632-012B DTK322B Side Rear | Single End, RH, NPT 98 lbf. / 440 N 15 | 71
1632-012C DTK322C Side Rear | Double End, BSPP 98 lbf. / 440 N 15 | 71
1632-012D DTK322D Side Rear | Single End, RH, BSPP 98 lbf. / 440 N 15 | 71
1632-013A DTK323A Bottom | Double End, NPT 98 lbf. / 440 N 15 | 71
1632-013B DTK323B Bottom | Single End, RH, NPT 98 lbf. / 440 N 15 | 71
1632-013C DTK323C Bottom | Double End, BSPP 98 lbf. / 440 N 15 | 71
1632-013D DTK323D Side Rear | Single End, RH, BSPP 98 lbf. / 440 N 15 | 71

DTK40 | 40mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1640-011A DTK401A Side Rear | Double End, NPT 152 lbf. / 680 N 22 | 89
1640-011B DTK401B Side Front | Single End, RH, NPT 152 lbf. / 680 N 22 | 89
1640-011C DTK401C Side Front | Double End, BSPP 152 lbf. / 680 N 22 | 89
1640-011D DTK401D Side Front | Single End, RH, BSPP 152 lbf. / 680 N 22 | 89
1640-012A DTK402A Side Rear | Double End, NPT 152 lbf. / 680 N 22 | 89
1640-012B DTK402B Side Rear | Single End, RH, NPT 152 lbf. / 680 N 22 | 89
1640-012C DTK402C Side Rear | Double End, BSPP 152 lbf. / 680 N 22 | 89
1640-012D DTK402D Side Rear | Single End, RH, BSPP 152 lbf. / 680 N 22 | 89
1640-013A DTK403A Bottom | Double End, NPT 152 lbf. / 680 N 22 | 89
1640-013B DTK403B Bottom | Single End, RH, NPT 152 lbf. / 680 N 22 | 89
1640-013C DTK403C Bottom | Double End, BSPP 152 lbf. / 680 N 22 | 89
1640-013D DTK403D Bottom | Single End, RH, BSPP 152 lbf. / 680 N 22 | 89

DTK50 | 50mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1650-011A DTK501A Side Front | Double End, NPT 238 lbf. / 1060 N 31 | 107
1650-011B DTK501B Side Front | Single End, RH, NPT 238 lbf. / 1060 N 31 | 107
1650-011C DTK501C Side Front | Double End, BSPP 238 lbf. / 1060 N 31 | 107
1650-011D DTK501D Side Front | Single End, RH, BSPP 238 lbf. / 1060 N 31 | 107
1650-012A DTK502A Side Rear | Double End, NPT 238 lbf. / 1060 N 31 | 107
1650-012B DTK502B Side Rear | Single End, RH, NPT 238 lbf. / 1060 N 31 | 107
1650-012C DTK502C Side Rear | Double End, BSPP 238 lbf. / 1060 N 31 | 107
1650-012D DTK502D Side Rear | Single End, RH, BSPP 238 lbf. / 1060 N 31 | 107
1650-013A DTK503A Bottom | Double End, NPT 238 lbf. / 1060 N 31 | 107
1650-013B DTK503B Bottom | Single End, RH, NPT 238 lbf. / 1060 N 31 | 107
1650-013C DTK503C Bottom | Double End, BSPP 238 lbf. / 1060 N 31 | 107
1650-013D DTK503D Bottom | Single End, RH, BSPP 238 lbf. / 1060 N 31 | 107

DTK63 | 63mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1663-011A DTK631A Side Front | Double End, NPT 377 lbf. / 1680 N 40 | 132
1663-011B DTK631B Side Front | Single End, RH, NPT 377 lbf. / 1680 N 40 | 132
1663-011C DTK631C Side Front | Double End, BSPP 377 lbf. / 1680 N 40 | 132
1663-011D DTK631D Side Front | Single End, RH, BSPP 377 lbf. / 1680 N 40 | 132
1663-012A DTK632A Side Rear | Double End, NPT 377 lbf. / 1680 N 40 | 132
1663-012B DTK632B Side Rear | Single End, RH, NPT 377 lbf. / 1680 N 40 | 132
1663-012C DTK632C Side Rear | Double End, BSPP 377 lbf. / 1680 N 40 | 132
1663-012D DTK632D Side Rear | Single End, RH, BSPP 377 lbf. / 1680 N 40 | 132
1663-013A DTK633A Bottom | Double End, NPT 377 lbf. / 1680 N 40 | 132
1663-013B DTK633B Bottom | Single End, RH, NPT 377 lbf. / 1680 N 40 | 132
1663-013C DTK633C Bottom | Double End, BSPP 377 lbf. / 1680 N 40 | 132
1663-013D DTK633D Bottom | Single End, RH, BSPP 377 lbf. / 1680 N 40 | 132
