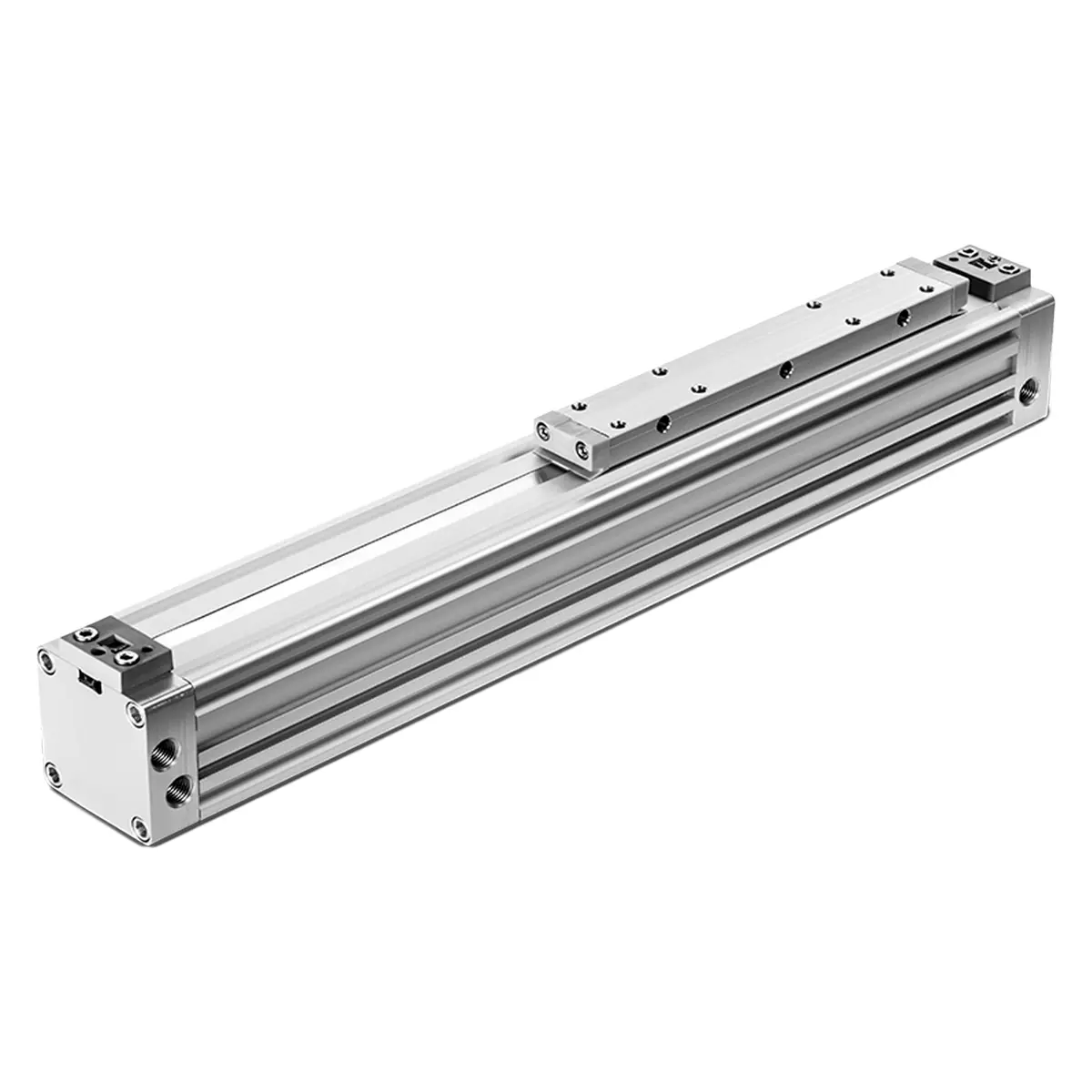

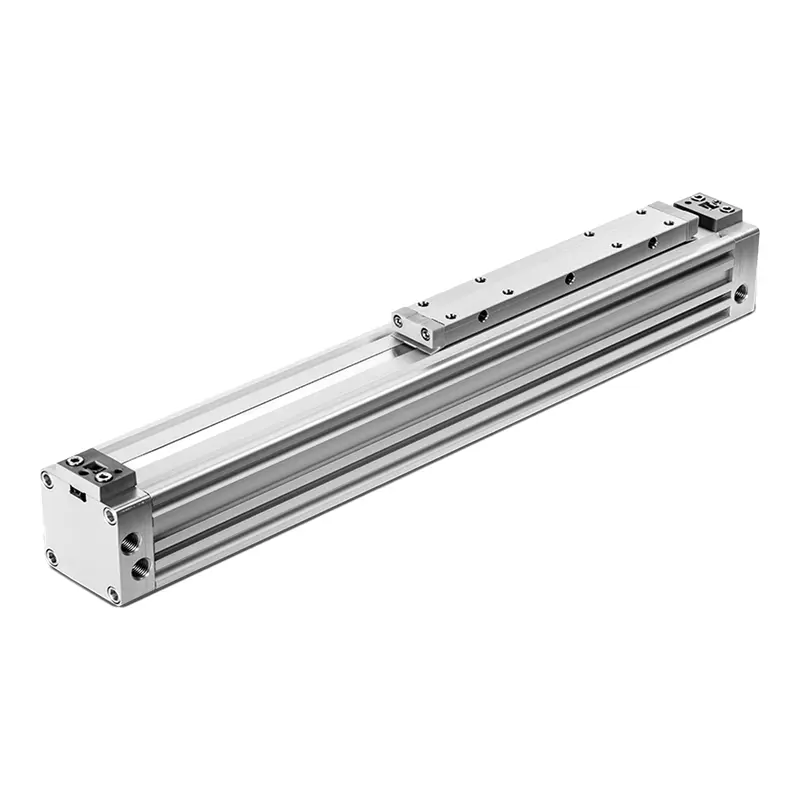

DTS - Standard Rodless Cylinder

Our standard cylinder. It has an identical length at 0-stroke as most competitors making it interchangeable.

  • High-strength aluminum extruded body to reduce deflection and decrease slot width under pressure
  • High loading in all directions
  • Stroke lengths to 19.75 feet. Consult factory for longer stroke lengths
  • 0-stroke interchangeable with other brands
  • Front and side wipers attached to the yoke
  • V-grooves in tube profile for attaching many accessories
  • Pin-type air cushioning
  • Guiding over the entire stroke length
  • Same-side porting available
  • Interchangeable wear parts
Click image to enlarge

DTS18 | 18 mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1618-001C DTS181C Side Front | Double End, BSPP 31 lbf. / 140 N 18 | 67
1618-002C DTS182C Side Rear | Double End, BSPP 31 lbf. / 140 N 18 | 67
1618-003C DTS183C Bottom | Double End, BSPP 31 lbf. / 140 N 18 | 67

DTS25 | 25 mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1625-001A DTS251A Side Front | Double End, NPT 60 lbf. / 270 N 24 | 107
1625-001B DTS251B Side Front | Single End, RH, NPT 60 lbf. / 270 N 24 | 107
1625-001C DTS251C Side Front | Double End, BSPP 60 lbf. / 270 N 24 | 107
1625-001D DTS251D Side Front | Single End, RH, BSPP 60 lbf. / 270 N 24 | 107
1625-002A DTS252A Side Rear | Double End, NPT 60 lbf. / 270 N 24 | 107
1625-002B DTS252B Side Rear | Single End, RH, NPT 60 lbf. / 270 N 24 | 107
1625-002C DTS252C Side Rear | Double End, BSPP 60 lbf. / 270 N 24 | 107
1625-002D DTS252D Side Rear | Single End, RH, BSPP 60 lbf. / 270 N 24 | 107
1625-003A DTS253A Bottom | Double End, NPT 60 lbf. / 270 N 24 | 107
1625-003B DTS253B Bottom | Single End, RH, NPT 60 lbf. / 270 N 24 | 107
1625-003C DTS253C Bottom | Double End, BSPP 60 lbf. / 270 N 24 | 107
1625-003D DTS251A Bottom | Single End, RH, BSPP 60 lbf. / 270 N 24 | 107

DTS32 | 32mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1632-001A DTS321A DTS321C 98 lbf. / 440 N 37 | 146
1632-001B DTS321B Side Front | Single End, RH, NPT 98 lbf. / 440 N 37 | 146
1632-001C DTS321C Side Front | Double End, BSPP 98 lbf. / 440 N 37 | 146
1632-001D DTS321D Side Front | Single End, RH, BSPP 98 lbf. / 440 N 37 | 146
1632-002A DTS322A Side Rear | Double End, NPT 98 lbf. / 440 N 37 | 146
1632-002B DTS322B Side Rear | Single End, RH, NPT 98 lbf. / 440 N 37 | 146
1632-002C DTS322C Side Rear | Double End, BSPP 98 lbf. / 440 N 37 | 146
1632-002D DTS322D Side Rear | Single End, RH, BSPP 98 lbf. / 440 N 37 | 146
1632-003A DTS323A Bottom | Double End, NPT 98 lbf. / 440 N 37 | 146
1632-003B DTS323B Bottom | Single End, RH, NPT 98 lbf. / 440 N 37 | 146
1632-003C DTS323C Bottom | Double End, BSPP 98 lbf. / 440 N 37 | 146
1632-003D DTS323D Bottom | Single End, RH, BSPP 98 lbf. / 440 N 37 | 146

DTS40 | 40mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1640-001A DTS401A Side Front | Double End, NPT 152 lbf. / 680 N 50 | 179
1640-001B DTS401B Side Front | Single End, RH, NPT 152 lbf. / 680 N 50 | 179
1640-001C DTS401C Side Front | Double End, BSPP 152 lbf. / 680 N 50 | 179
1640-001D DTS401D Side Front | Single End, RH, BSPP 152 lbf. / 680 N 50 | 179
1640-002A DTS402A Side Rear | Double End, NPT 152 lbf. / 680 N 50 | 179
1640-002B DTS402B Side Rear | Single End, RH, NPT 152 lbf. / 680 N 50 | 179
1640-002C DTS402C Side Rear | Double End, BSPP 152 lbf. / 680 N 50 | 179
1640-002D DTS402D Side Rear | Single End, RH, BSPP 152 lbf. / 680 N 50 | 179
1640-003A DTS403A Bottom | Double End, NPT 152 lbf. / 680 N 50 | 179
1640-003B DTS403B Bottom | Single End, RH, NPT 152 lbf. / 680 N 50 | 179
1640-003C DTS403C Bottom | Double End, BSPP 152 lbf. / 680 N 50 | 179
1640-003D DTS403D Bottom | Single End, RH, BSPP 152 lbf. / 680 N 50 | 179

DTS50 | 50mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1650-001A DTS501A Side Front | Double End, NPT 238 lbf. / 1060 N 73 | 238
1650-001B DTS501B Side Front | Single End, RH, NPT 238 lbf. / 1060 N 73 | 238
1650-001C DTS501C Side Front | Double End, BSPP 238 lbf. / 1060 N 73 | 238
1650-001D DTS501D Side Front | Single End, RH, BSPP 238 lbf. / 1060 N 73 | 238
1650-002A DTS502A Side Rear | Double End, NPT 238 lbf. / 1060 N 73 | 238
1650-002B DTS502B Side Rear | Single End, RH, NPT 238 lbf. / 1060 N 73 | 238
1650-002C DTS502C Side Rear | Double End, BSPP 238 lbf. / 1060 N 73 | 238
1650-002D DTS502D Side Rear | Single End, RH, BSPP 238 lbf. / 1060 N 73 | 238
1650-003A DTS503A Bottom | Double End, NPT 238 lbf. / 1060 N 73 | 238
1650-003B DTS503B Bottom | Single End, RH, NPT 238 lbf. / 1060 N 73 | 238
1650-003C DTS503C Bottom | Double End, BSPP 238 lbf. / 1060 N 73 | 238
1650-003D DTS503D Bottom | Single End, RH, BSPP 238 lbf. / 1060 N 73 | 238

DTS63 | 63mm Bore

Product # Model Port Loc. | Port Type Fx lbs. @87 PSI / 6 bar Fy lbs. | Fz lbs.
1663-001A DTS631A Side Front | Double End, NPT 377 lbf. / 1680 N 97 | 377
1663-001B DTS631B Side Front | Single End, RH, NPT 377 lbf. / 1680 N 97 | 377
1663-001C DTS631C Side Front | Double End, BSPP 377 lbf. / 1680 N 97 | 377
1663-001D DTS631D Side Front | Single End, RH, BSPP 377 lbf. / 1680 N 97 | 377
1663-002A DTS632A Side Rear | Double End, NPT 377 lbf. / 1680 N 97 | 377
1663-002B DTS632B Side Rear | Single End, RH, NPT 377 lbf. / 1680 N 97 | 377
1663-002C DTS632C Side Rear | Double End, BSPP 377 lbf. / 1680 N 97 | 377
1663-002D DTS632D Side Rear | Single End, RH, BSPP 377 lbf. / 1680 N 97 | 377
1663-003A DTS633A Bottom | Double End, NPT 377 lbf. / 1680 N 97 | 377
1663-003B DTS633B Bottom | Single End, RH, NPT 377 lbf. / 1680 N 97 | 377
1663-003C DTS633C Bottom | Double End, BSPP 377 lbf. / 1680 N 97 | 377
1663-003D DTS633D Bottom | Single End, RH, BSPP 377 lbf. / 1680 N 97 | 377
