1070-0804

Model: GCC1070T

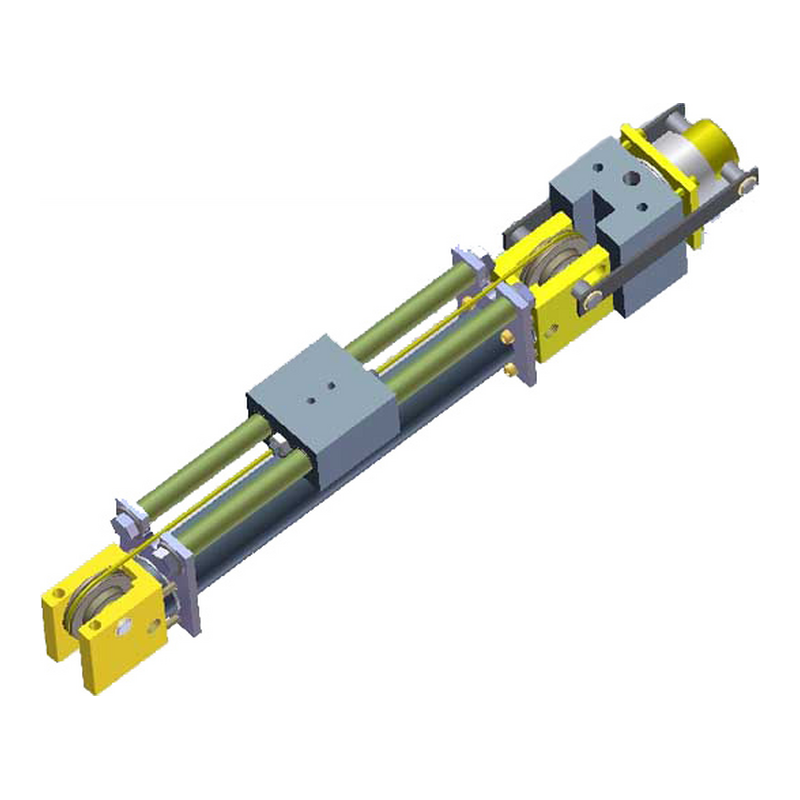

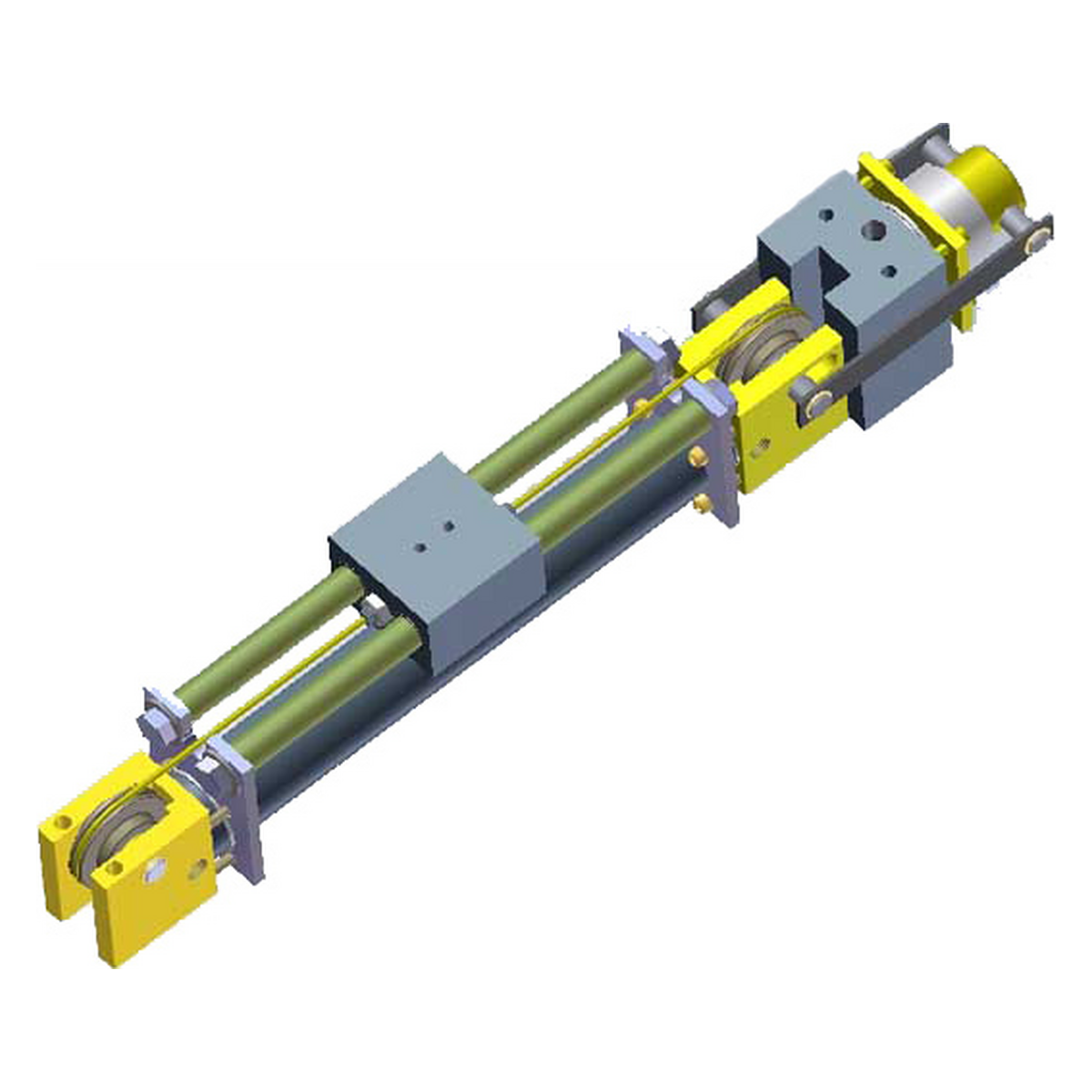

Guided Cable Cylinder, double acting with power stroke in both directions, 3/4 inch bore w/ automatic tensioner.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Fixed orifice cushions
  • 1/2 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Bore, in.3/4
Option(s)Tensioner
Force@100 PSI, lbs.44
Eff. Area, in.2.44
Max. Stroke Length*, in.60
Cable Wire Dia., in.3/64
Cable Nylon O.D., in.3/32
Strand Config7 x 7
Tensile Strength, lbs.270
20% Rule, lbs.54
Click image to enlarge
