Model: GCC1101T

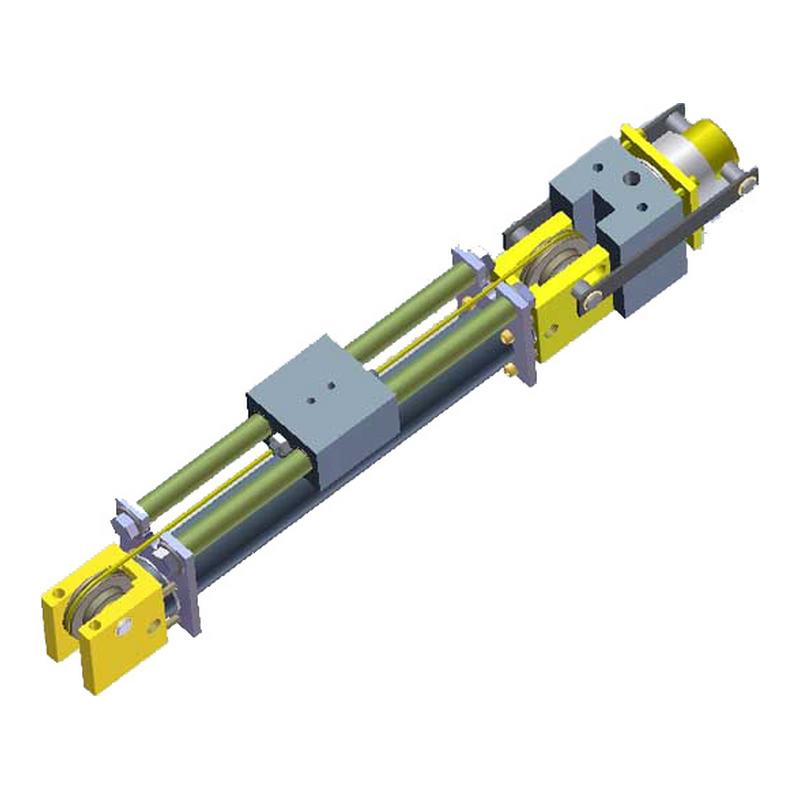

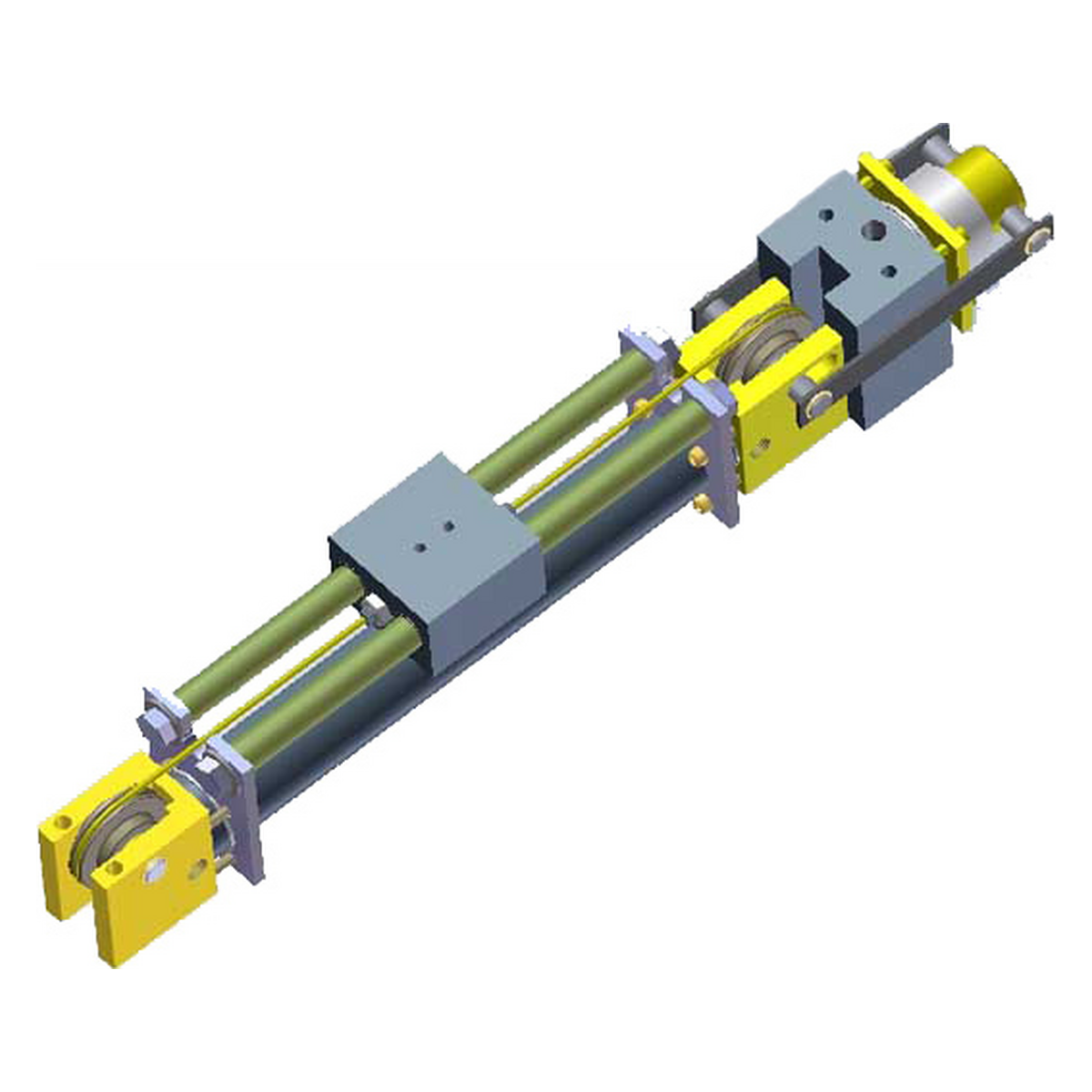

Guided Cable Cylinder, double acting with power stroke in both directions, 1 inch bore w/ automatic tensioner.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Fixed orifice cushions
  • 1/2 inch chrome plated guide rods
  • Igus® guide bearings


Bore, in.1.0
Force@100 PSI, lbs.78
Eff. Area, in.2.78
Max. Stroke Length*, in.60
Cable Wire Dia., in.3/64
Cable Nylon O.D., in.3/32
Strand Config7 x 7
Tensile Strength, lbs.270
20% Rule, lbs.54
Click image to enlarge
