1203-0801

Model: GCC1203T

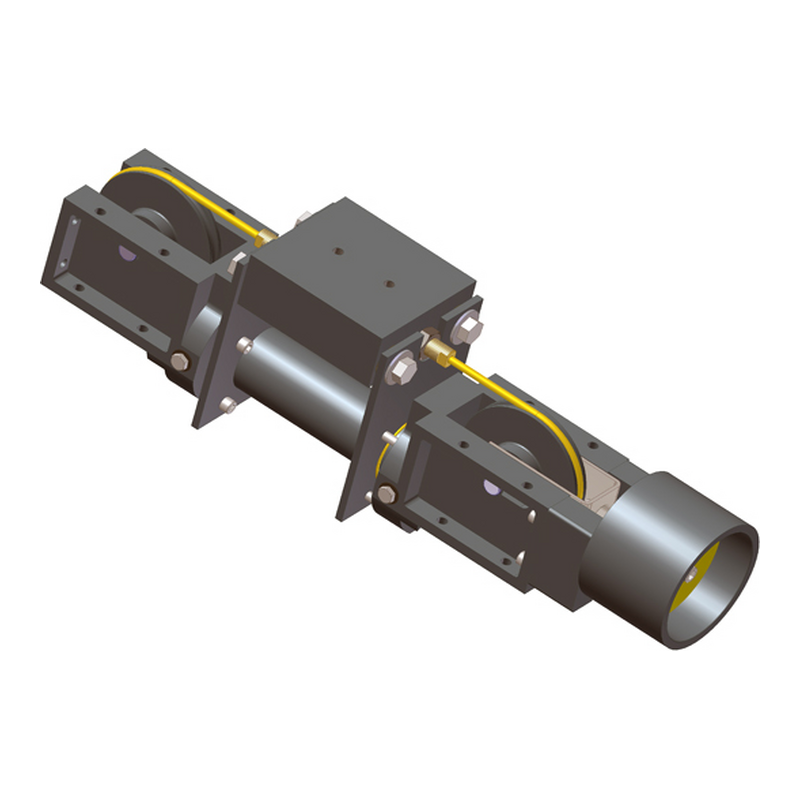

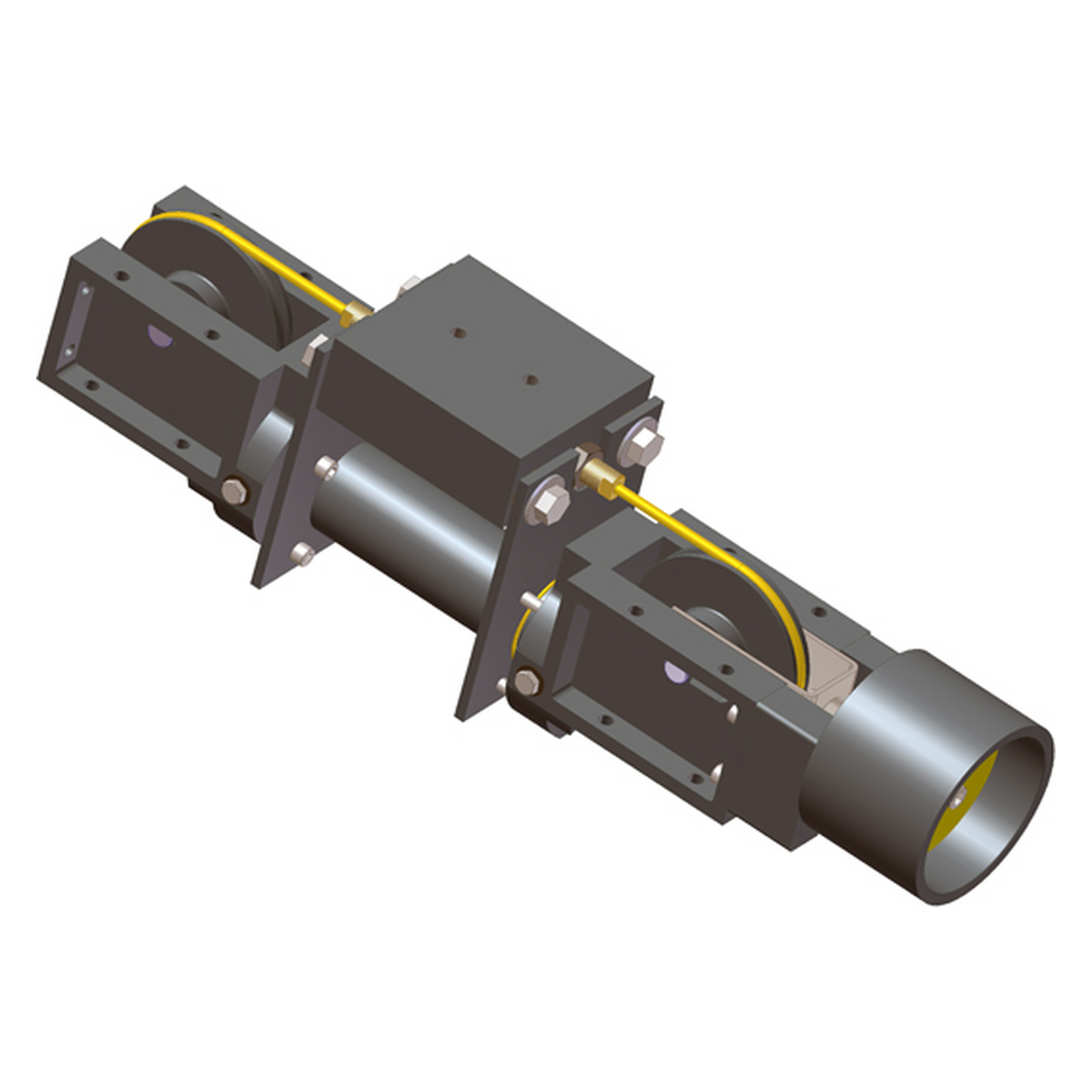

Guided Cable Cylinder, double acting with power stroke in both directions, 2.0 inch bore w/ automatic tensioner.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 7/8 inch chrome plated guide rods
  • Igus® guide bearings
Cylinder Type Rodless
Cylinder Style Cable
Actuation Double
Tensioner 1
Bore Diameter (in) 2
Body Construction Anodized Aluminum
Guide Yes
Mounting Style End
Seal Material Buna-N
Port Thread Imperial
Port location Bottom
Sensor Magnet No
Sensors No
Brand ULTRICYL
Cushions Adjustable
Made in USA Yes
Port Size 1/2 NPTF
Pressure Maximum (psi) 100
