1206-0806

Model: GCC1206T2

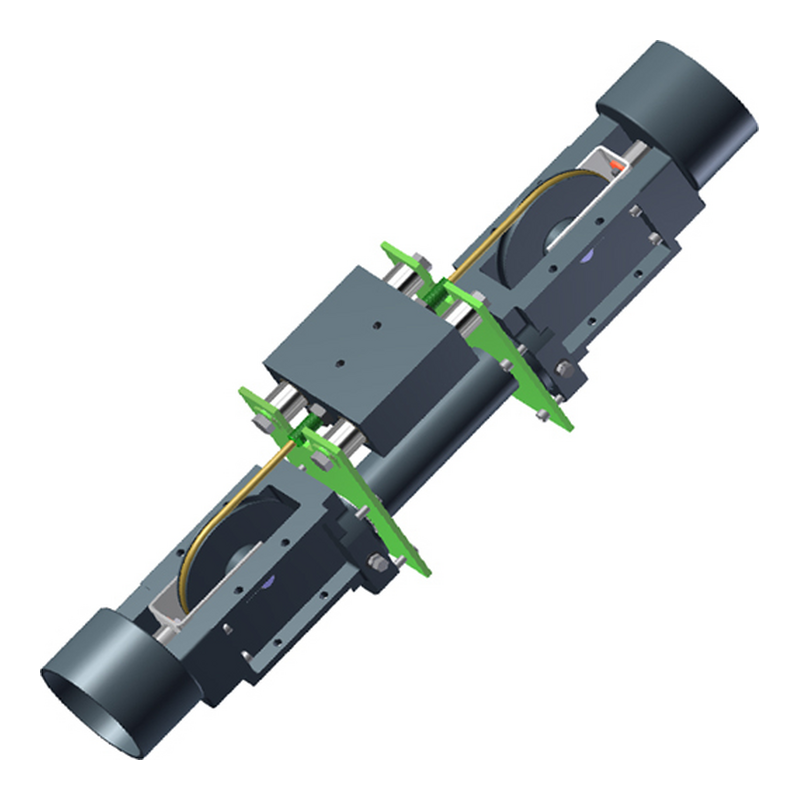

Guided Cable Cylinder, double acting with power stroke in both directions, 2.0 inch bore heavy duty w/ (2) automatic tensioners.

  • Maximum pressure: 500 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 1.25 inch chrome plated guide rods
  • Igus® guide bearings

Attributes

Bore, in.2.0
Option(s)500 PSI, 2 Tensioners
Force@100 PSI, lbs.309
Eff. Area, in.23.09
Max. Stroke Length*, in.120
Cable Wire Dia., in.3/16
Cable Nylon O.D., in.5/16
Strand Config7 x 19
Tensile Strength, lbs.4200
20% Rule, lbs.840
Click image to enlarge
