1401-0807

Model: GCC1401TRS

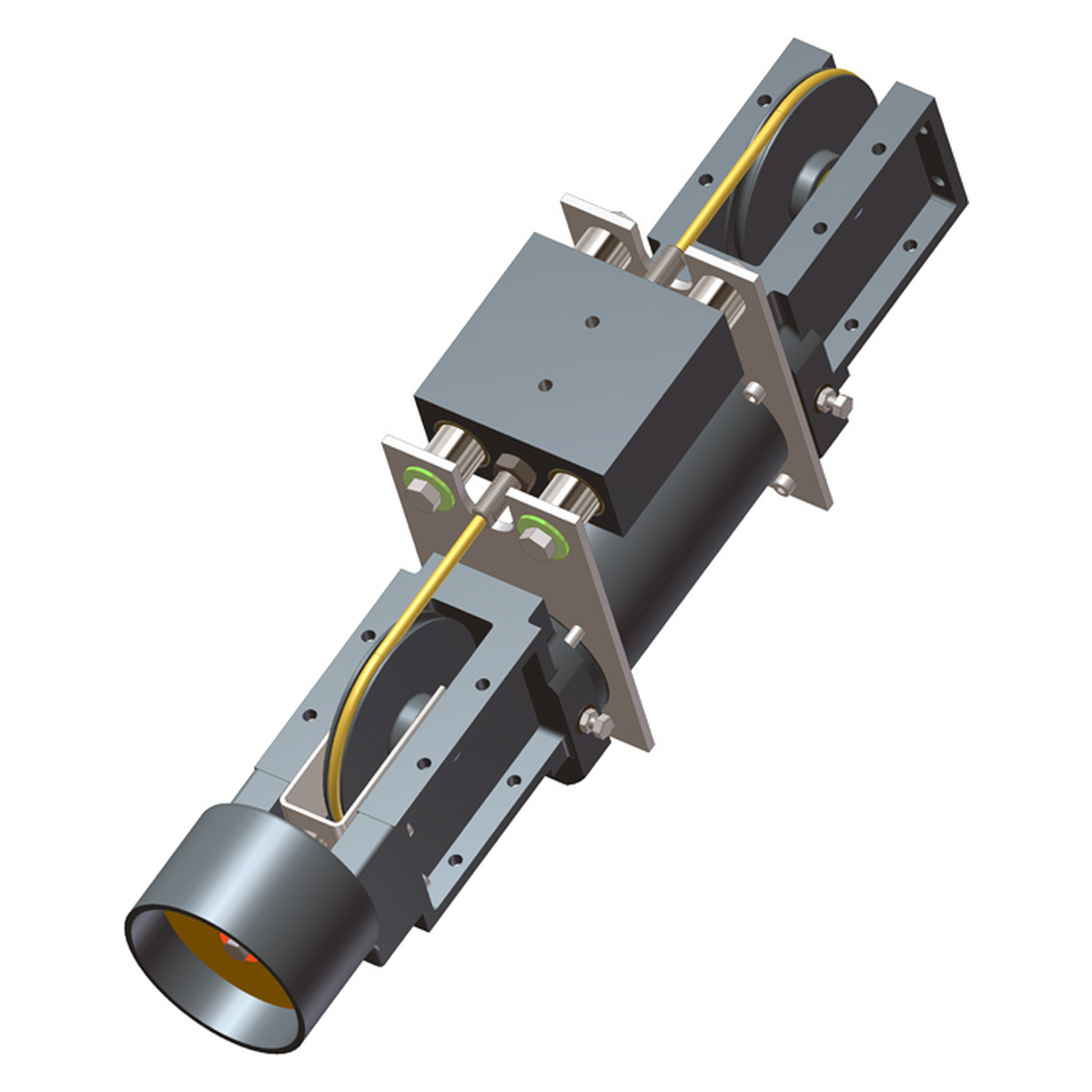

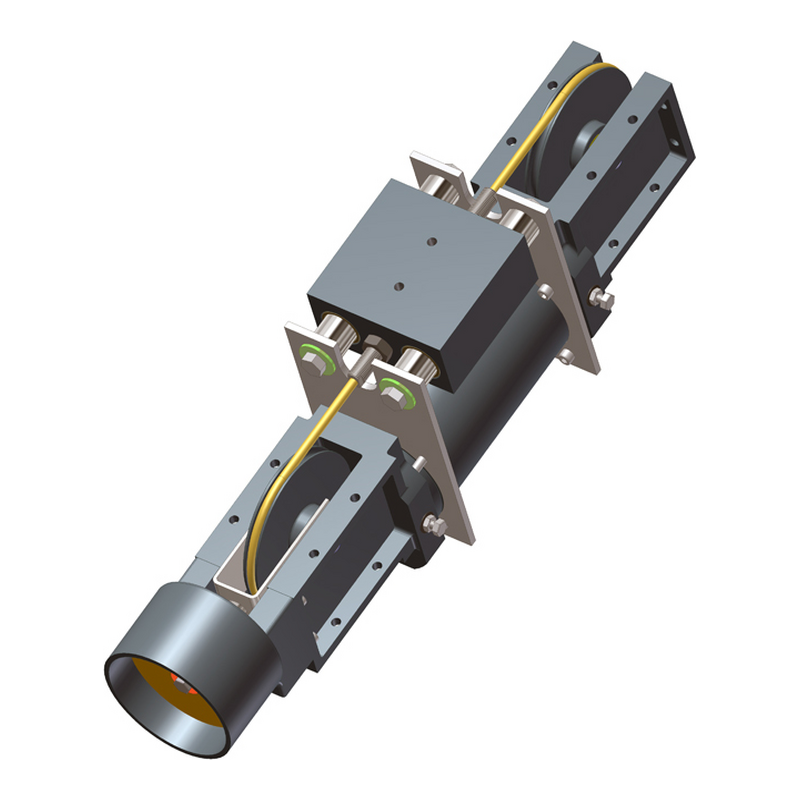

Guided Cable Cylinder, double acting with power stroke in both directions, 4.0 inch bore w/ automatic tensioner and (2) normally open reed switches.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • 1.25 inch chrome plated guide rods
  • Igus® guide bearings


Attributes

20% Rule, lbs. 840
Bore, in. 4.0
Cable Nylon O.D., in. 5/16
Cable Wire Dia., in. 3/16
Eff. Area, in.sq 12.49
Force@100 PSI, lbs. 1249
Max. Stroke Length, in. 120
Option(s) Tensioner, Switches
Strand Config 7 x 19
Tensile Strength, lbs. 4200
Click image to enlarge
