Guided Cable Cylinders Standard Models

Competitively priced with lower costs per inch of stroke. Journal guide bearings. Linear ball bearings optional.

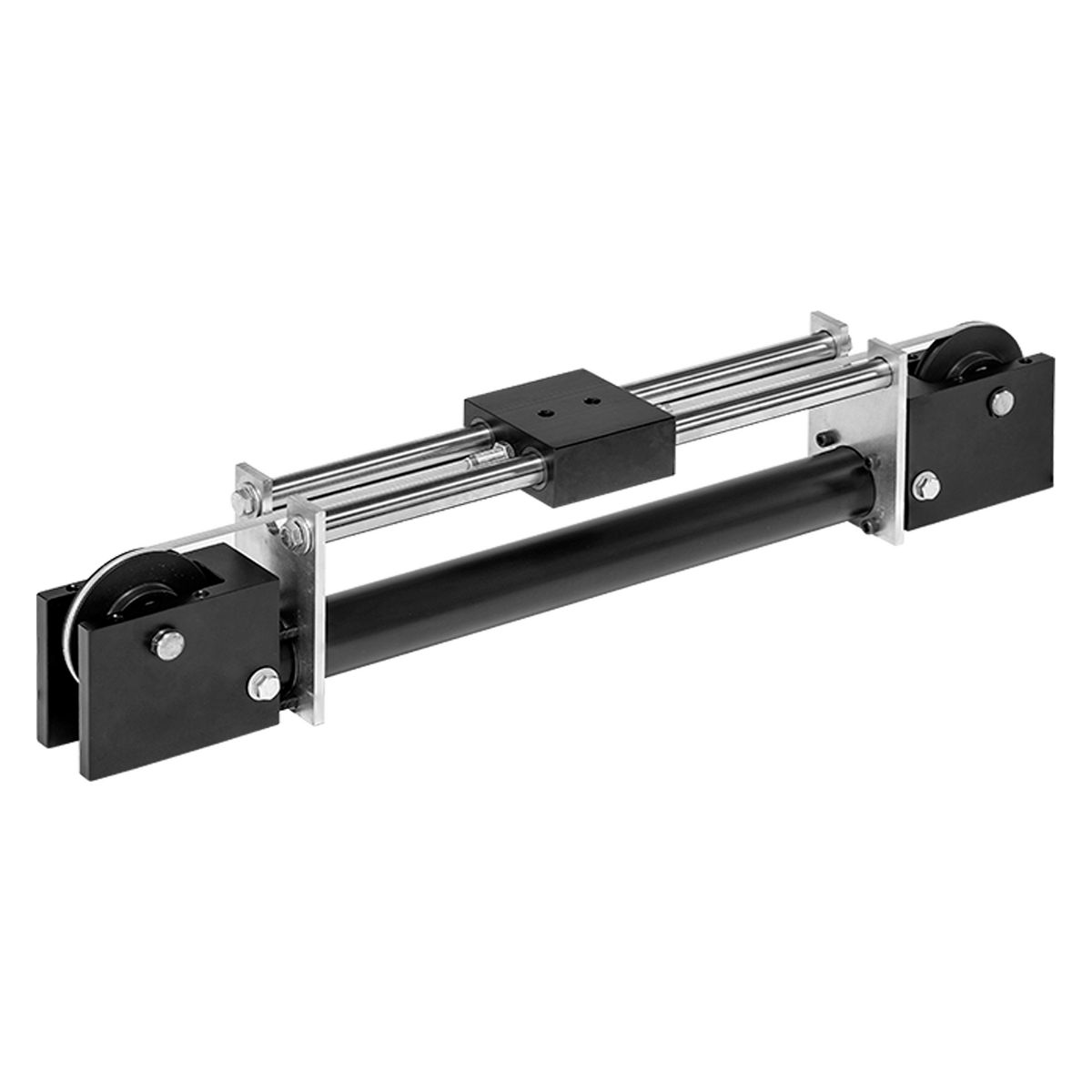

GCC - Guided Cable Cylinders from W.C. Branham consist of a double acting cable cylinder and a pre-engineered/packaged guide and load bearing support system for self guiding and self supported loads. GCCs can be configured with reed switches, auto tensioners and caliper disc brake combinations for position holding.

W.C. Branham has been manufacturing cable cylinders since 1981.

Click image to enlarge

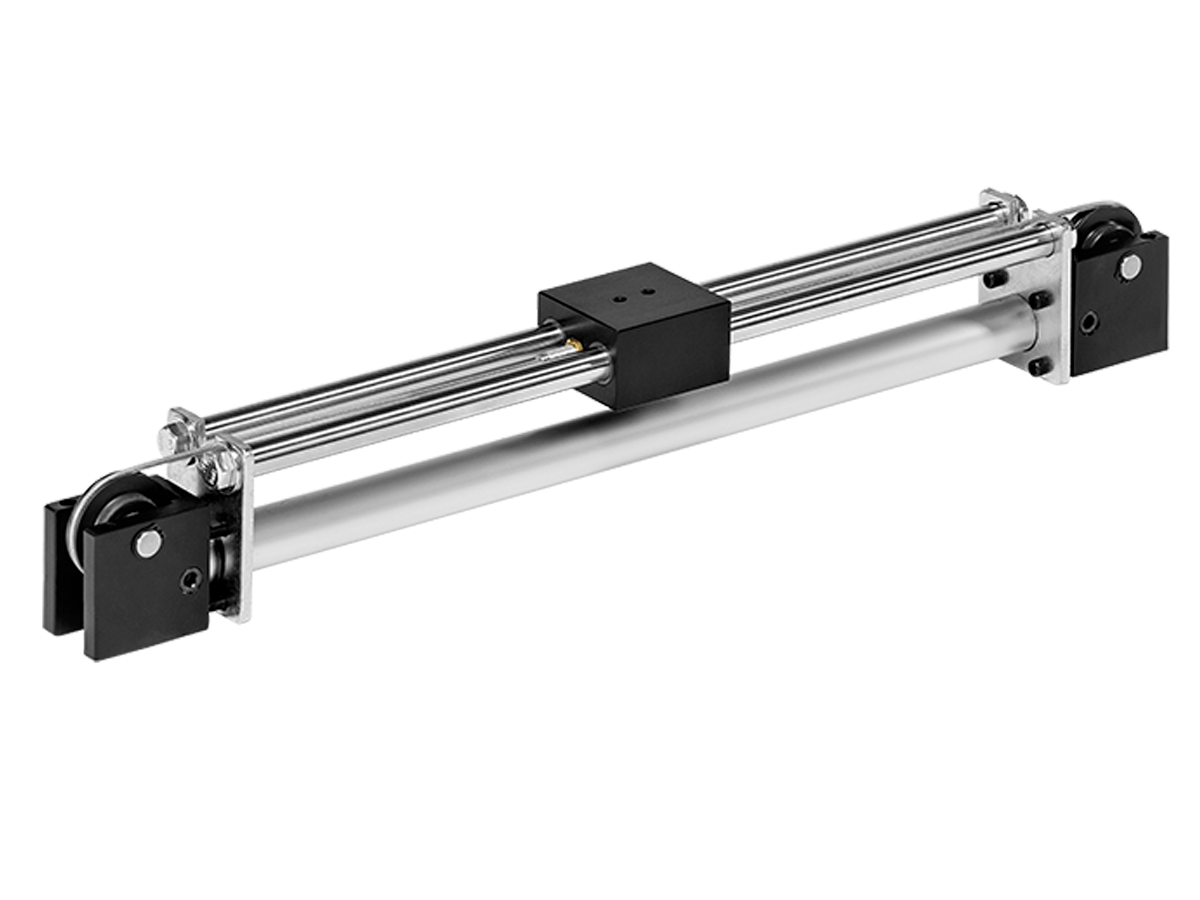

Model GCC1070 - 3/4" Bore

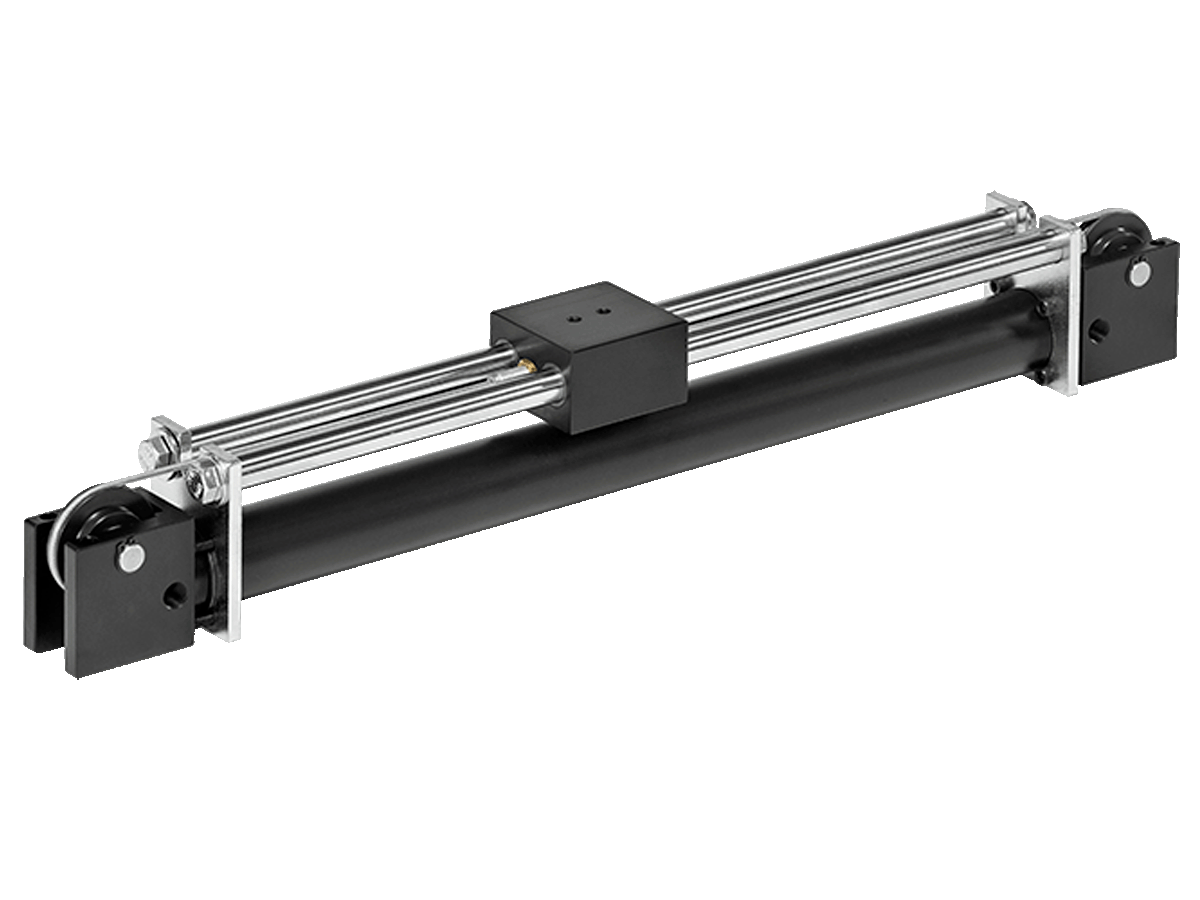

Model GCC1101 - 1" Bore

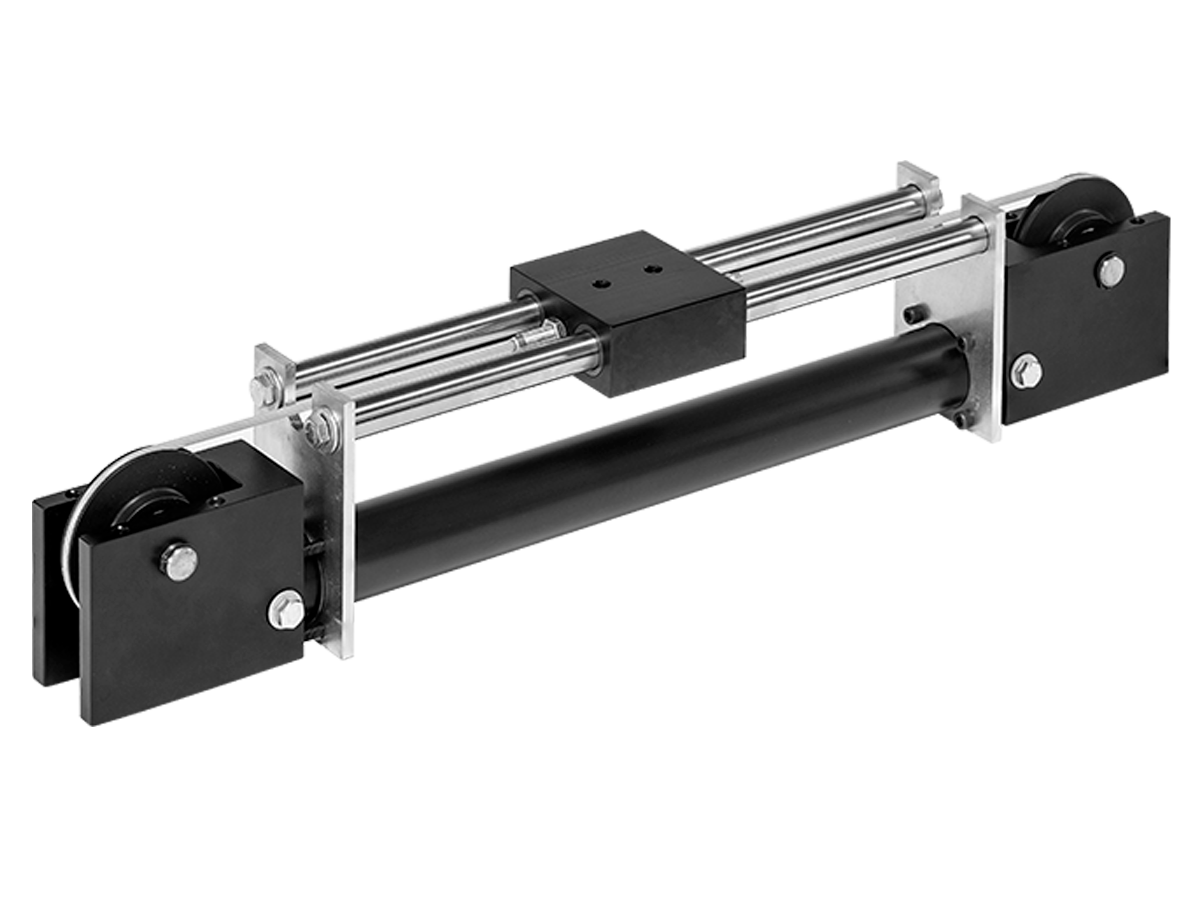

Model GCC1151 - 1.5" Bore

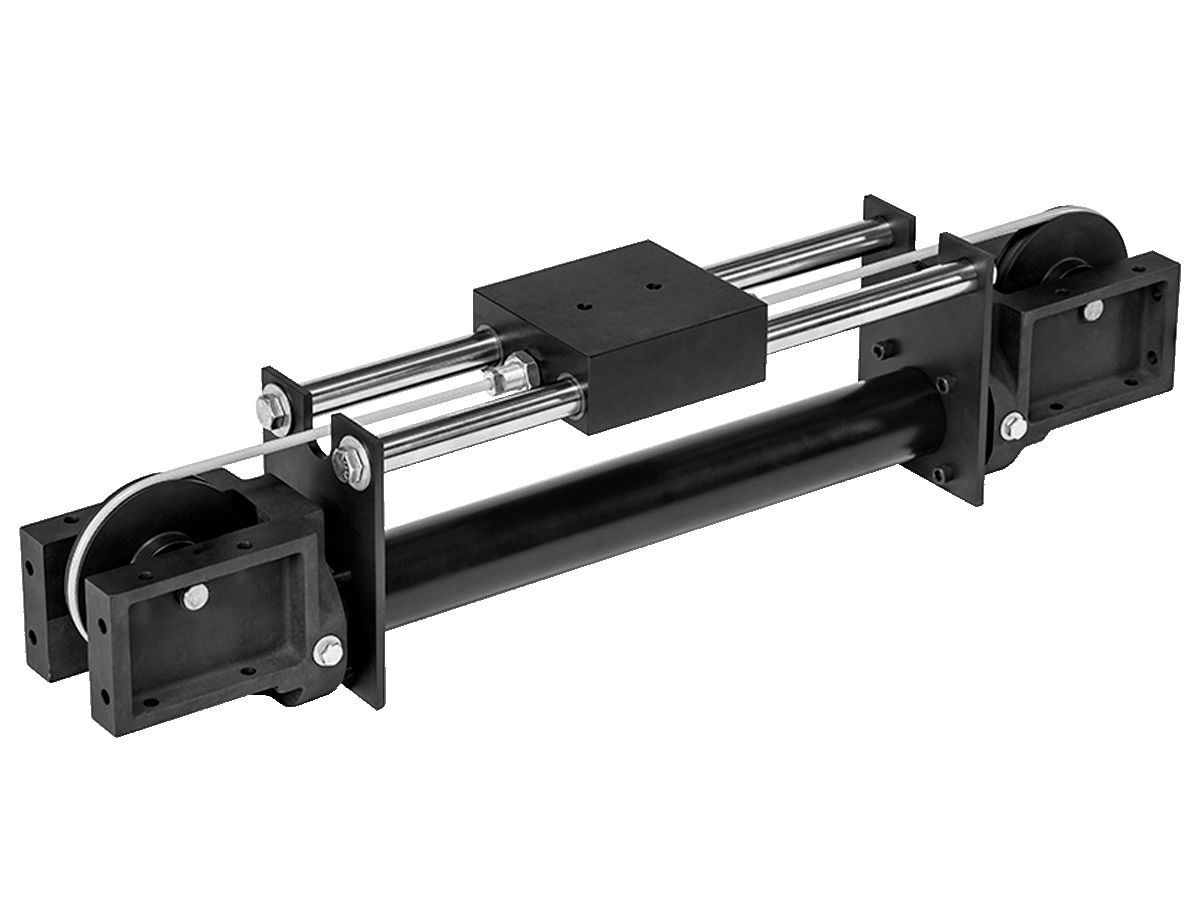

Model GCC1203 - 2" Bore

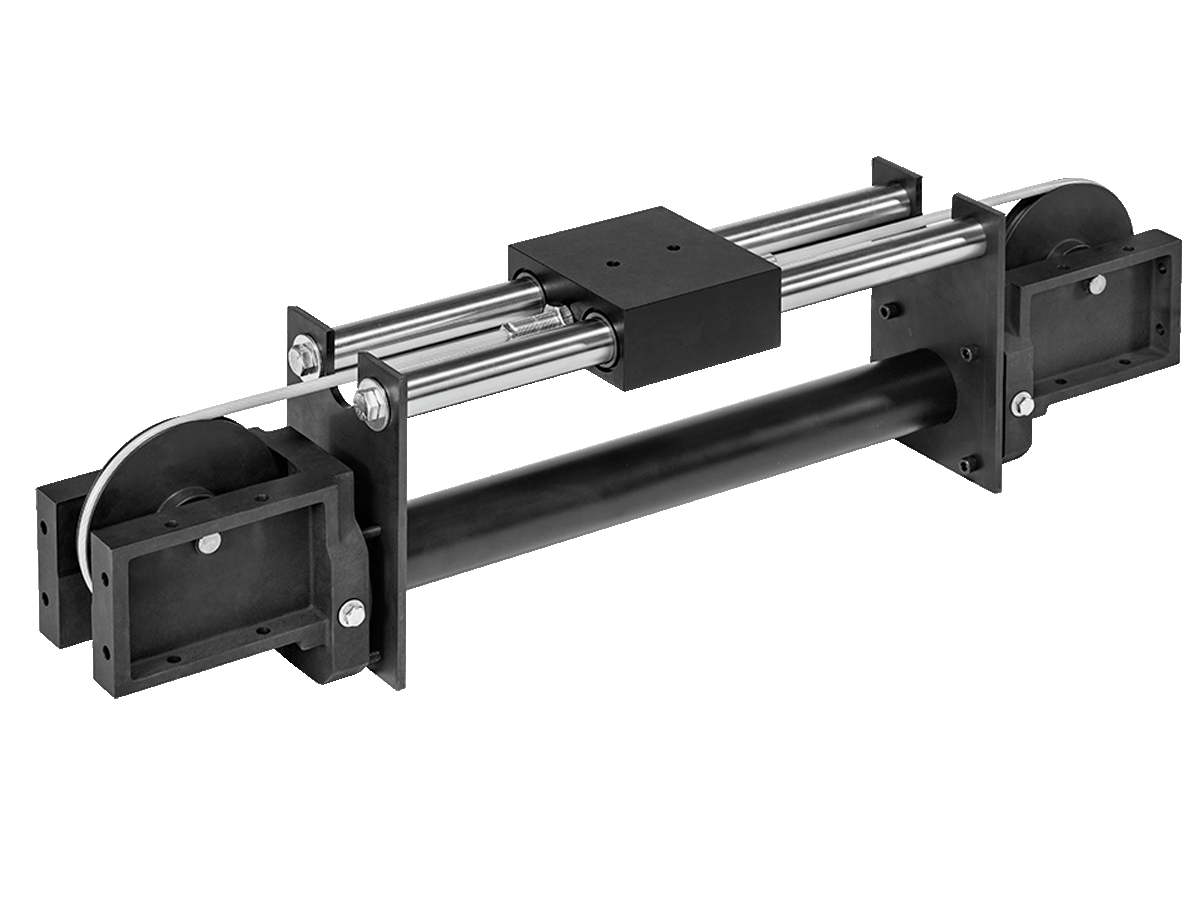

Model GCC1206 - 2" Bore - 500 PSI Rated

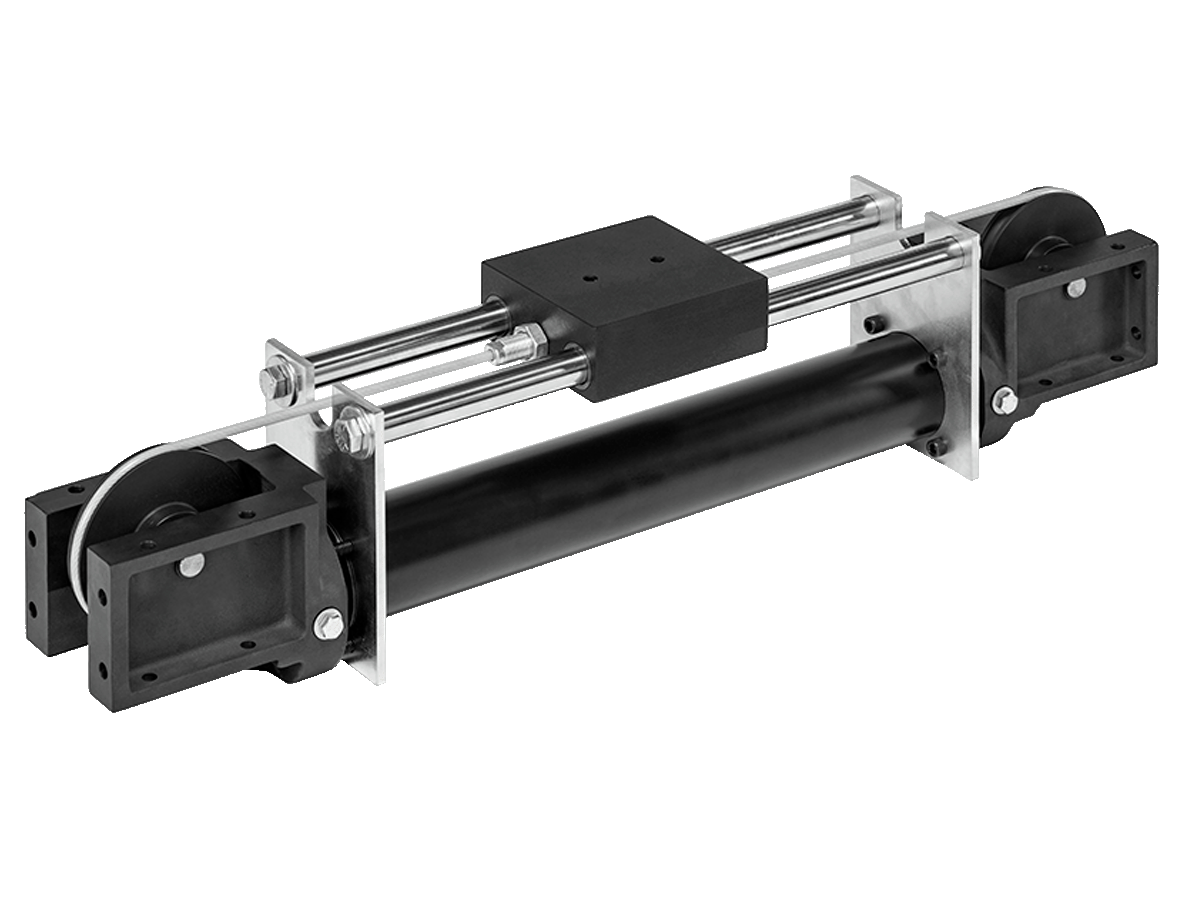

Model GCC1251 - 2.5" Bore

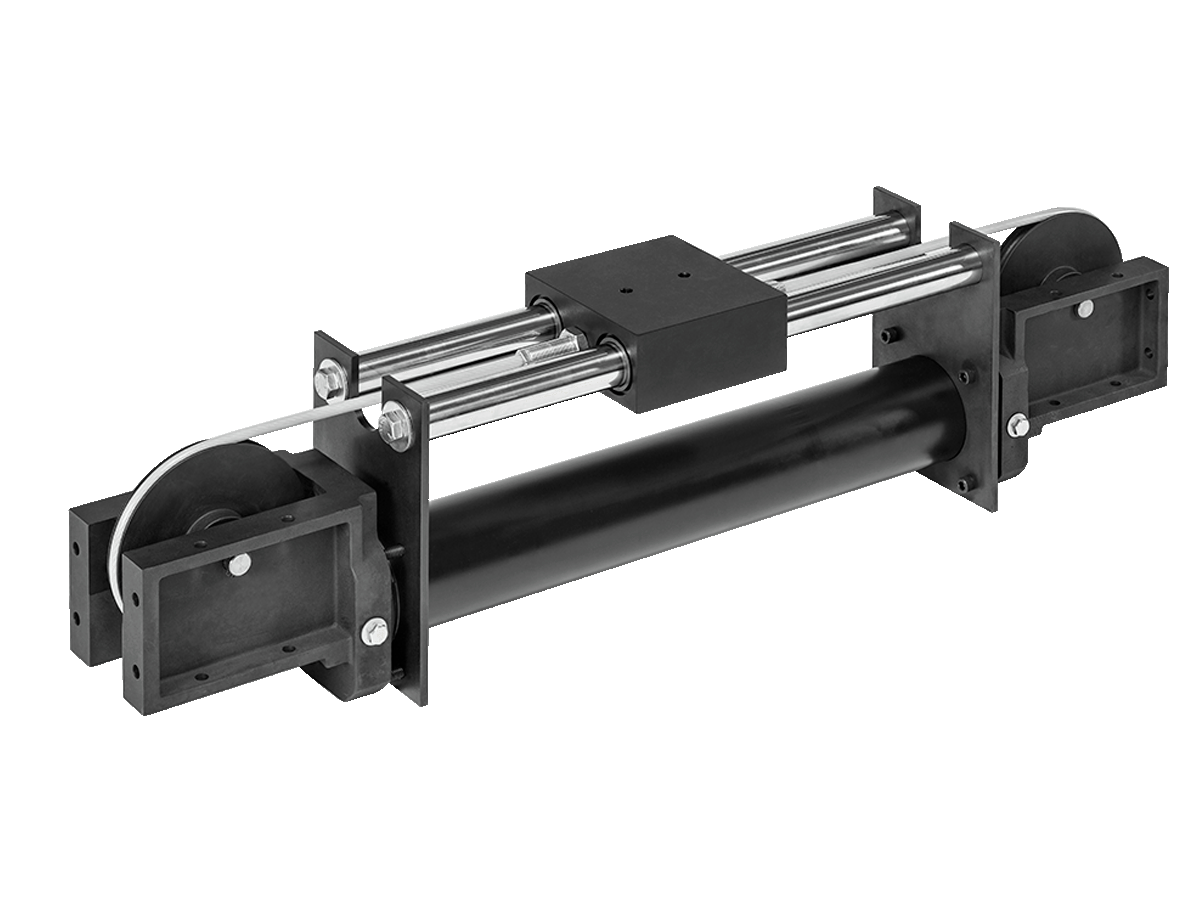

Model GCC1301 - 3" Bore

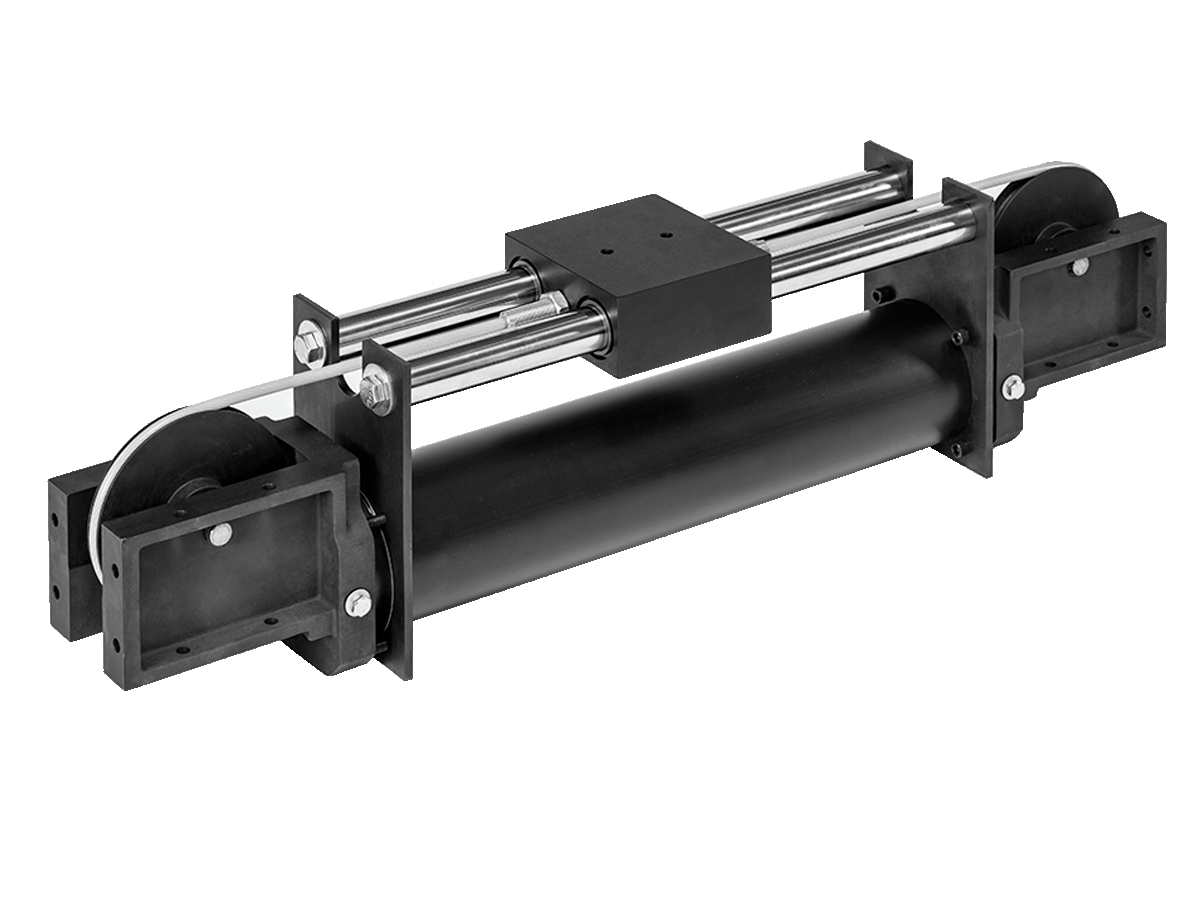

Model GCC1401 - 4" Bore

GCC1070 | 3/4" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1070-0800 GCC1070 3/4 .44 44 None
1070-0852 GCC1070RS 3/4 .44 44 Reed Switches
1070-0858 GCC1070M 3/4 .44 44 Piston Magnet

GCC1101 | 1" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1101-0800 GCC1101 1.0 .78 78 None
1101-0801 GCC1101RS 1.0 .78 78 Reed Switches
1101-0826 GCC1101M 1.0 .78 78 Piston Magnet

GCC1151 | 1.5" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1151-0800 GCC1151 1.5 1.74 174 None
1151-0801 GCC1151RS 1.5 1.74 174 Reed Switches

GCC1203 | 2.0" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1203-0800 GCC1203 2.0 3.09 309 None
1203-0804 GCC1203RS 2.0 3.09 309 Reed Switches
1203-0808 GCC1203M 2.0 3.09 309 Piston Magnet

GCC1206 High Pressure | 2.0" Bore

Product # Model Bore, in. Eff. Area, in.sq Option(s)
1206-0800 GCC1206 2.0 3.09 500 PSI, Heavy Duty
1206-0801 GCC1206RS 2.0 3.09 500 PSI, Reed Switches
1206-0803 GCC1206M 2.0 3.09 500 PSI, Piston Magnet

GCC1251 | 2.5" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1251-0800 GCC1251 2.5 4.86 486 None
1251-0802 GCC1251RS 2.5 4.86 486 Reed Switches
1251-0812 GCC1251M 2.5 4.86 486 Piston Magnet

GCC1301 | 3.0" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1301-0800 GCC1301 3.0 6.99 699 None
1301-0803 GCC1301RS 3.0 6.99 699 Reed Switches
1301-0806 GCC1301M 3.0 6.99 699 Piston Magnet

GCC1401 | 4.0" Bore

Product # Model Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1401-0800 GCC1401 4.0 12.49 1249 None
1401-0801 GCC1401RS 4.0 12.49 1249 Reed Switches
1401-0806 GCC1401M 4.0 12.49 1249 Piston Magnet
