1501-0040
Model: LTC1501

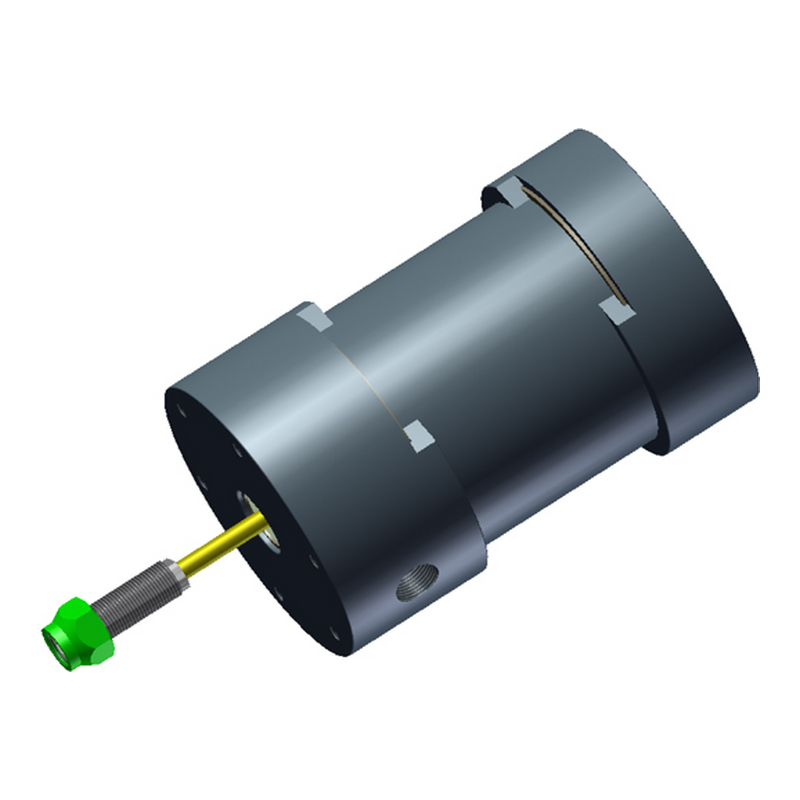

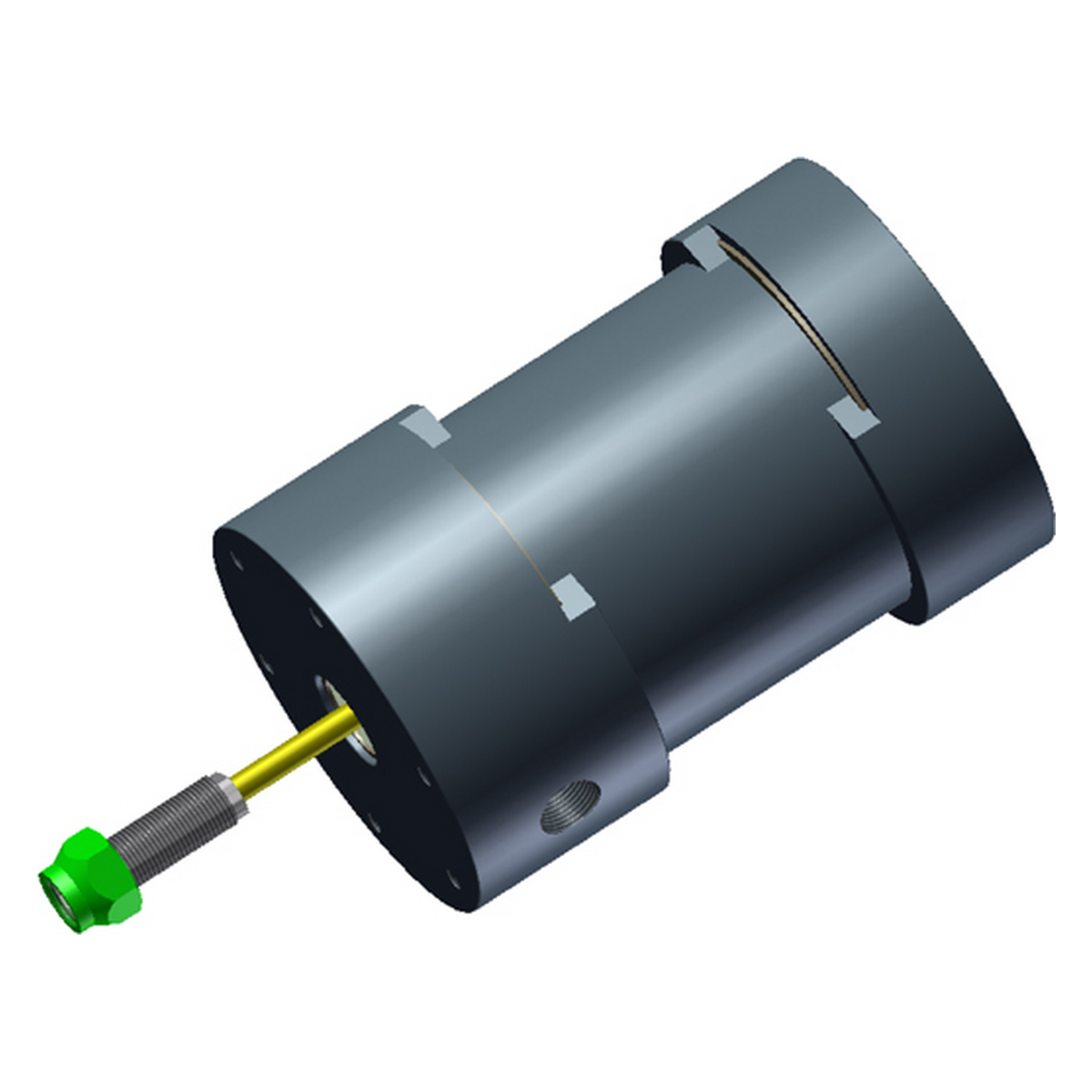

Linear Tension Cable Cylinder with power stroke in one direction, 5.0 inch bore.
Operating temperature range: 20º to 140º F.
Attributes
| Model # | LTC1501 |
| 20% Rule, lbs. | 1400 |
| Bore, in. | 5.0 |
| Cable Nylon O.D., in. | 3/8 |
| Cable Wire Dia., in. | 1/4 |
| Eff. Area, in.sq | 19.20 |
| Force@100 PSI, lbs. | 1920 |
| Max. Stroke Length, in. | 222 |
| Options(s) | None |
| Strand Config | 7 x 19 |
| Tensile Strength, lbs. | 7000 |
Click image to enlarge
