1726-0000
Model: MAG5TEC1.0SM

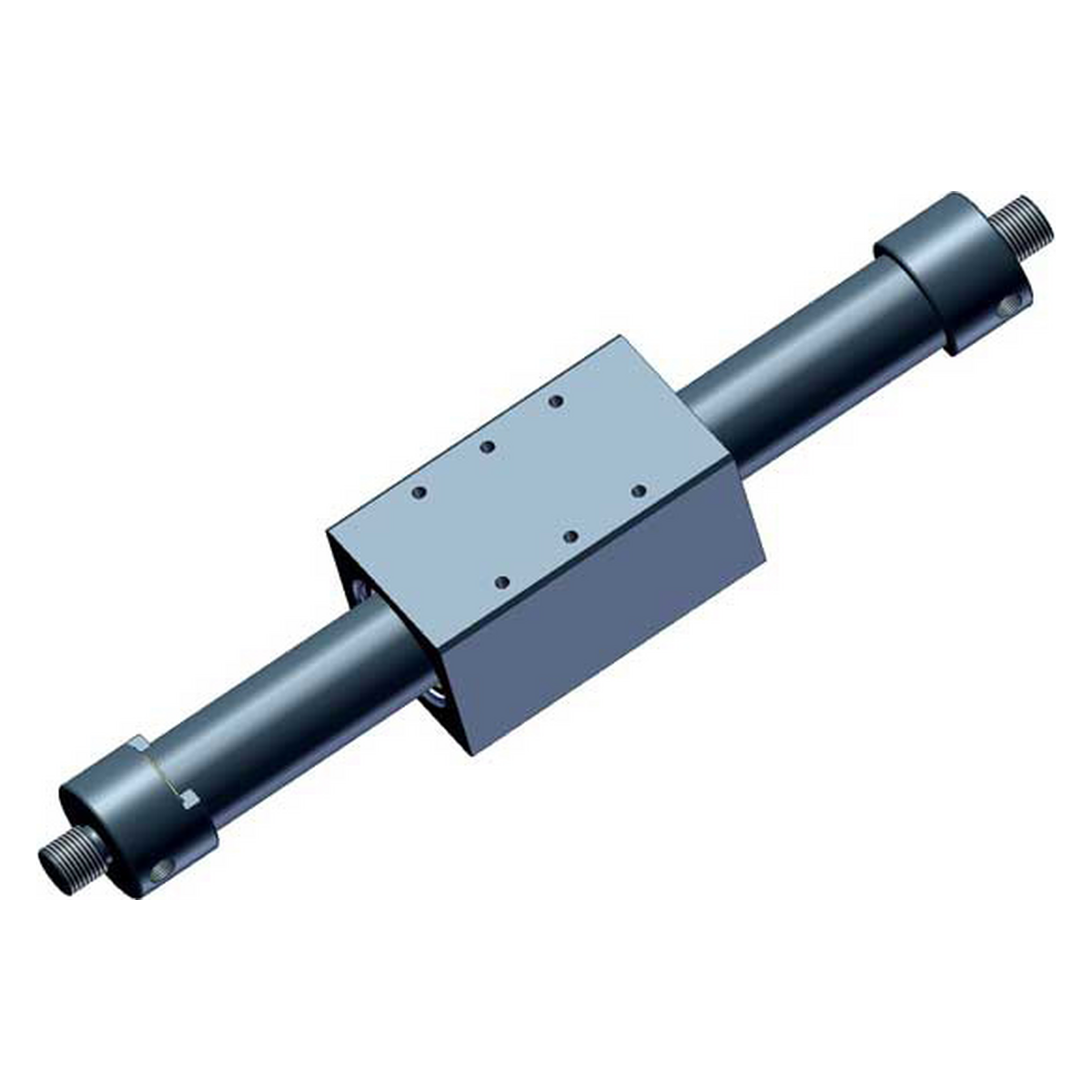

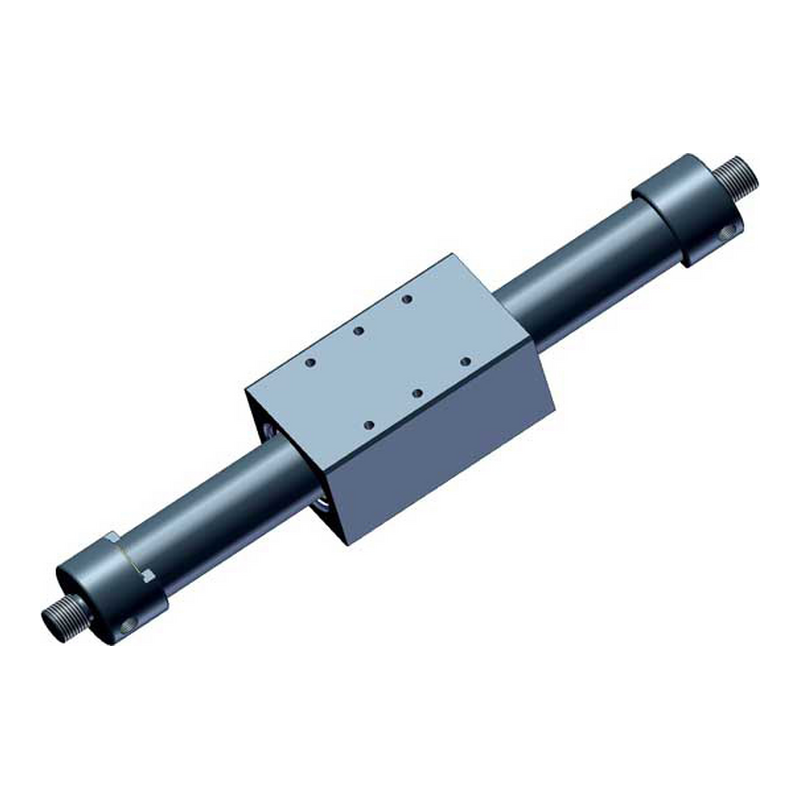

MAGTEC® Rodless Cylinder, double acting with power stroke in both directions, 1.0 in. (25mm) bore. Stud mount.
- Maximum pressure: 100 PSI
- Operating temperature range: 0º to 170º F.
- Adjustable cushions
- 1/8 in. wall aluminum hardcoated tubing 68 Rockwell hardness
- May be used hydraulically up to 100 PSI
- Acetron® Acetal GP carrier bearings - high strength, ideal for food contact and medical applications
| Cylinder Type | Rodless |
| Cylinder Style | Magnetic Coupled |
| Actuation | Double |
| Bore Diameter (in) | 1 |
| Body Construction | Anodized Aluminum |
| Guide | No |
| Mounting Style | Stud |
| Seal Material | Buna-N |
| Port Thread | Imperial |
| Port location | Side |
| Sensor Magnet | No |
| Sensors | No |
| Brand | MAGTEC |
| Cushions | Adjustable |
| Made in USA | Yes |
| Port Size | 1/8-27 NPTF |
| Pressure Maximum (psi) | 100 |
