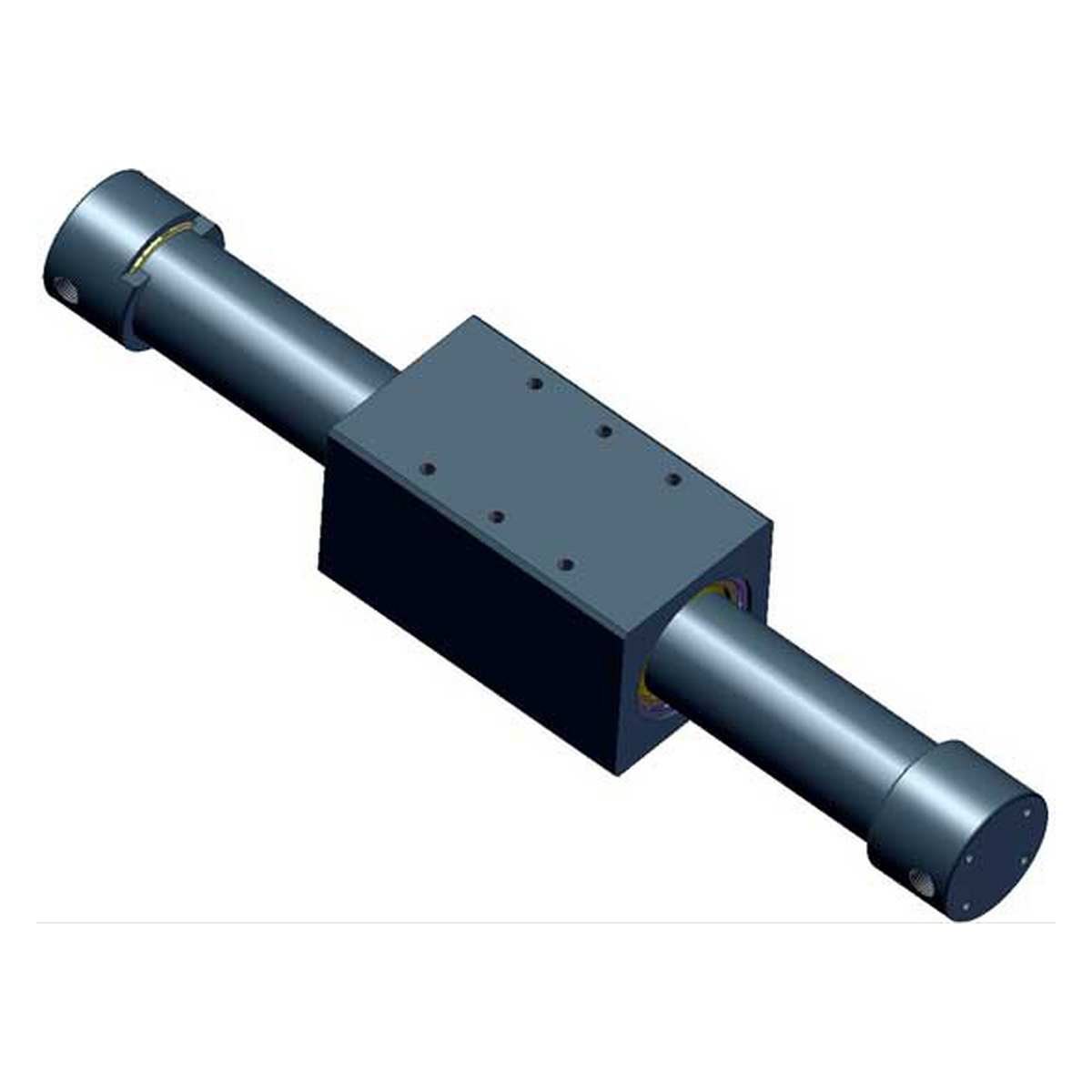

Model: MAG5TEC1.0HM

MAGTEC® Rodless Cylinder, double acting with power stroke in both directions, 1.0 in. (25mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 0º to 170º F.
  • Adjustable cushions
  • 1/8 in. wall aluminum hardcoated tubing 68 Rockwell hardness
  • May be used hydraulically up to 100 PSI
  • Acetron® Acetal GP carrier bearings - high strength, ideal for food contact and medical applications


Model # MAG5TEC1.0HM
Axial load, lbs. 78
Bore, in. 1.0
Carrier Load, lbs.
Magnet Coupling, lbs. 105
Magnet Strength Rating 5
Max. Stroke Length, in. 120
Option(s) Head Mount
Port Size, NPT 1/8
