Model: MAG5TEC1.50FM

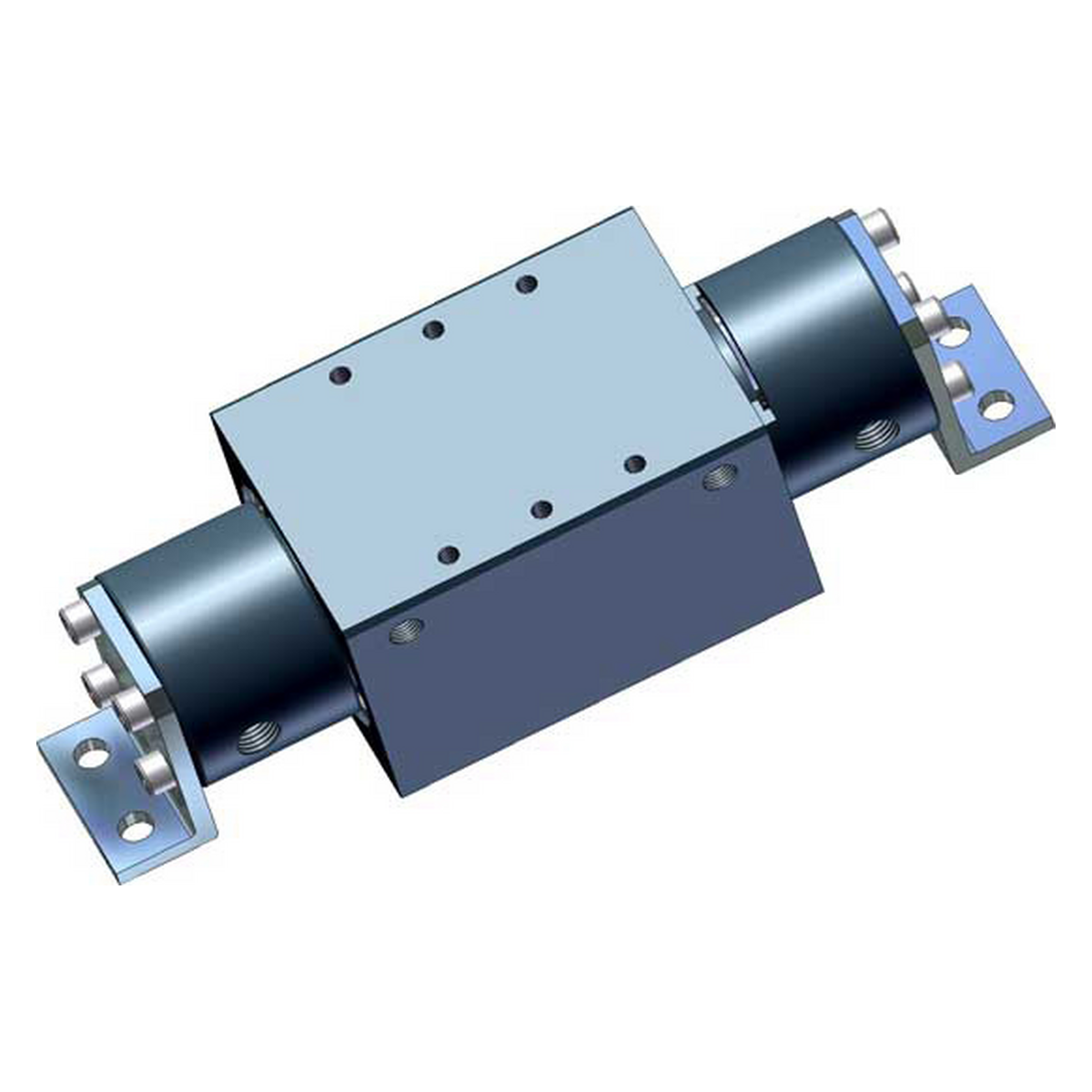

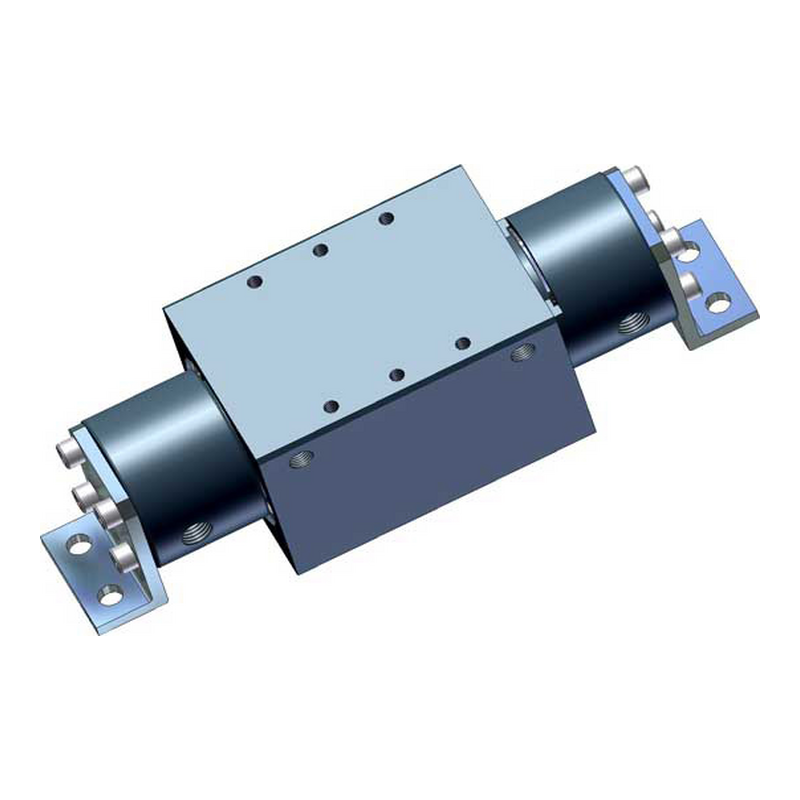

MAGTEC® Rodless Cylinder, double acting with power stroke in both directions, 1.5 in. (40mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 0º to 170º F.
  • Adjustable cushions
  • 1/8 in. wall aluminum hardcoated tubing 68 Rockwell hardness
  • May be used hydraulically up to 100 PSI
  • Acetron® Acetal GP carrier bearings - high strength, ideal for food contact and medical applications


Model # MAG5TEC1.50FM
Axial load, lbs. 177
Bore, in. 1.5
Carrier Load, lbs.
Magnet Coupling, lbs. 256
Magnet Strength Rating 5
Max. Stroke Length, in. 273
Option(s) Foot Mount
Port Size, NPT 1/4
