1750-0033

Model: MAG5TEC2.0SM3C

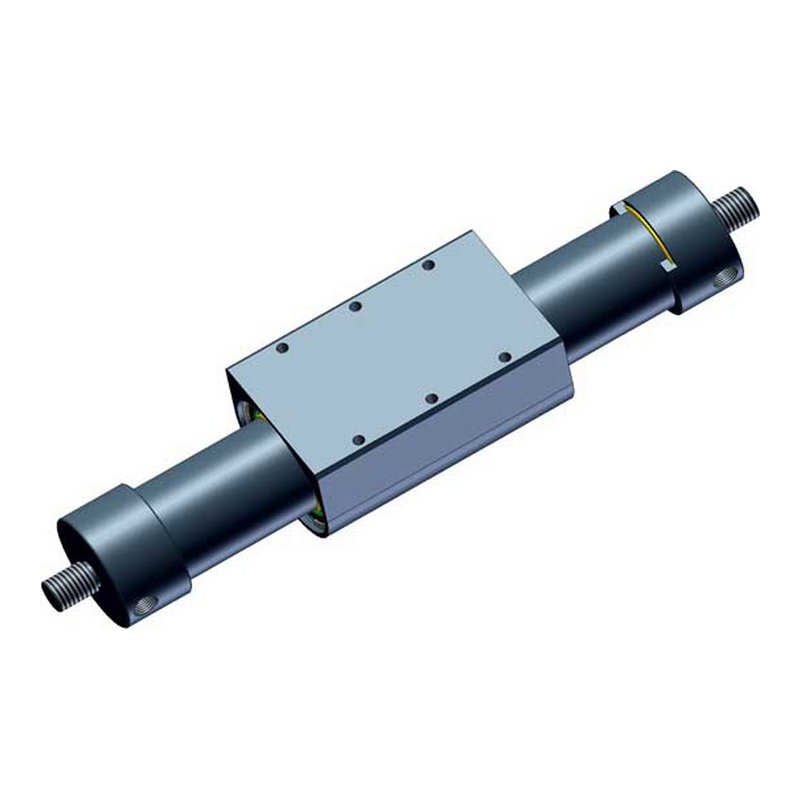

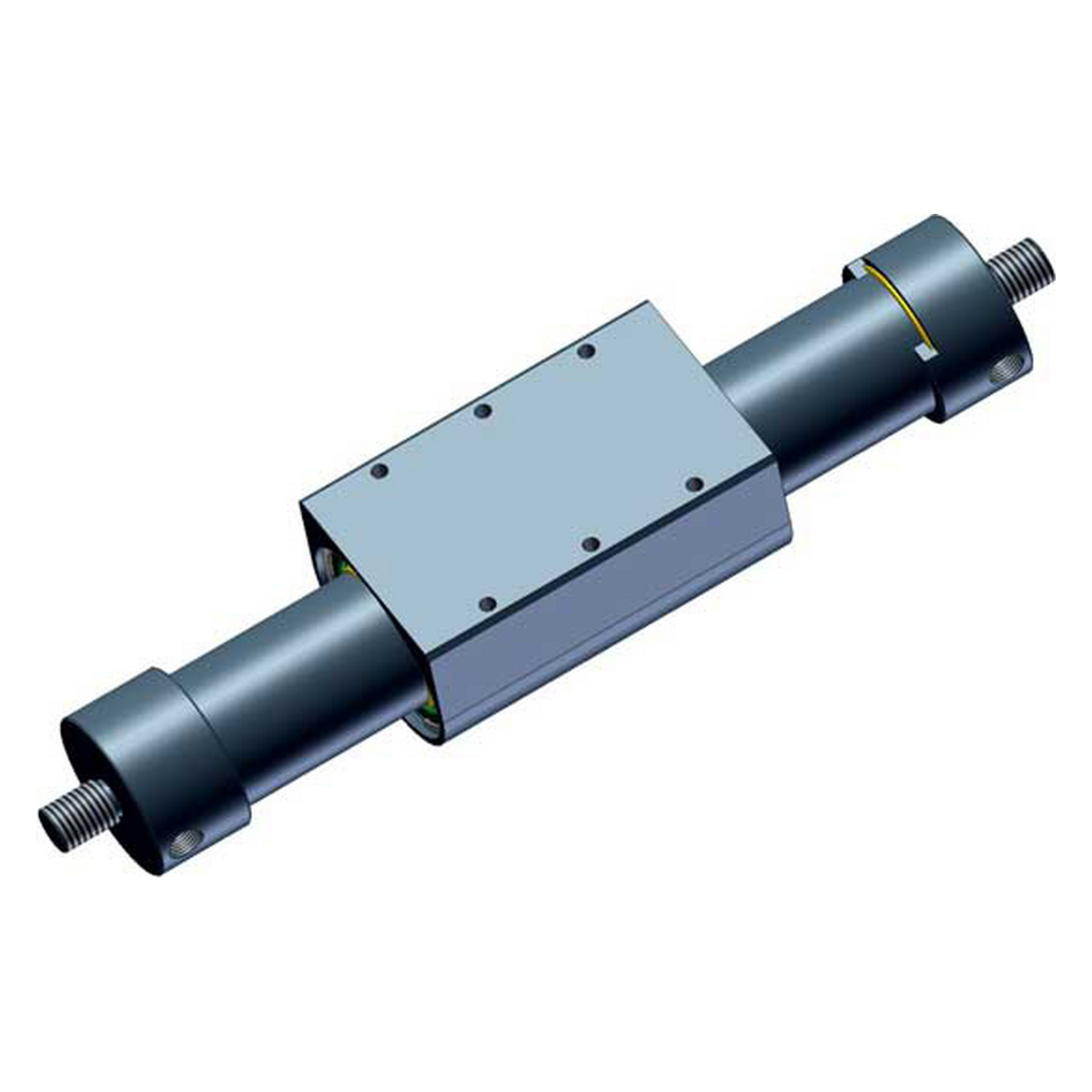

MAGTEC® Rodless Cylinder, double acting with power stroke in both directions, 2.0 in. (50mm) bore. 3 inch cushion length.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 0º to 170º F.
  • Adjustable cushions
  • 1/8 in. wall aluminum hardcoated tubing 68 Rockwell hardness
  • May be used hydraulically up to 100 PSI
  • Acetron® Acetal GP carrier bearings - high strength, ideal for food contact and medical applications

Attributes

Model # MAG5TEC2.0SM3C
Axial load, lbs. 289
Bore, in. 2.0
Carrier Load, lbs. 50
Magnet Coupling, lbs. 440
Magnet Strength Rating 5
Max. Stroke Length, in. 273
Option(s) Stud Mount, 3 in. Cushions
Port Size, NPT 3/8-18
