OVLPRO® 25mm Bore
Low Profile. Millions of Worry-Free Cycles. Quick Ship 3 Days or Less for Most Models.

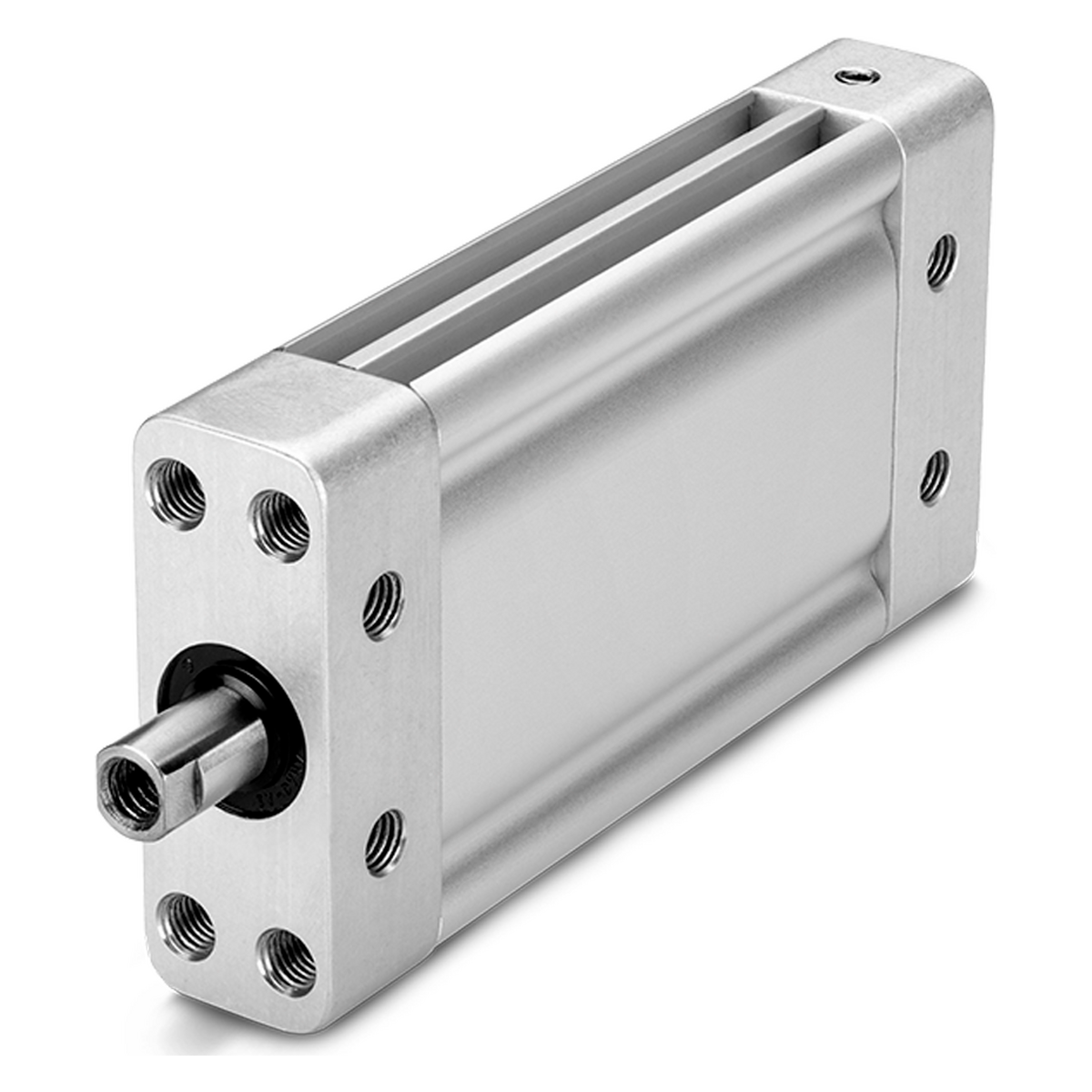

OVLPRO is an air cylinder which features an extruded high strength aluminum body with an oval piston bore. It has a lower profile body than traditional NFPA or ISO type round bore cylinders. OVLPRO fits in more spaces when flat or on its' side.
The oval piston prevents the piston rod from rotating when extending or retracting. It can be configured with sensors for position feedback as well as a variety of mounting accessories.
Use OVLPRO on these applications: Packaging Machinery | Material Handling | Automated Assembly | Conveying Systems | Wire Machinery | Food Processing Machinery | Automated Sorting | Bottling and Filling Systems | Paper Converting Machinery | Ergonomic Systems
OVP25MS | 25mm Bore | Male Thread Rod | Side Ported
| Product # | Stroke (in.) | Port Location |
|---|---|---|
| 2025-00AB-01.00 | 1.00 | AB Side Ported |
| 2025-00AB-01.50 | 1.50 | AB Side Ported |
| 2025-00AB-02.00 | 2.00 | AB Side Ported |
| 2025-00AB-02.50 | 2.50 | AB Side Ported |
| 2025-00AB-03.00 | 3.00 | AB Side Ported |
| 2025-00AB-03.50 | 3.50 | AB Side Ported |
| 2025-00AB-04.00 | 4.00 | AB Side Ported |
| 2025-00AB-04.50 | 4.50 | AB Side Ported |
| 2025-00AB-05.00 | 5.00 | AB Side Ported |
| 2025-00AB-05.50 | 5.50 | AB Side Ported |
| 2025-00AB-06.00 | 6.00 | AB Side Ported |
| 2025-00AB-08.00 | 8.00 | AB Side Ported |
OVP25MR | 25mm Bore | Male Thread Rod | Rear Ported
| Product # | Stroke (in.) | Port Location |
|---|---|---|
| 2025-01AB-01.00 | 1.00 | AB Rear Ported |
| 2025-01AB-01.50 | 1.50 | AB Rear Ported |
| 2025-01AB-02.00 | 2.00 | AB Rear Ported |
| 2025-01AB-02.50 | 2.50 | AB Rear Ported |
| 2025-01AB-03.00 | 3.00 | AB Rear Ported |
| 2025-01AB-03.50 | 3.50 | AB Rear Ported |
| 2025-01AB-04.00 | 4.00 | AB Rear Ported |
| 2025-01AB-04.50 | 4.50 | AB Rear Ported |
| 2025-01AB-05.00 | 5.00 | AB Rear Ported |
| 2025-01AB-05.50 | 5.50 | AB Rear Ported |
| 2025-01AB-06.00 | 6.00 | AB Rear Ported |
| 2025-01AB-08.00 | 8.00 | AB Rear Ported |
OVP25FS | 25mm Bore | Female Thread Rod | Side Ported
| Product # | Stroke (in.) | Port Location |
|---|---|---|
| 2025-02AB-01.00 | 1.00 | AB Side Ported |
| 2025-02AB-01.50 | 1.50 | AB Side Ported |
| 2025-02AB-02.00 | 2.00 | AB Side Ported |
| 2025-02AB-02.50 | 2.50 | AB Side Ported |
| 2025-02AB-03.00 | 3.00 | AB Side Ported |
| 2025-02AB-03.50 | 3.50 | AB Side Ported |
| 2025-02AB-04.00 | 4.00 | AB Side Ported |
| 2025-02AB-04.50 | 4.50 | AB Side Ported |
| 2025-02AB-05.00 | 5.00 | AB Side Ported |
| 2025-02AB-05.50 | 5.50 | AB Side Ported |
| 2025-02AB-06.00 | 6.00 | AB Side Ported |
| 2025-02AB-08.00 | 8.00 | AB Side Ported |
OVP25FR | 25mm Bore | Female Thread Rod | Rear Ported
| Product # | Stroke (in.) | Port Location |
|---|---|---|
| 2025-03AB-01.00 | 1.00 | AB Rear Ported |
| 2025-03AB-01.50 | 1.50 | AB Rear Ported |
| 2025-03AB-02.00 | 2.00 | AB Rear Ported |
| 2025-03AB-02.50 | 2.50 | AB Rear Ported |
| 2025-03AB-03.00 | 3.00 | AB Rear Ported |
| 2025-03AB-03.50 | 3.50 | AB Rear Ported |
| 2025-03AB-04.00 | 4.00 | AB Rear Ported |
| 2025-03AB-04.50 | 4.50 | AB Rear Ported |
| 2025-03AB-05.00 | 5.00 | AB Rear Ported |
| 2025-03AB-05.50 | 5.50 | AB Rear Ported |
| 2025-03AB-06.00 | 6.00 | AB Rear Ported |
| 2025-03AB-08.00 | 8.00 | AB Rear Ported |
