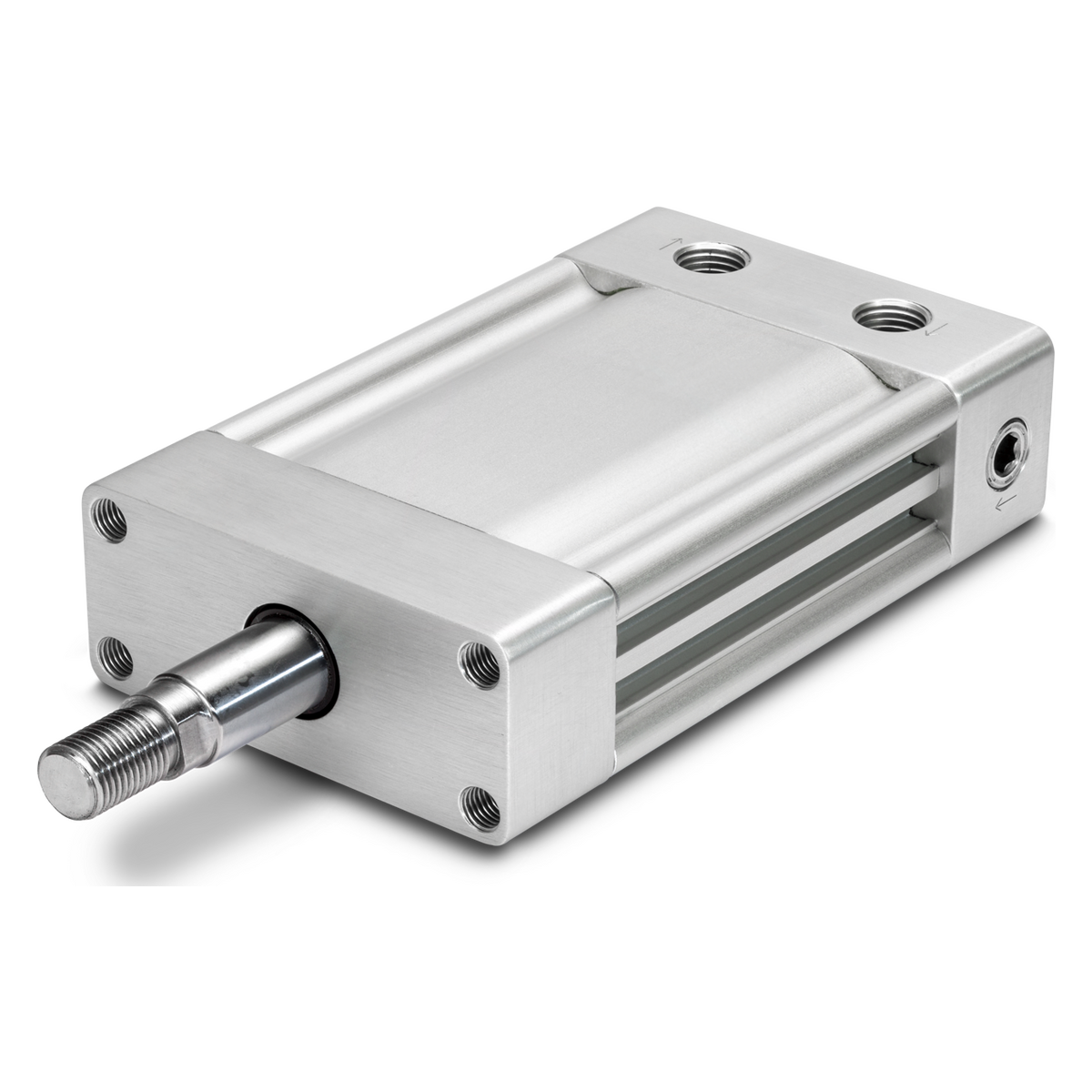

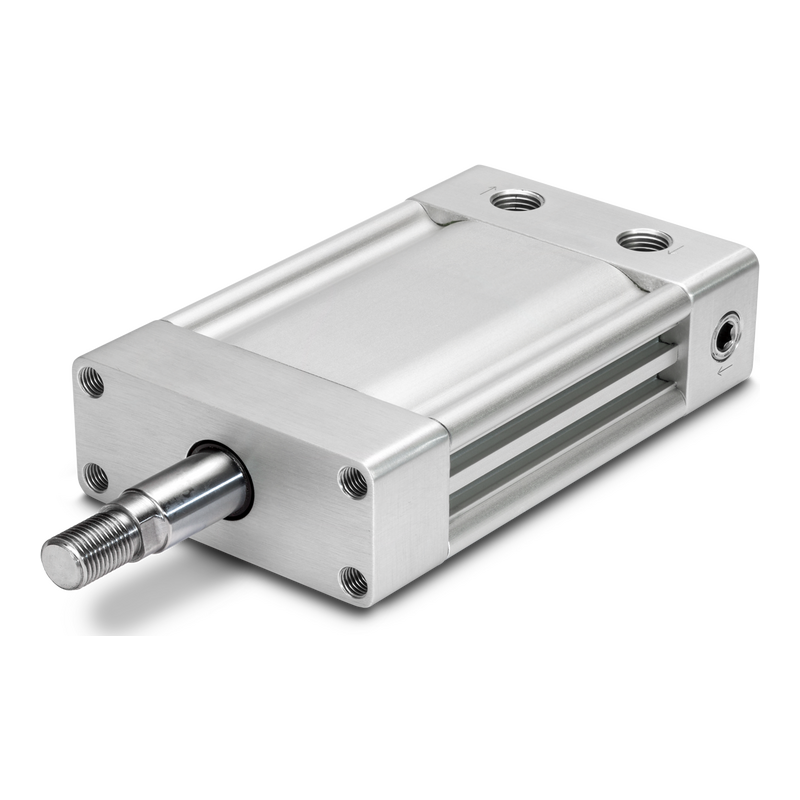

OVLPRO® Low Profile Rod Cylinder, 44mm Bore, Male Threaded Rod, Side Ported, 3.0 in. Stroke.
|Bore Size||44mm (1.75")|
|Rod Type||Male Thread|
|Port Location||AB Side Ported|
|Extend/Retract Force Lb.||241/210 Lbs. @ 100 PSI|
|Rod Dia.||5/8" Hard Chrome Plated|
|Rod Thread Size||1/2-20 UNF-2A|
|Port Size||1/4-18 NPTF|
|Max. Pressure PSI||200 PSI|
Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.
