2044-02AB-05.50

Model: OVP44FS

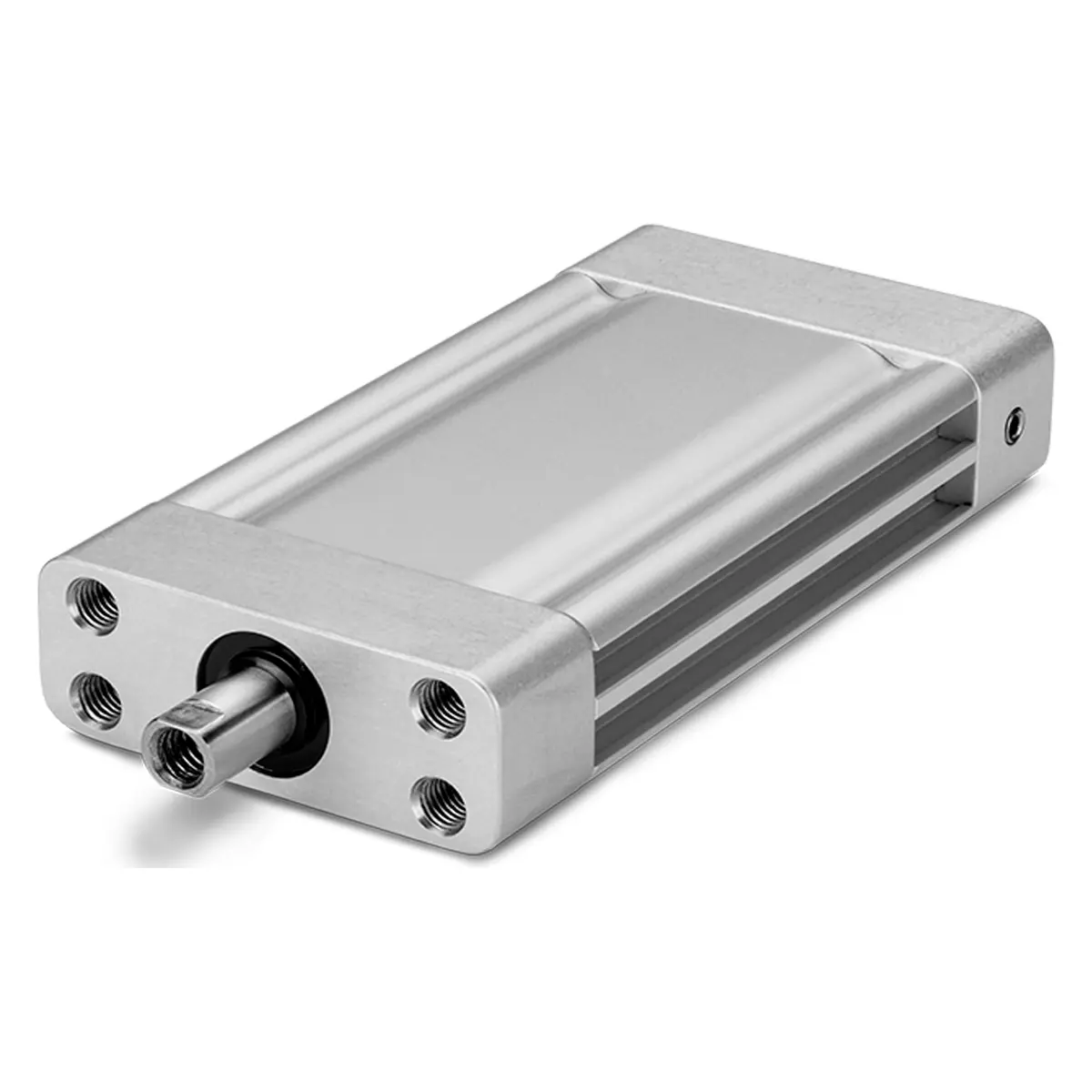

OVLPRO® Low Profile Rod Cylinder, 44mm Bore, Female Threaded Rod, Side Ported, 5.50 in. Stroke.

Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.

Cylinder Type Rod
Cylinder Style Oval Low Profile
Actuation Double
Bore Diameter (mm) 44
Stroke Length (in) 5.5
Body Construction Anodized Aluminum
Rod Diameter (in) 0.625
Rod Type Imperial Single
Rod Thread Female Fine
Rod Thread 3/8-24 UNF-2B
Rod Material Hard Chrome Plated Steel
Rod Anti-Rotation Yes
Mounting Style Multi
Seal Material Buna-N
Rod Seal PolyPak® Molythane® w/Wiper
Rod Bearing Bronze Oil Filled
Port Thread Imperial
Port location Side, Singe End
Sensor Magnet Yes
Brand OVLPRO
Cushions Fixed
Made in USA Yes
Port Size 1/4-18 NPTF
Pressure Maximum (psi) 200
$273.87
