Model: OVP44FR

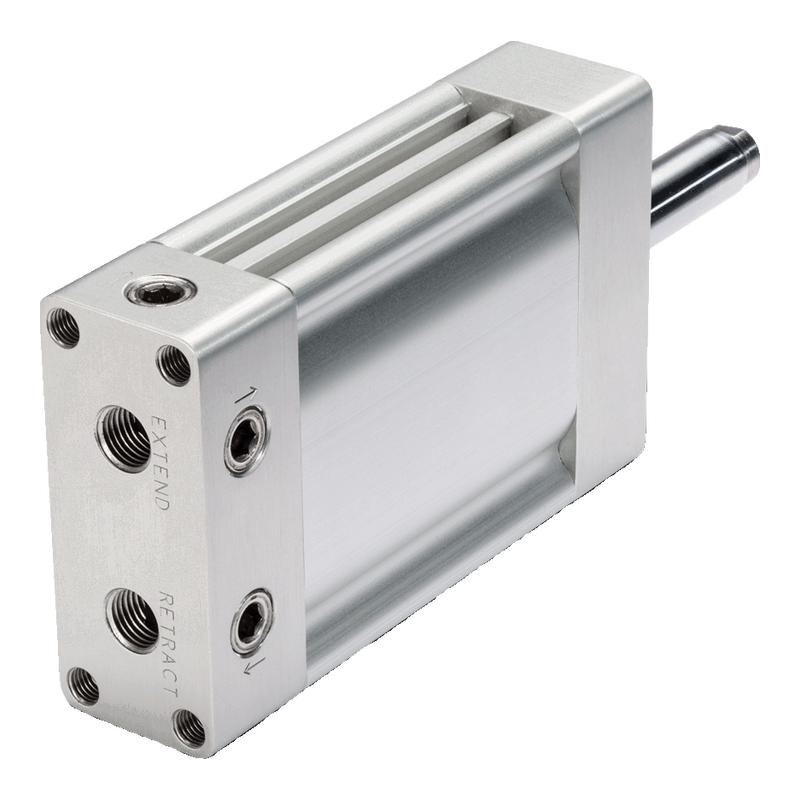

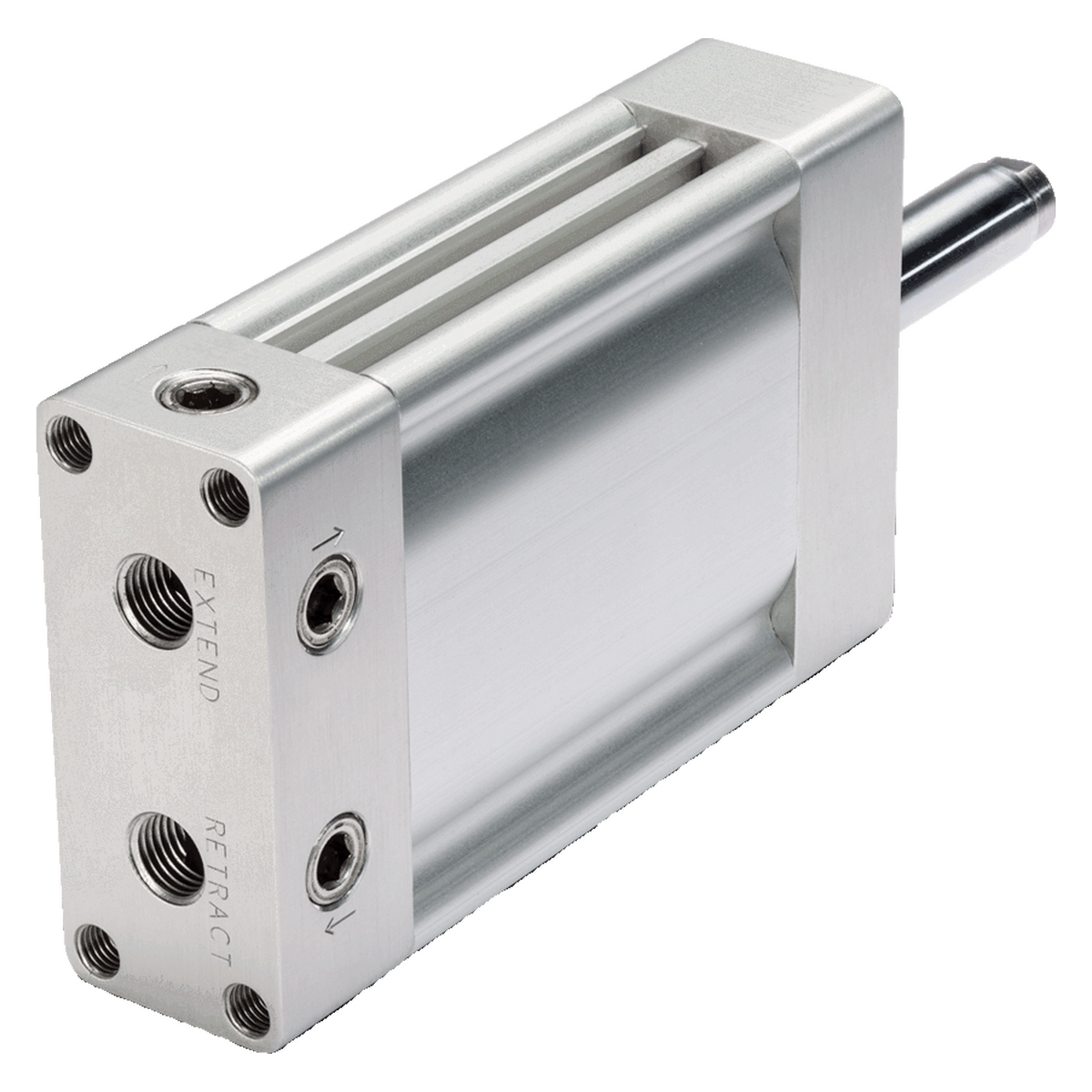

OVLPRO® Low Profile Rod Cylinder, 44mm Bore, Female Threaded Rod, Rear Ported, 2.50 in. Stroke.

Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.


Bore Size 44mm (1.75")
Extend/Retract Force, Lb. 241/210 Lbs. @ 100 PSI
Max. Pressure, PSI 200 PSI
Piston Magnet Standard
Port Location AB Rear Ported
Port Size 1/4-18 NPTF
Rod Dia. 5/8" Hard Chrome Plated
Rod Thread Size 3/8-24 UNF-2B
Rod Type Female Thread
Stroke (in.) 2.50
Click image to enlarge
