Model: PSAN025RSB

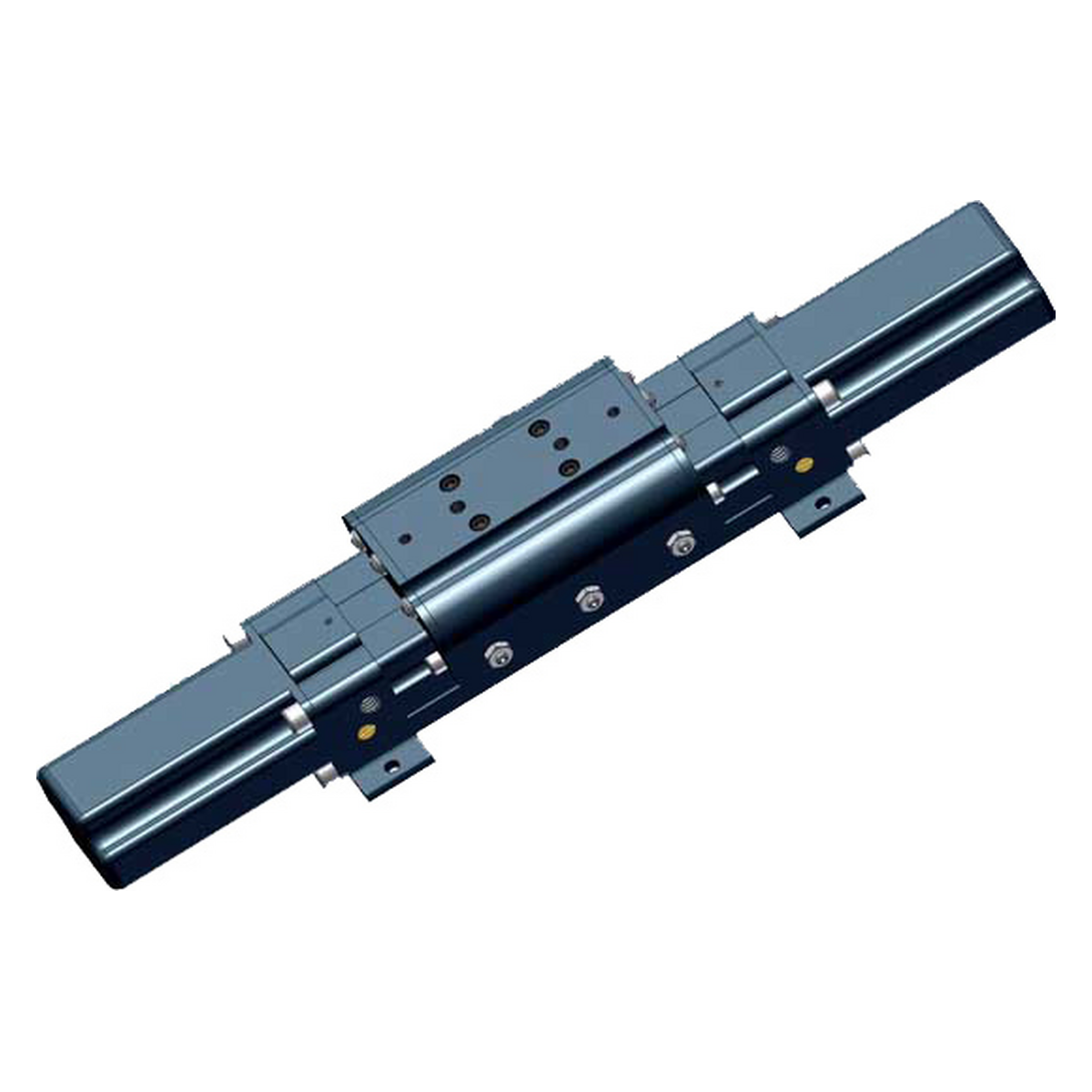

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.0 in. (25mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Integral foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability


Model # PSAN025RSB
Bore, in. 1.0
Eff. Area, in.sq .60
Force@100 PSI, lbs. 60
Load, lbs. 60
M Long. Load, in. lbs. 100
Max. Stroke Length, in. 72
Ms Radial Load, in. lbs. 55
Mv Axial Load, in. lbs. 30
Option(s) Switches N.C.
