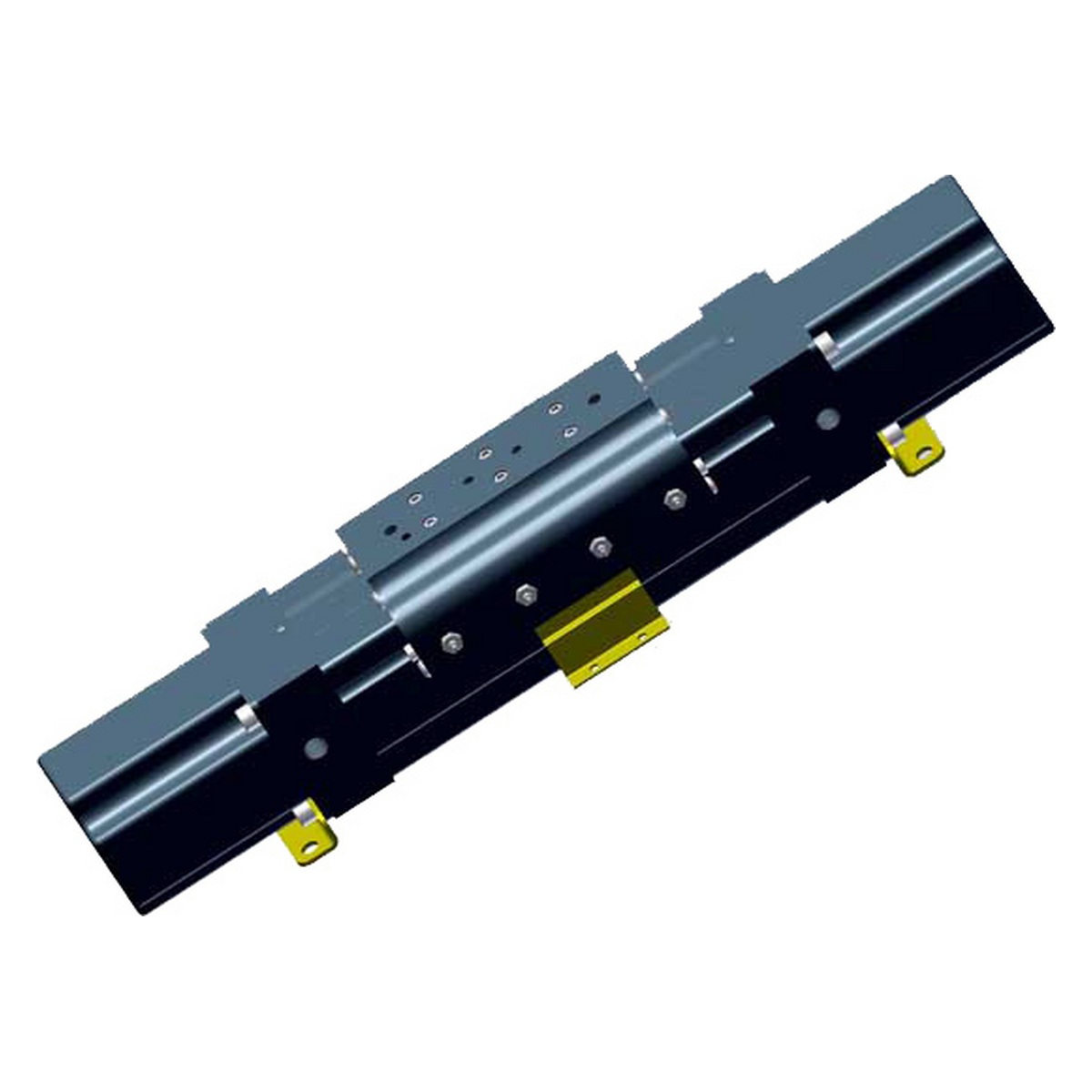

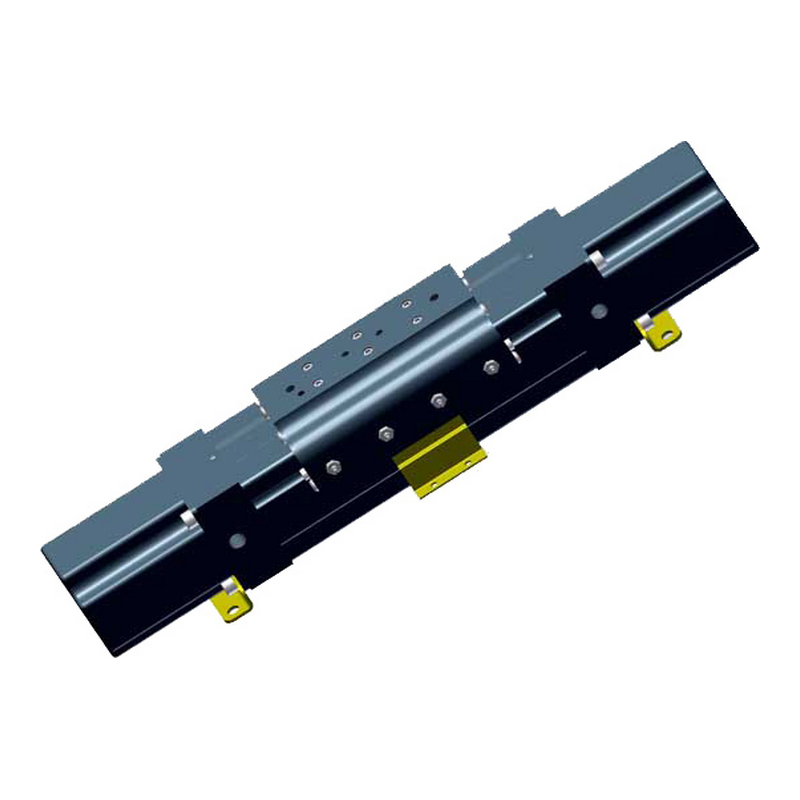

Model: PSA044TS

pneU-SA® Rodless Cylinders, double acting with power stroke in both directions, 1.75 in. (44mm) bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Foot mounts
  • Nylatron® GS guide bearings - ideal for improved load bearing capability


Model # PSA044TS
Approx. Weight Base 9 lbs. + .55 lbs./in./Stk
Bore, in. 1.75
Eff. Area, in.sq 2.40
Force@100 PSI, lbs. 240
Load, lbs. 180
M Long. Load, in. lbs. 500
Max. Stroke Length, in. 158
Ms Radial Load, in. lbs. 275
Mv Axial Load, in. lbs. 200
Option(s) Tube Supports
Click image to enlarge
