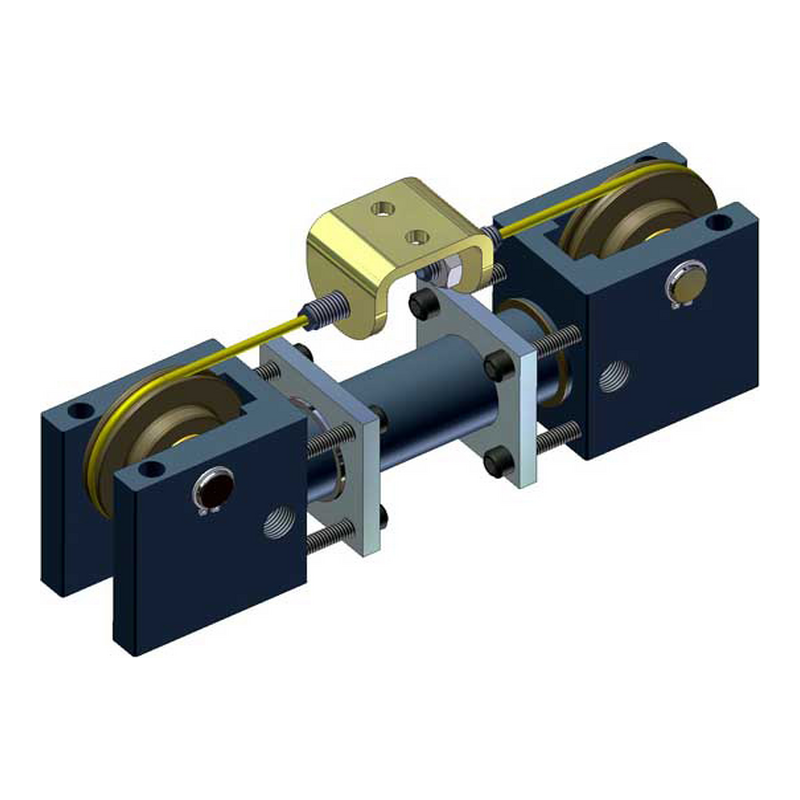

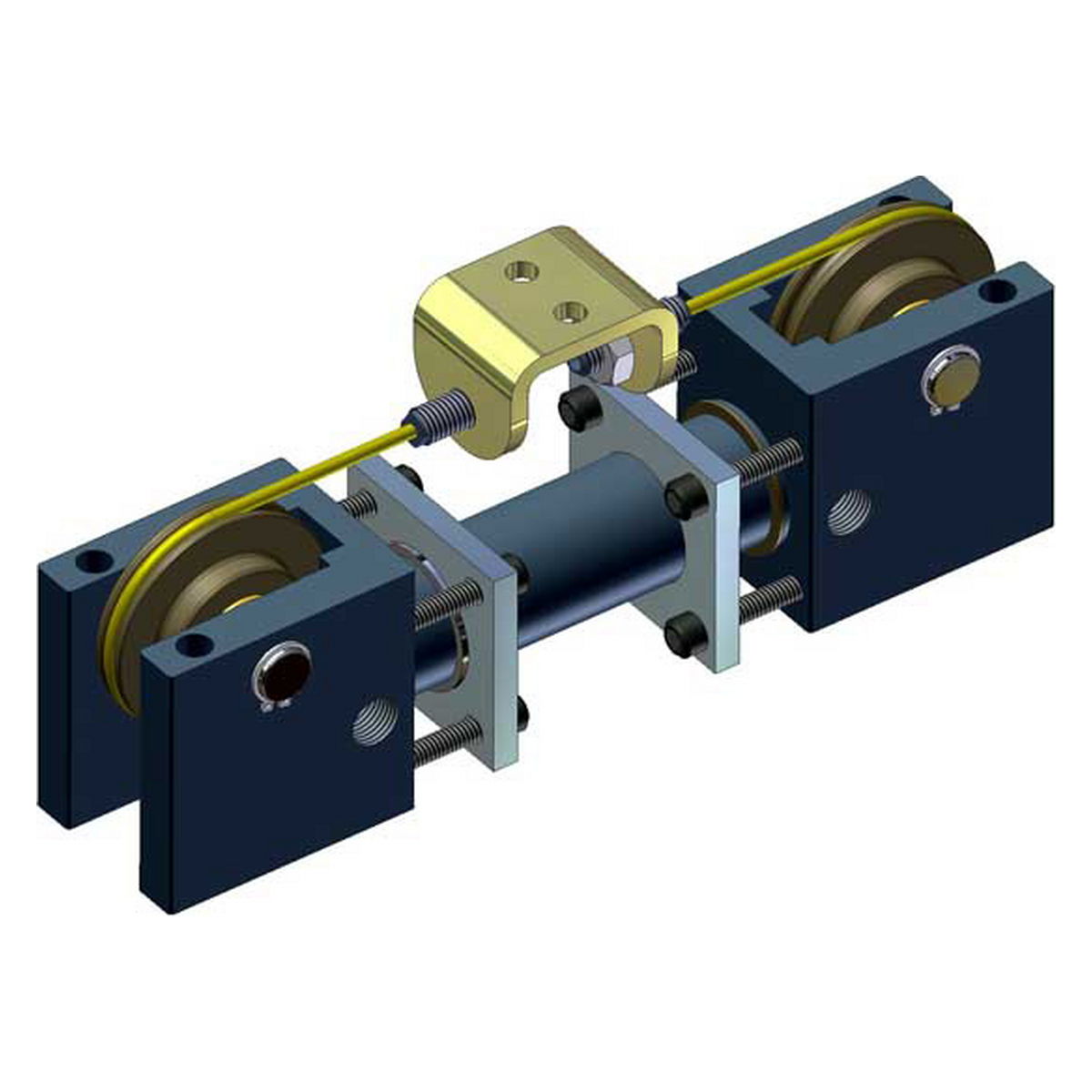

1070-0000
Model: 1070
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Fixed orifice cushions
- Mounting interchangeable with T-O-M Brand Model CC07
| Cylinder Type | Rodless |
| Cylinder Style | Cable |
| Actuation | Double |
| Bore Diameter (in) | 0.75 |
| Body Construction | Anodized Aluminum |
| Guide | No |
| Mounting Style | End |
| Seal Material | Buna-N |
| Port Thread | Imperial |
| Port location | Bottom |
| Sensor Magnet | No |
| Sensors | No |
| Brand | ULTRICYL |
| Cushions | Fixed |
| Made in USA | Yes |
| Port Size | 1/8-27 NPTF |
| Pressure Maximum (psi) | 100 |
