Model: 1301

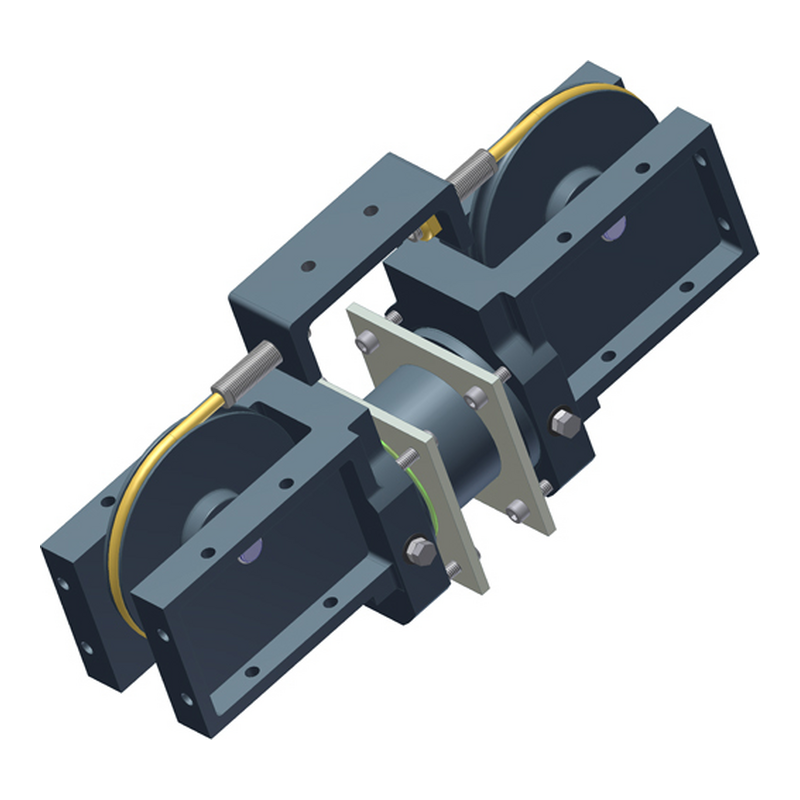

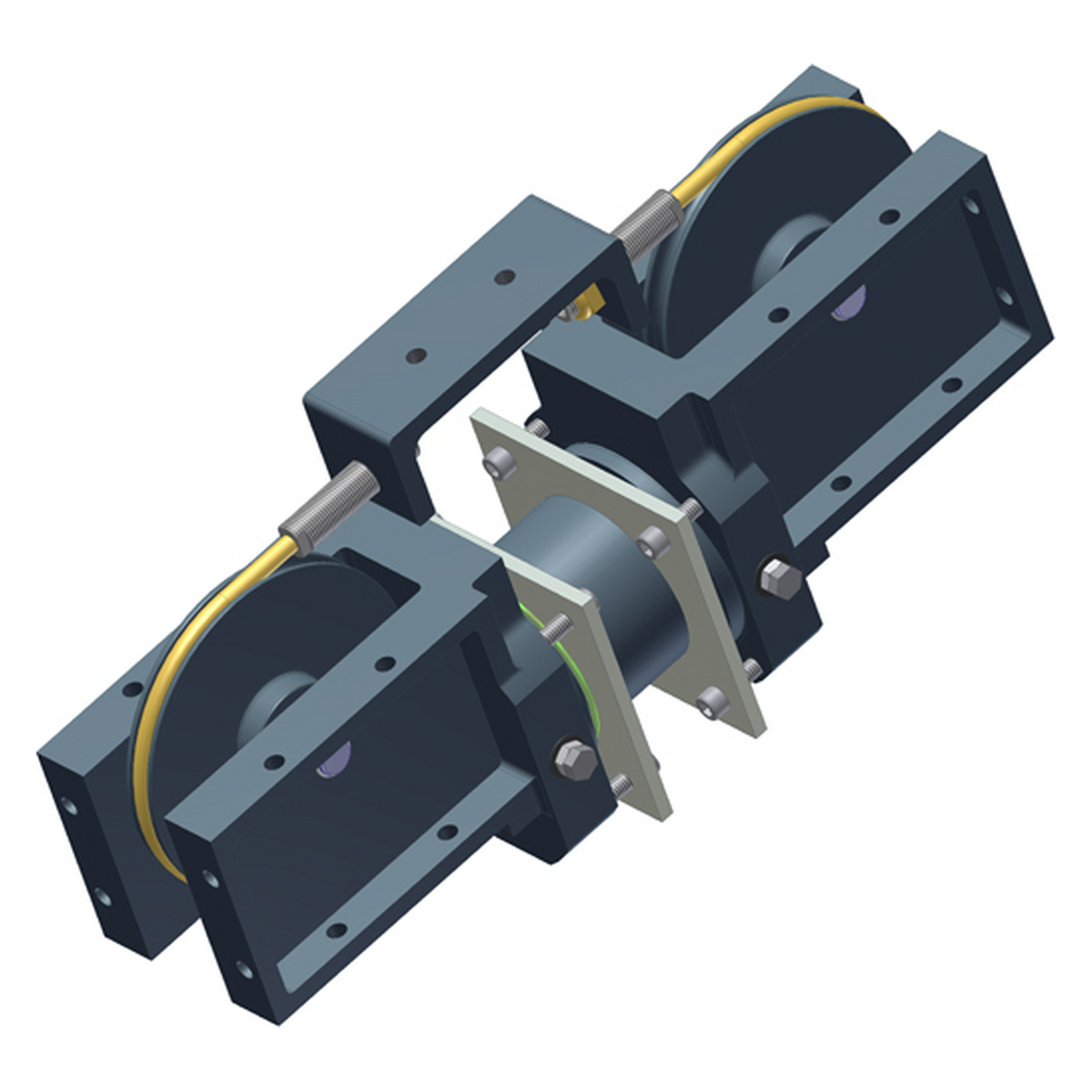

Double Acting Cable Cylinder with power stroke in both directions, 3.0 inch bore.

  • Maximum pressure: 100 PSI
  • Operating temperature range: 20º to 140º F.
  • Adjustable cushions
  • Mounting interchangeable with T-O-M Brand Model CC30


Model # 1301
Bore, in. 3.0
Eff. Area, in.sq 6.99
Force@100 PSI, lbs. 699
Option(s) None
