1401-0000
Model: 1401

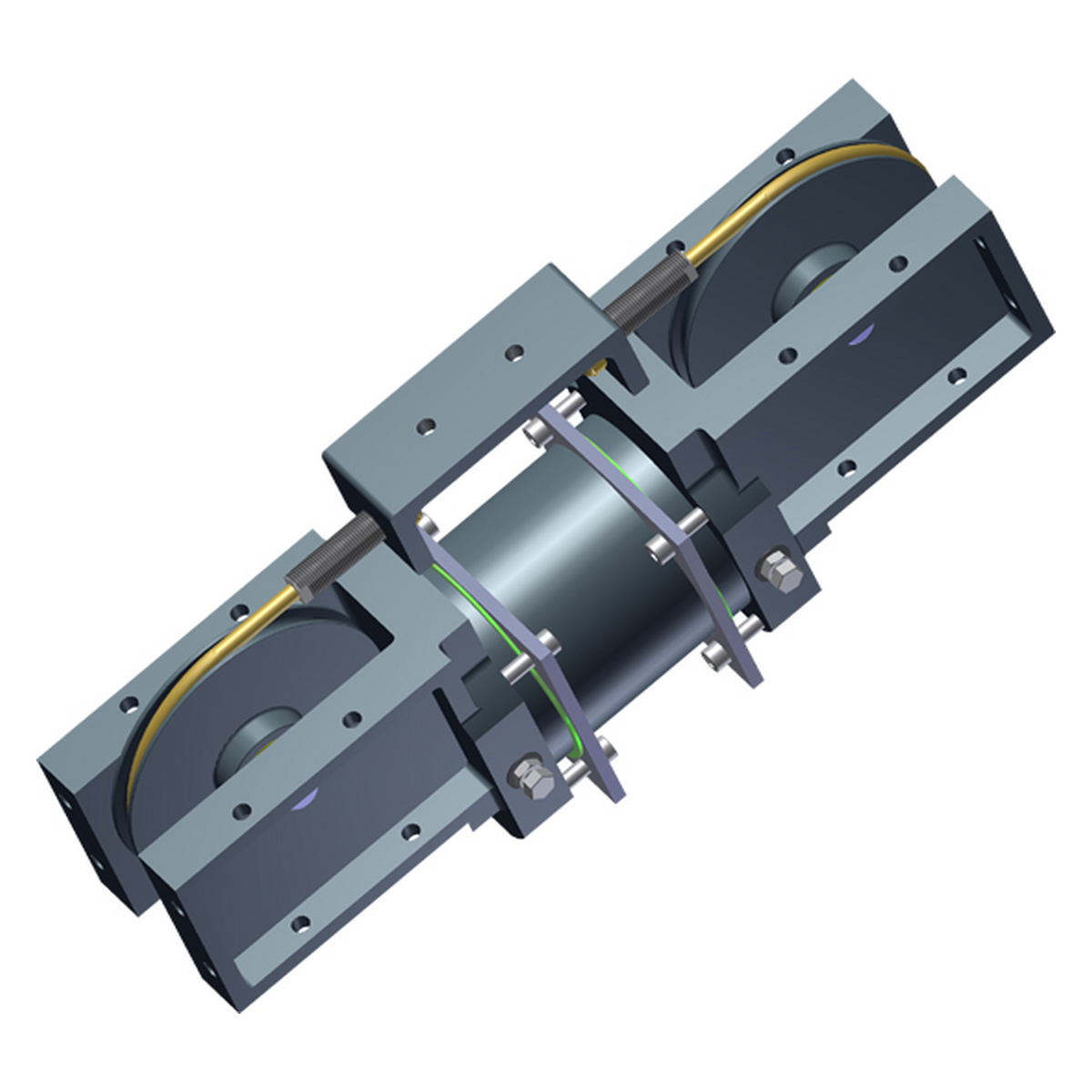

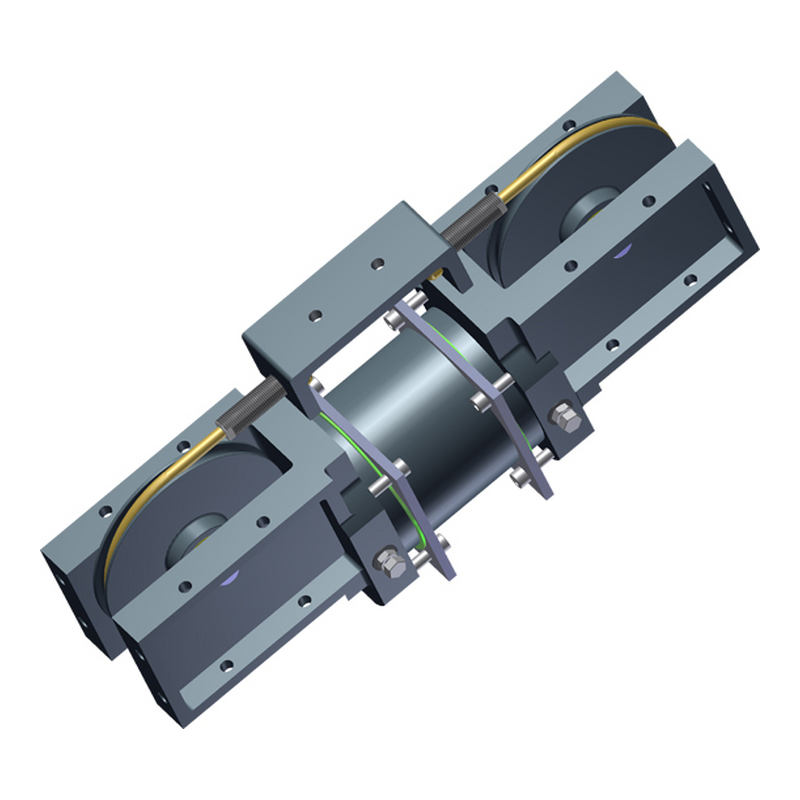

Double Acting Cable Cylinder with power stroke in both directions, 4.0 inch bore.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- Mounting interchangeable with T-O-M Brand Model CC40
- Standard/base model good for strokes up to 84 inches. Strokes longer than 84 inches and up to 282 inches require one or two automatic tensioner units depending upon the application, models 1401T or 1401T2, respectively. Consult with W.C. Branham customer service.
| Cylinder Type | Rodless |
| Cylinder Style | Cable |
| Actuation | Double |
| Bore Diameter (in) | 4 |
| Body Construction | Anodized Aluminum |
| Guide | No |
| Mounting Style | End |
| Seal Material | Buna-N |
| Port Thread | Imperial |
| Port location | Bottom |
| Sensor Magnet | No |
| Sensors | No |
| Brand | ULTRICYL |
| Cushions | Adjustable |
| Made in USA | Yes |
| Port Size | 1/2 NPTF |
| Pressure Maximum (psi) | 100 |
